I/O HUB 7IN1 USB-C/100W CSV-1595 CLUB3D
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $40
-
DHL Courier delivery
DHL courier will deliver to the specified address
1-2 Days
From $40
161.46 €
Neturime
Neturime
Description

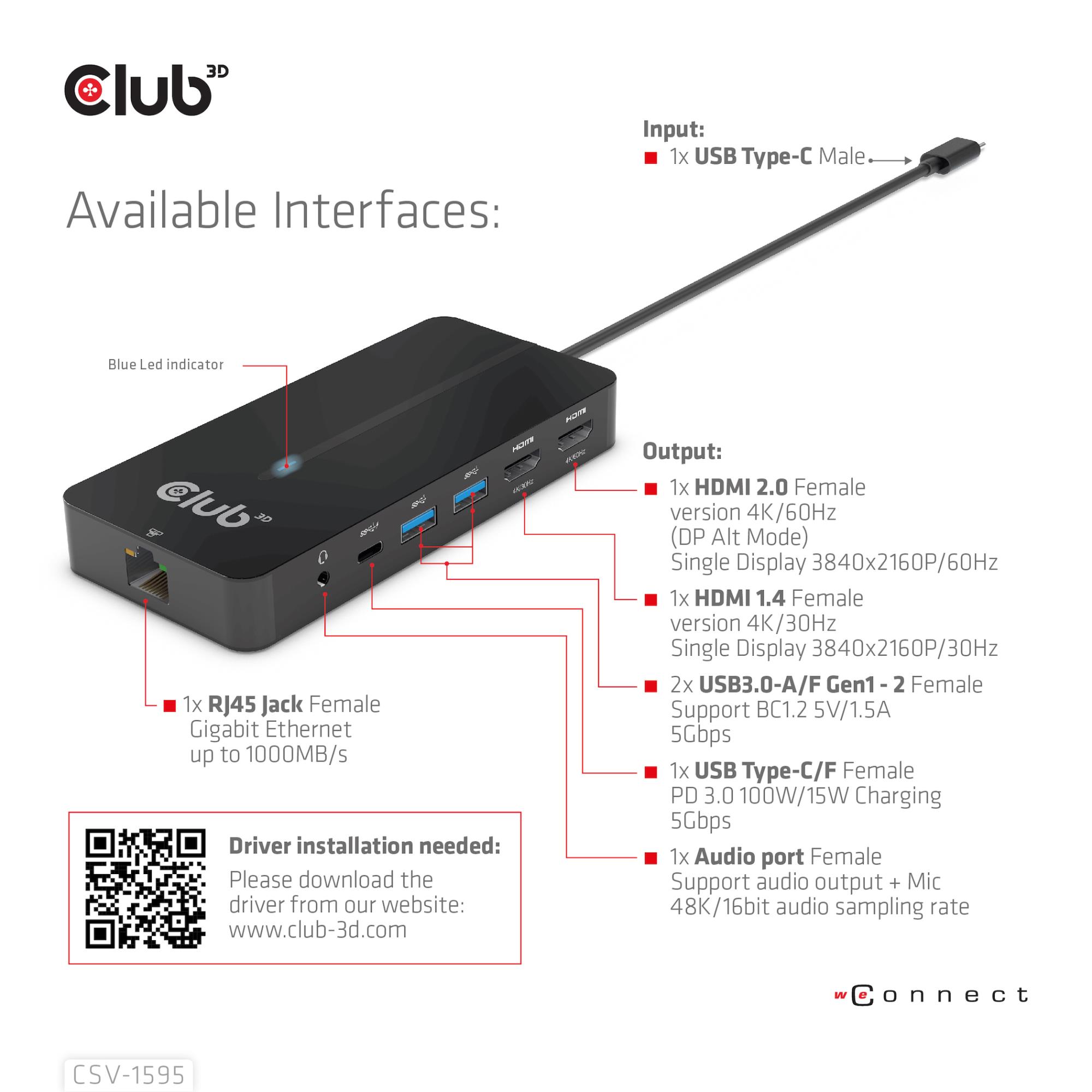

Hub interfaces
3.5mm/HDMI/RJ-45/USB 3.2 Gen 1 (3.1 Gen 1) Type-A/USB 3.2 Gen 1 (3.1 Gen 1) Type-C

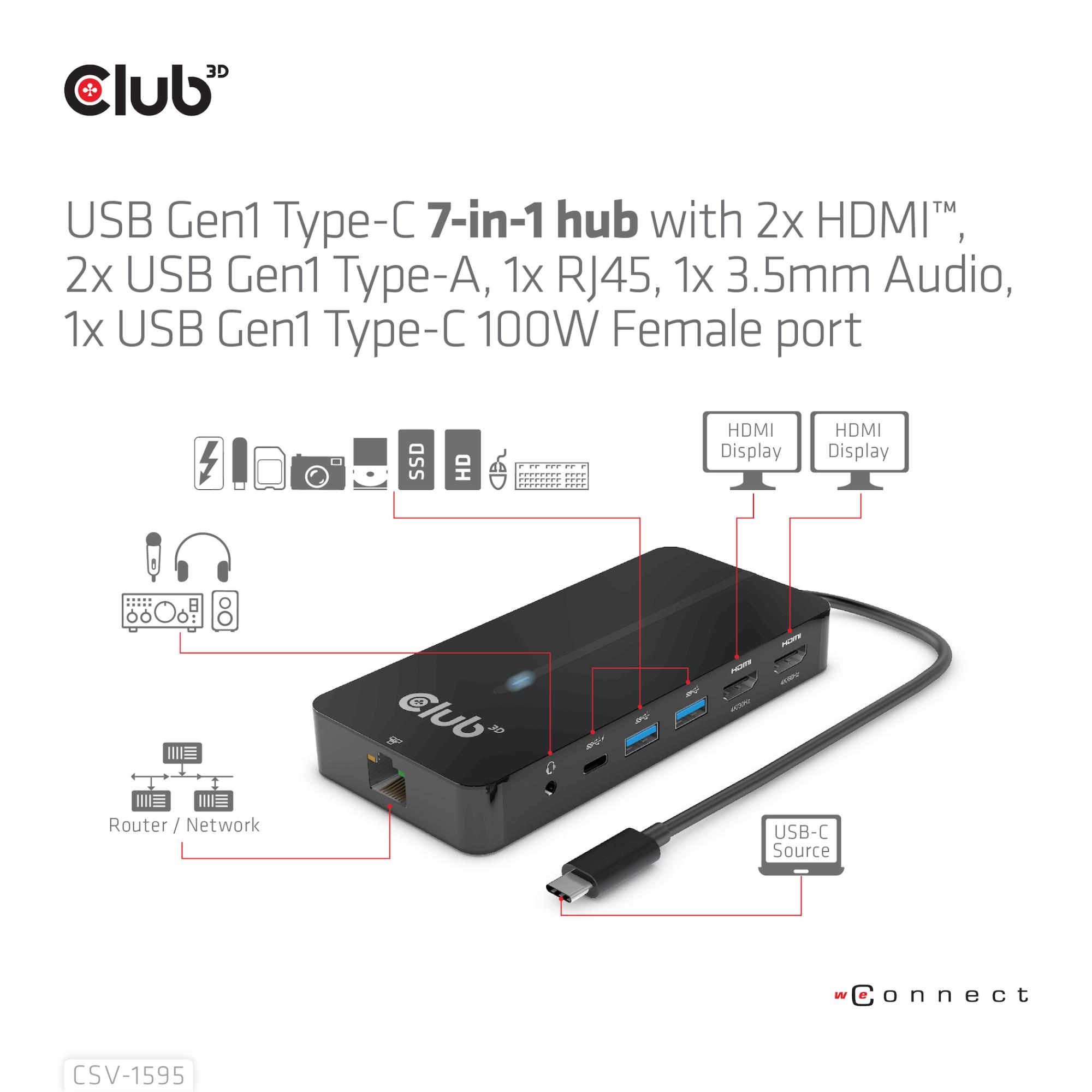

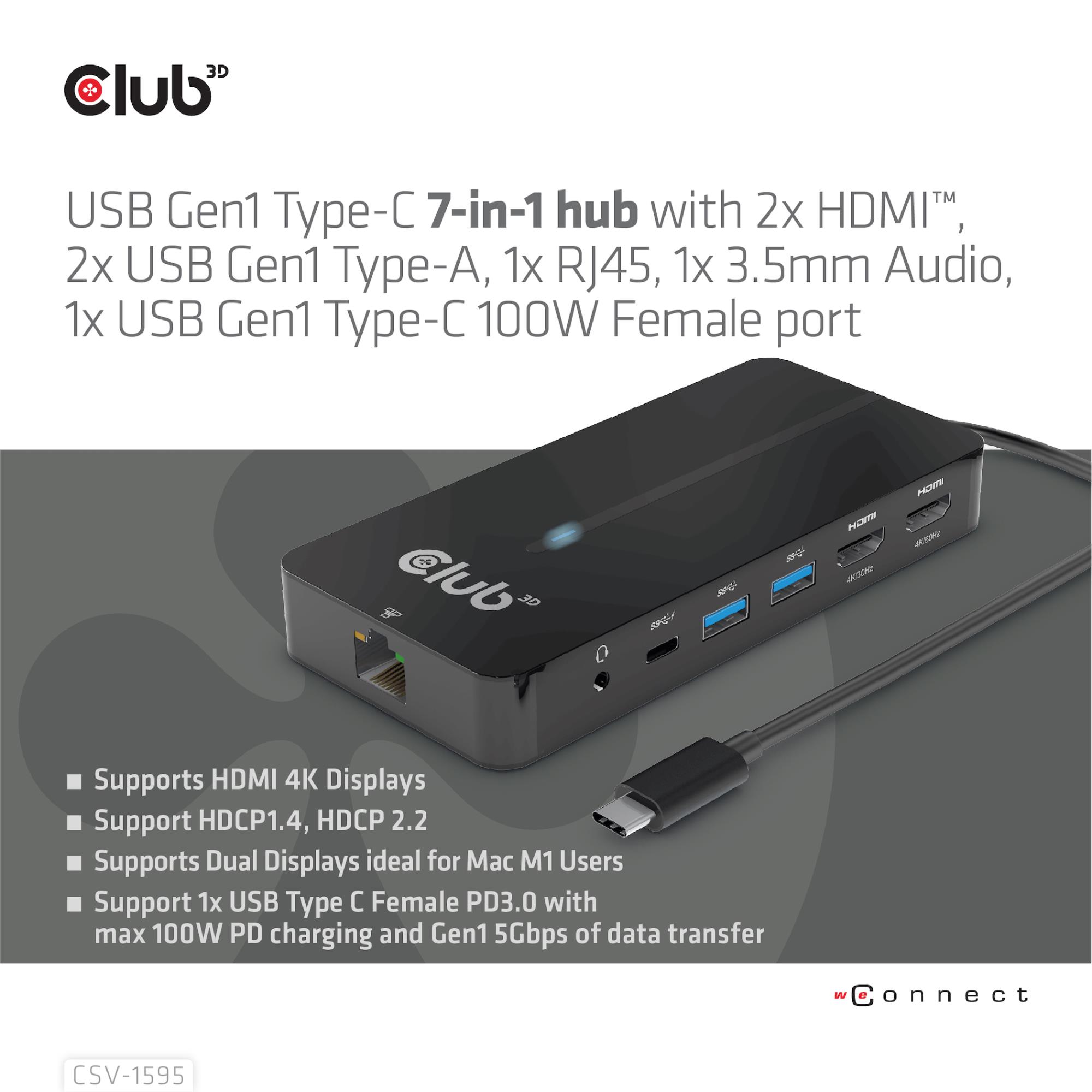

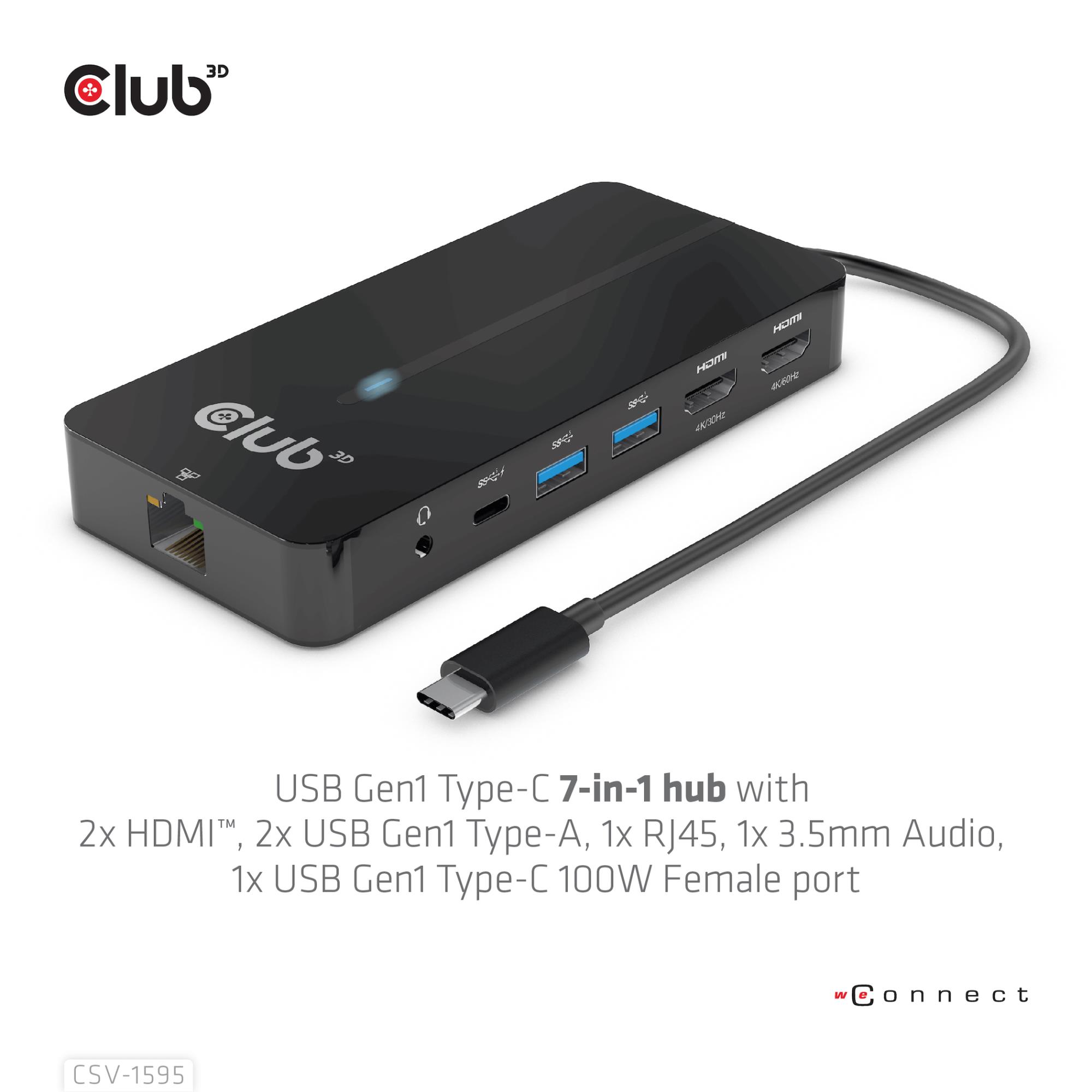

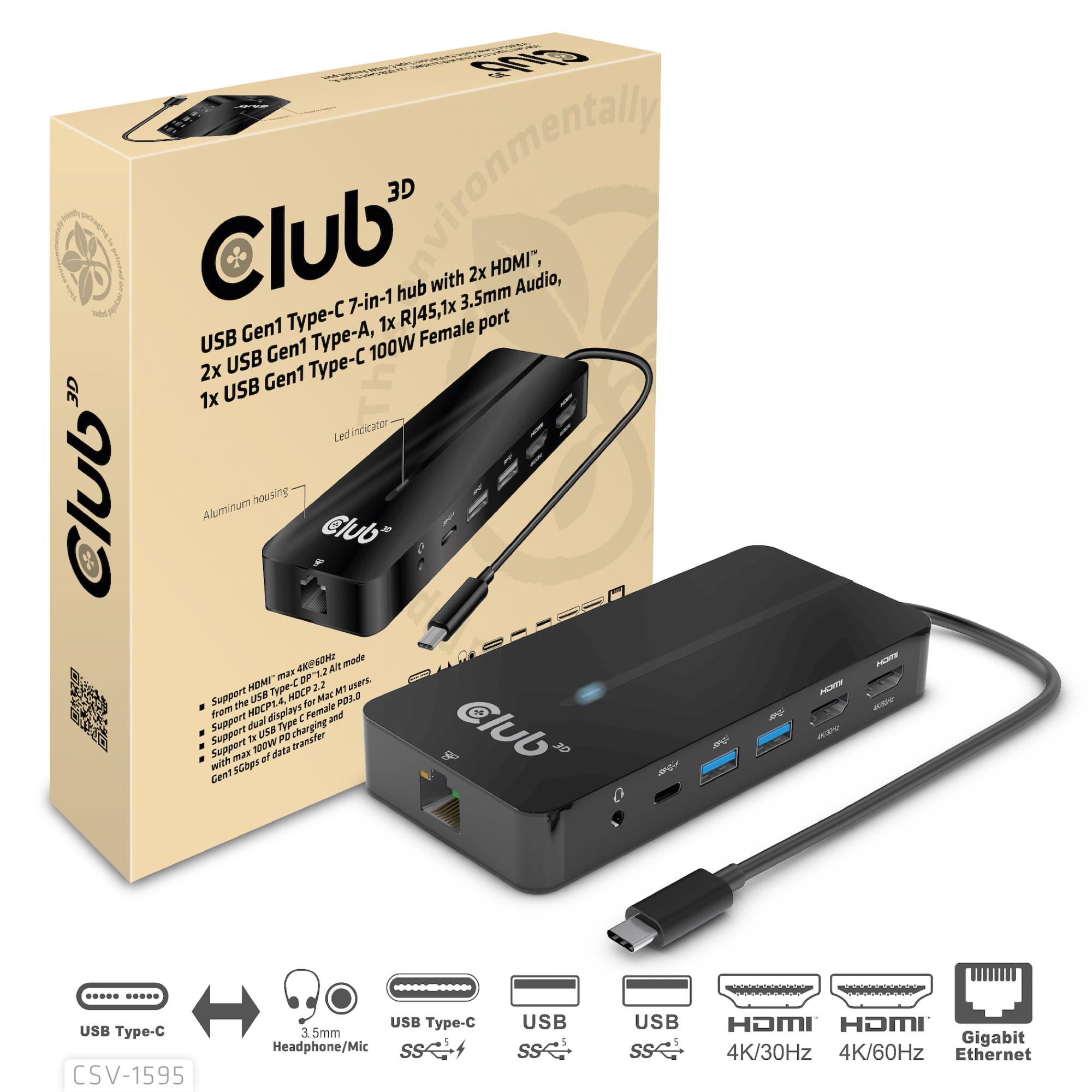

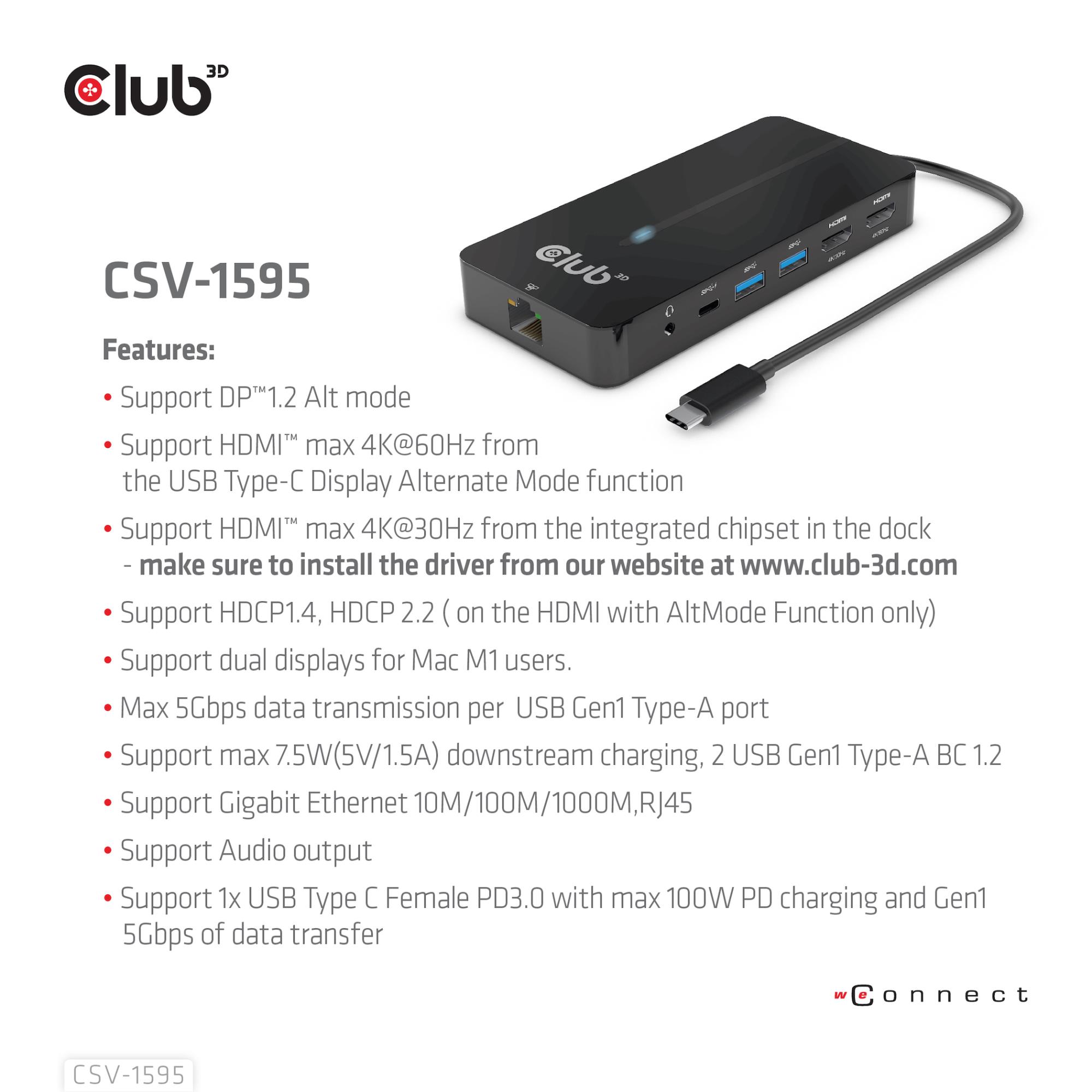

The Club 3D CSV-1595 USB Gen1 Type-C 7-in-1 hub with with 2x HDMI™, 2x USB Gen1 Type-A, 1x RJ45, 1x 3.5mm Audio, 1x USB Gen1 Type-C 100W Female port, provides a very advanced, efficient solution to extend a single USB Gen1 Type-C port to multiple ports. It integrates video, data and power ports that allows to connect 2 displays simultaneously for enjoying videos on a larger screen, connect multiple USB Gen1 devices for data transmission up to 5Gbps, connect a Gigabit Ethernet source for getting your PC connected to super high speed network, or connect to headset to enjoy fantastic music. It also provides PD charging for support up to max. 100W PD charging. This is for operating this device and charge the host simultaneously. It can work on all DP™1.4 Alt mode supported USB Gen1 Type-C hosts.
Specifikacijos
| Vendor Homepage | https://www.club-3d.com/en/detail/2592/usb_gen1_type_c_7_in_1_hub_with_2x_hdmi_2x_usb_gen1_type_a_1x_rj45_1x_3.5mm_audio_1x_usb_gen1_type_c_100w_female_port/ |
|---|---|
| Category Code | NBK |
| Unit Box Height | 0.21 |
| Unit Box Length | 0.21 |
| Unit Box Width | 0.035 |
| Combo headphone/mic port | Yes |
| DC-in jack | No |
| HDCP | Yes |
| HDCP version | 2.2 |
| HDMI ports quantity | 2 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Card reader integrated | No |
| Certification | ROHS, FCC, CE EMI |
| HD type | 4K Ultra HD |
| Maximum refresh rate | 60 Hz |
| Number of displays supported | 2 |
| Plug and Play | Yes |
| Product colour | Black |
| Output current | 1.5 A |
| Output voltage | 5 V |
| Power consumption (max) | 7.5 W |
| Wireless charging | No |
| Mac operating systems supported | Yes |
| Windows operating systems supported | Yes |

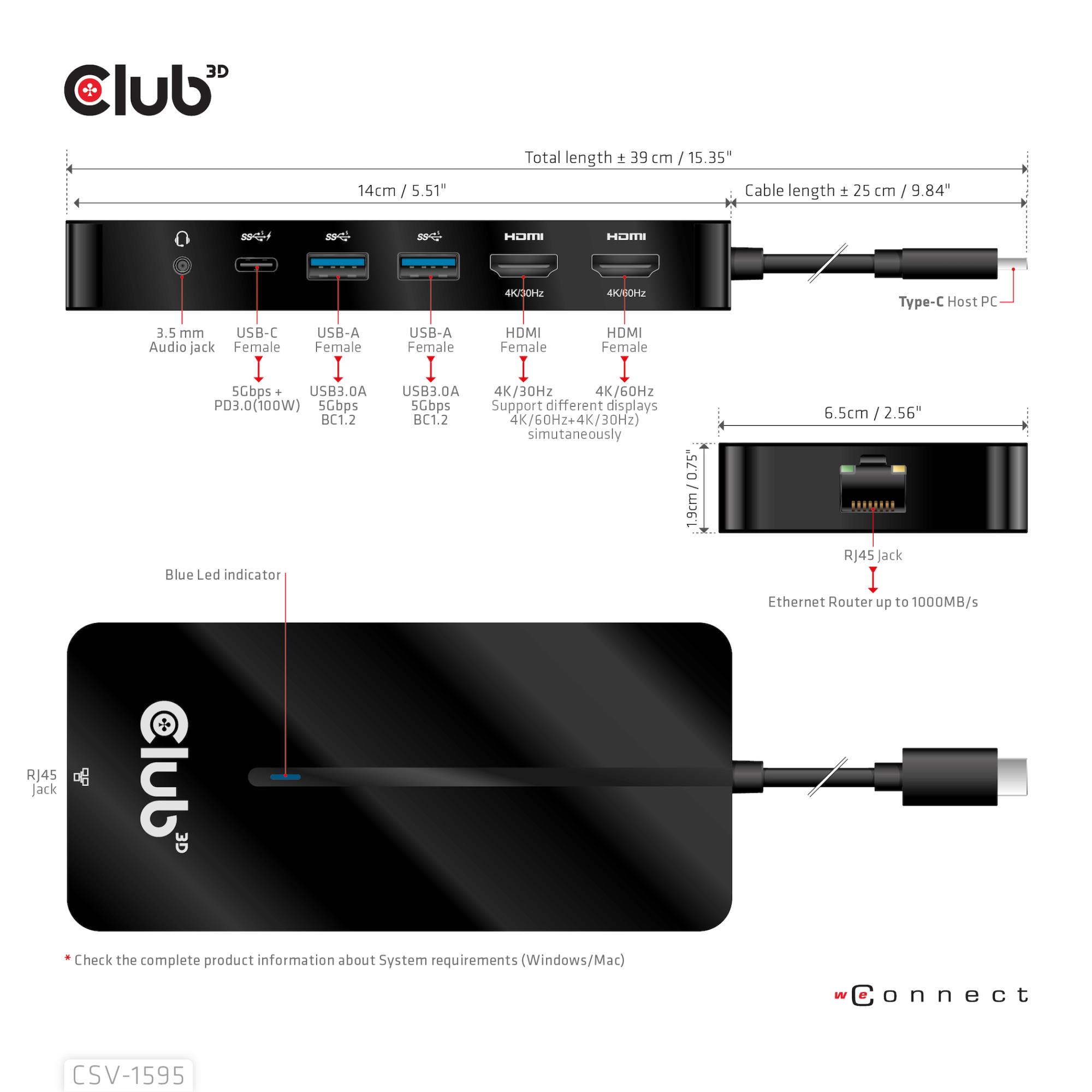

| Depth | 65 mm |
| Height | 19 mm |
| Weight | 210 g |
| Width | 140 mm |
| Package depth | 35 mm |
| Package height | 210 mm |
| Package weight | 286 g |
| Package width | 210 mm |
| Quantity per pack | 1 pc(s) |
| Paper/cardboard packaging weight | 70 g |
| Plastic packaging weight | 6 g |
| Total paper/cardboard packaging weight | 140 g |
| Total plastic packaging weight | 12 g |
| Harmonized System (HS) code | 8473 3020 |

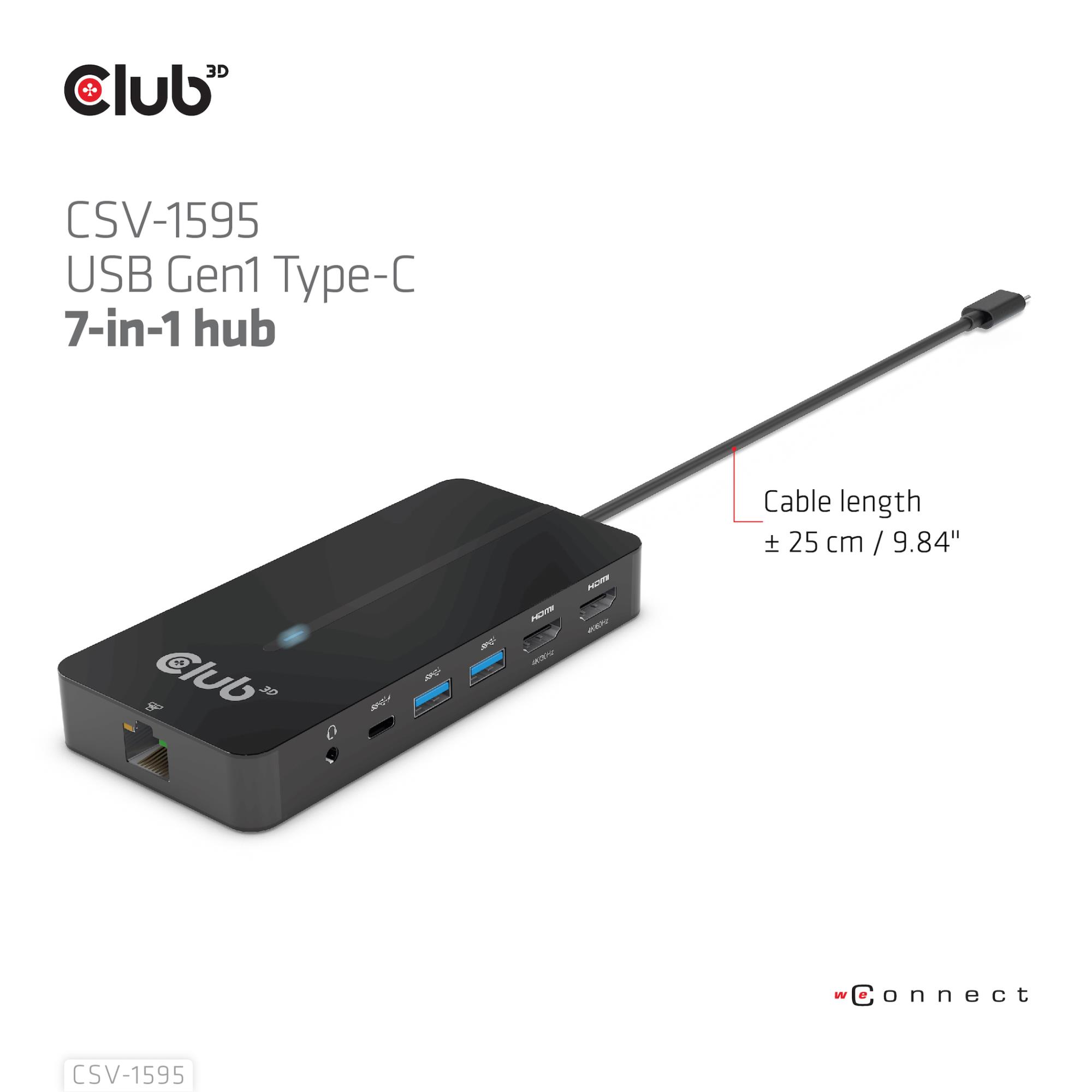

| Cable length | 0.25 m |
| Cable type | Round cable |
| Model | CSV-1595 |
| Units per Pallet | 0 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.001543 cubm |
| Unit Calculated Weight | 0.28 kg |
