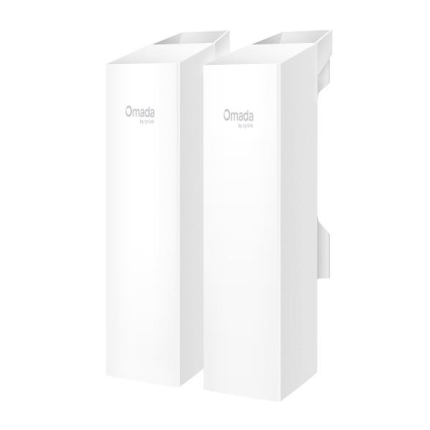

WRL ACCESS POINT 867MBPS OMADA/EAP211-BRIDGE KIT TP-LINK

Produkto kodas: 1416854

Pick up from the Woodmart Store

To pick up today

Courier delivery

Our courier will deliver to the specified address

2-3 Days

From $40

DHL Courier delivery

DHL courier will deliver to the specified address

1-2 Days

From $40

136.28 €

Neturime

Description

Networking standards

IEEE 802.11a/IEEE 802.11ac/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n

EAP211-Bridge KIT
Omada 5GHz 867Mbps Indoor/Outdoor Wireless Bridge

– 802.11ac, up to 867 Mbps on 5 GHz
– Up to 0.62 mi (1 km) Long-Range Transmission
– Auto-Pairing and Multi-Bridge Auto-Pairing
– App-Guided Alignment and Speed Testing

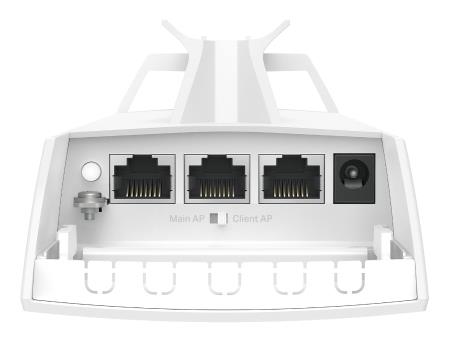

– 3× Gigabit Ethernet Ports
– 802.3af PoE & DC Power Supply & Passive PoE
– IP65 Weatherproof and Operating Range of -40 °C to +70 °C.
– Remote Monitoring & Management

Up to 0.62 mi (1 km) Transmission Distance
Equipped with Omada SmartBridging: Our unique design for the most effortless and easy bridge setup ever
Plug-and-Play with Preconfigured Kit: Preconfigured for instant auto-pairing, the bridges deliver instant connectivity right out of the box. Simply power on and go-ideal for quick deployments
Unique Design for Multi-Bridge Auto-Pairing: Effortlessly connect multiple bridges with PtMP Auto-Pairing. Simply dial the role switch and press the pair button-no portal login needed. Supports up to 1-to-4 multi-bridge connections
App-Guided Alignment: Visualized App-Guided Alignment for Long-Distance Setups and Instant Speed Testing for Installation Verification
Flexible Power Supply: 802.3af PoE, 24V Passive PoE, and 12V DC (compatible with TP-Link solar power supply system)
3× Gigabit Ethernet Ports: Connects more cameras and devices without an extra switch△
Ideal for Outdoor Scenarios: IP65 weatherproof enclosure and operating range of -40 °C to +70 °C
Remote Monitoring & Management: Standalone mode or Omada SDN mode for remote centralized management via Web UI or App

TP-Link Omada 5GHz 867Mbps Indoor/Outdoor Wireless Bridge. Maximum data transfer rate: 867 Mbit/s, Maximum transfer distance: 1000 m. Antenna design: Internal, Antenna type: 2×2, Antenna gain level (max): 7 dBi. Wi-Fi band: Single-band (5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 867 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n. Connectivity technology: Wired & Wireless

Specifikacijos

Vendor Homepage	https://www.omadanetworks.com/uk/business-networking/omada-wifi-wireless-bridge/eap211-bridge-kit/v3.20/#highlights
Category Code	BRE
Unit Box Height	0.235
Unit Box Length	0.27
Unit Box Width	0.095
Maximum data transfer rate	867 Mbit/s
Maximum transfer distance	1000 m
Antenna design	Internal
Antenna gain level (max)	7 dBi
Antenna type	2×2
Frequency band	5 GHz
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi	Yes
Wi-Fi band	Single-band (5 GHz)
WLAN data transfer rate (max)	867 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN	Yes
Ethernet LAN data rates	10/100/1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Connectivity technology	Wired & Wireless
DC-in jack	Yes
Ethernet LAN (RJ-45) ports	3
MAC address filtering	Yes
Security algorithms	SNMP/SNMPv2/SNMPv3/SSH
Web-based management	Yes
International Protection (IP) code	IP65
LED indicators	Power
Mounting type	Pole
Product colour	White
Product type	Network bridge
Quality of Service (QoS) support	Yes
Reset button	Yes
DC input voltage	12 V
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) voltage	24 V
Power source type	DC,PoE
Operating relative humidity (H-H)	10 – 90 %
Operating temperature (T-T)	-40 – 70 °C
Storage relative humidity (H-H)	5 – 90 %
Storage temperature (T-T)	-40 – 70 °C
Certification	CE, FCC, RoHS
Depth	79 mm
Height	60 mm
Width	224 mm
Cables included	AC
PoE+ Injector(s)	Yes
Units per Pallet	0
Units per Shipping Box	8
Unit Calculated Volume	0.007718 cubm
Unit Calculated Weight	1.61 kg
