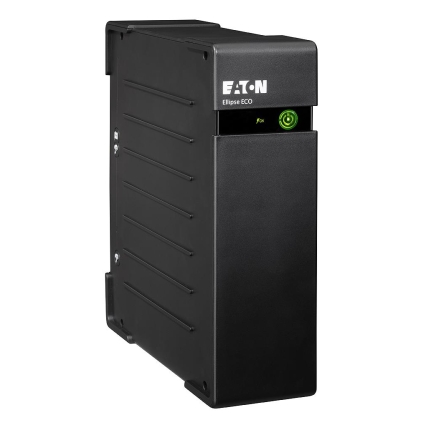

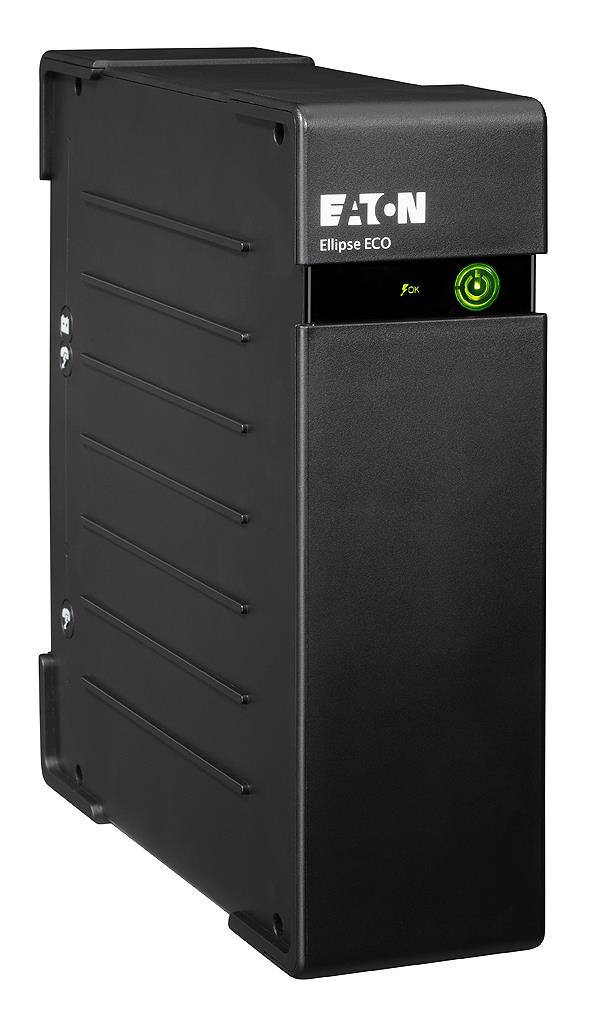

UPS EATON 500 Watts 800 VA EL800USBDIN

Produkto kodas: 1323448

Pick up from the Woodmart Store

To pick up today

Courier delivery

Our courier will deliver to the specified address

2-3 Days

From $40

DHL Courier delivery

DHL courier will deliver to the specified address

1-2 Days

From $40

162.73 €

Neturime

Description

Safety

IEC 62040-1, IEC 60950-1, IEC 62040-2, CB Report, CE mark, IEC 61643-1

The Eaton Ellipse ECO is a slim-line power protection with built-in high performance surge-protection device (compliant with IEC 61643-1 standard). With an efficient electrical design and the EcoControl function (USB models) the Eaton Ellipse ECO helps you make energy savings of up to 25 per cent compared to previous-generation UPSs.

Eaton Ellipse ECO 800 USB DIN. UPS topology: Standby (Offline), Output power capacity: 0.8 kVA, Output power: 500 W. AC outlet types: Type F, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at half load: 11 min. Form factor: Tower, Product colour: Black, Rack capacity: 2U. Safety: IEC 62040-1, IEC 60950-1, IEC 62040-2, CB Report, CE mark, IEC 61643-1

Specifikacijos

Vendor Homepage	https://powerquality.eaton.com/Products-services/Backup-Power-UPS/Ellipse-ECO.aspx?cx=101
Category Code	UPW
Unit Box Height	0.325
Unit Box Length	0.284
Unit Box Width	0.138
Audible alarm modes	Battery replacement
Audible alarm(s)	Yes
Emergency Power Off (EPO)	No
Input frequency	50/60 Hz
Input operation voltage (max)	284 V
Input operation voltage (min)	161 V
Output operation voltage (max)	240 V
Output operation voltage (min)	220 V
Output power	500 W
Output power capacity	0.8 kVA
Surge protection	Yes
Surge protection features	Fax/Modem/Network/Telephone
UPS topology	Standby (Offline)
AC outlet types	Type F
AC outlets quantity	4 AC outlet(s)
Ethernet LAN (RJ-45) ports	1
Modem (RJ-11) ports	1
Power plug	C14 coupler
USB 2.0 ports quantity	1
Automatic battery test	Yes
Battery technology	Sealed Lead Acid (VRLA)
Cold start	Yes
Hot-swap battery	No
Typical backup time at half load	11 min
Form factor	Tower
LED indicators	Battery replacement
Product colour	Black
Rack capacity	2U
Depth	235 mm
Height	263 mm
Weight	4100 g
Width	81 mm
Bundled software	Eaton Intelligent Power
Harmonized System (HS) code	85078000
Compatible operating systems	Windows 7/Vista/XPrnMac OS XrnLinux
Input connection type	Schuko
Mac compatibility	Yes
Nominal input voltage	230 V
Nominal output voltage	220-240 V
Overload protection	Yes
Units per Shipping Box	1
Unit Calculated Volume	0.01274 cubm
Unit Calculated Weight	4.67 kg
