149.44 €
Neturime
Neturime
Description

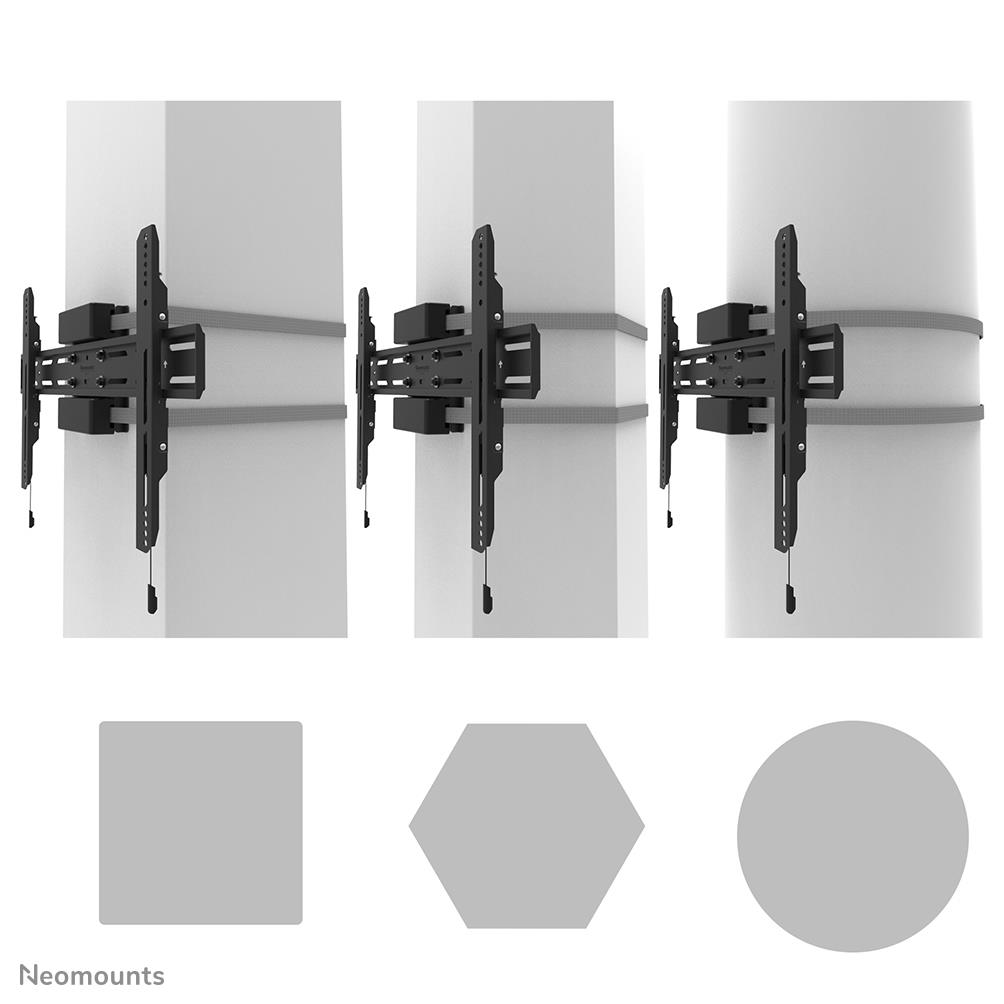

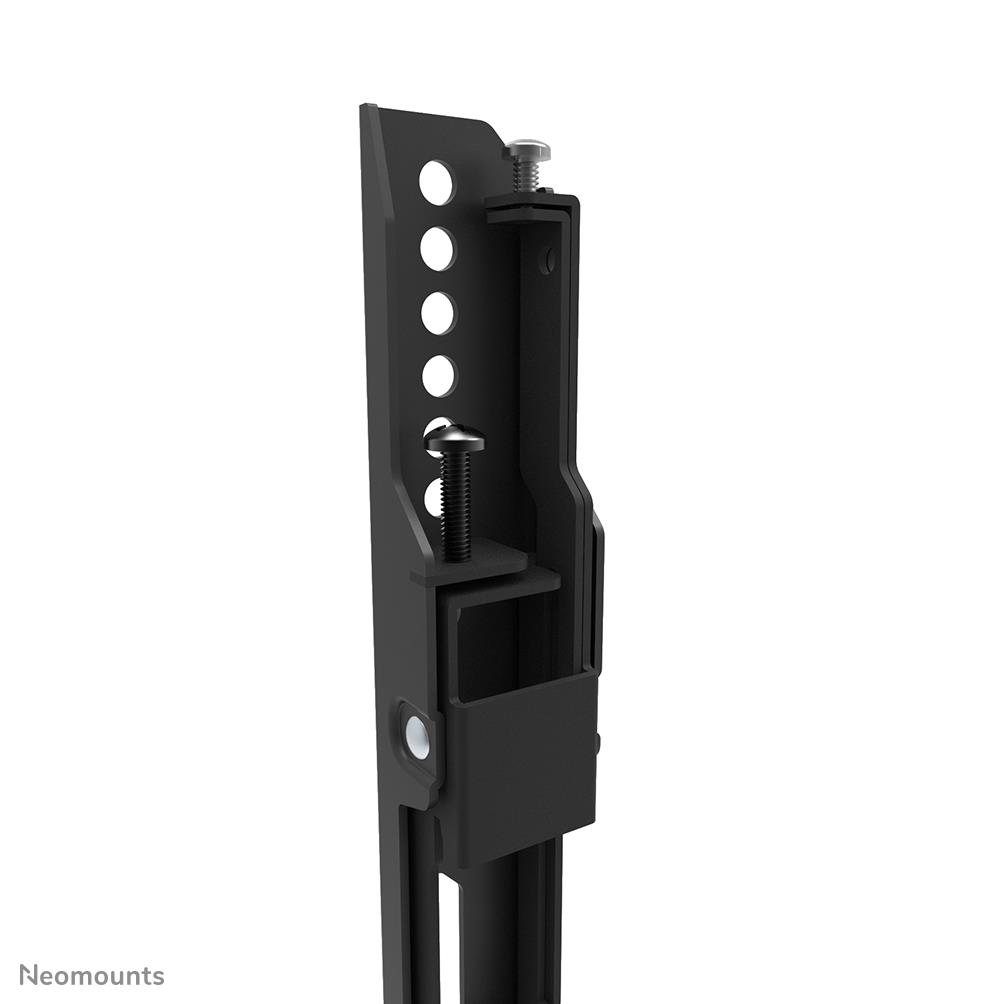

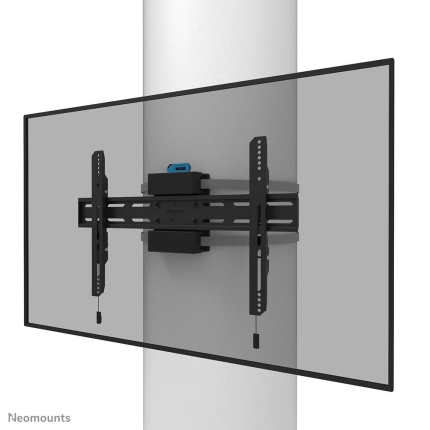

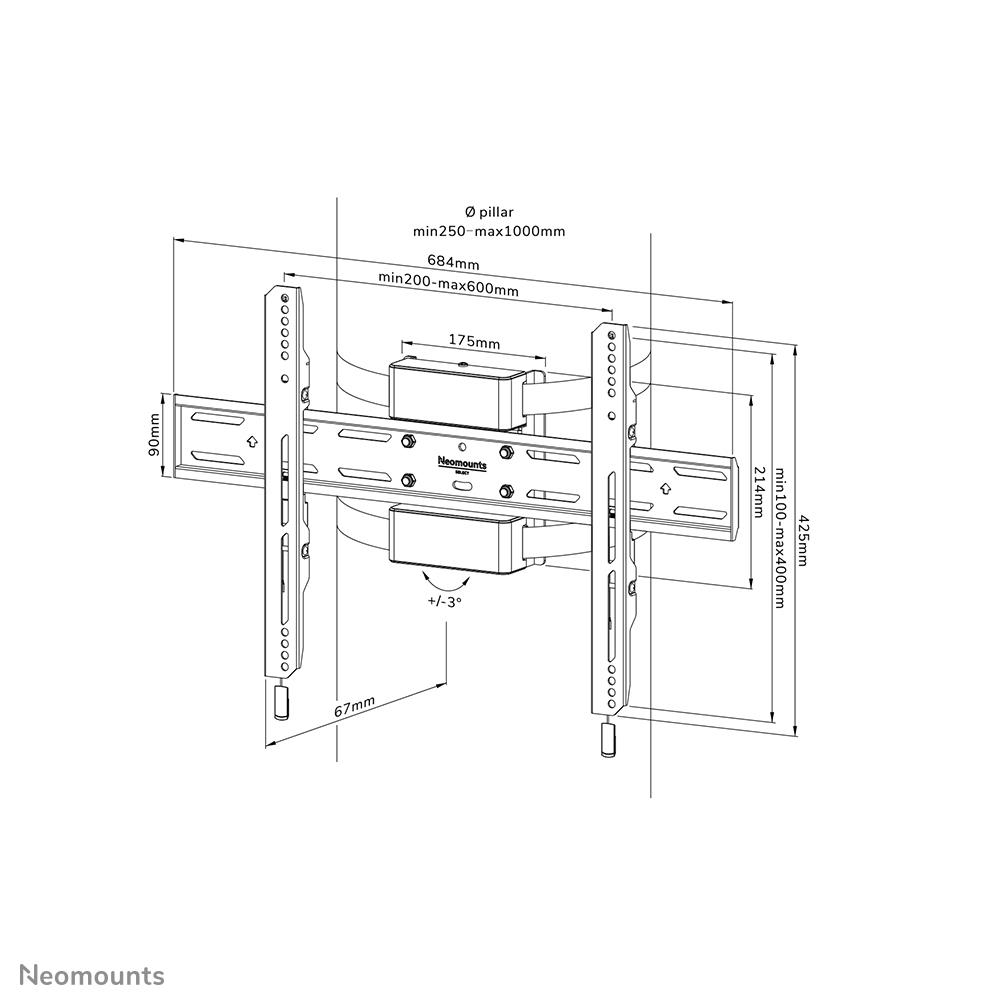

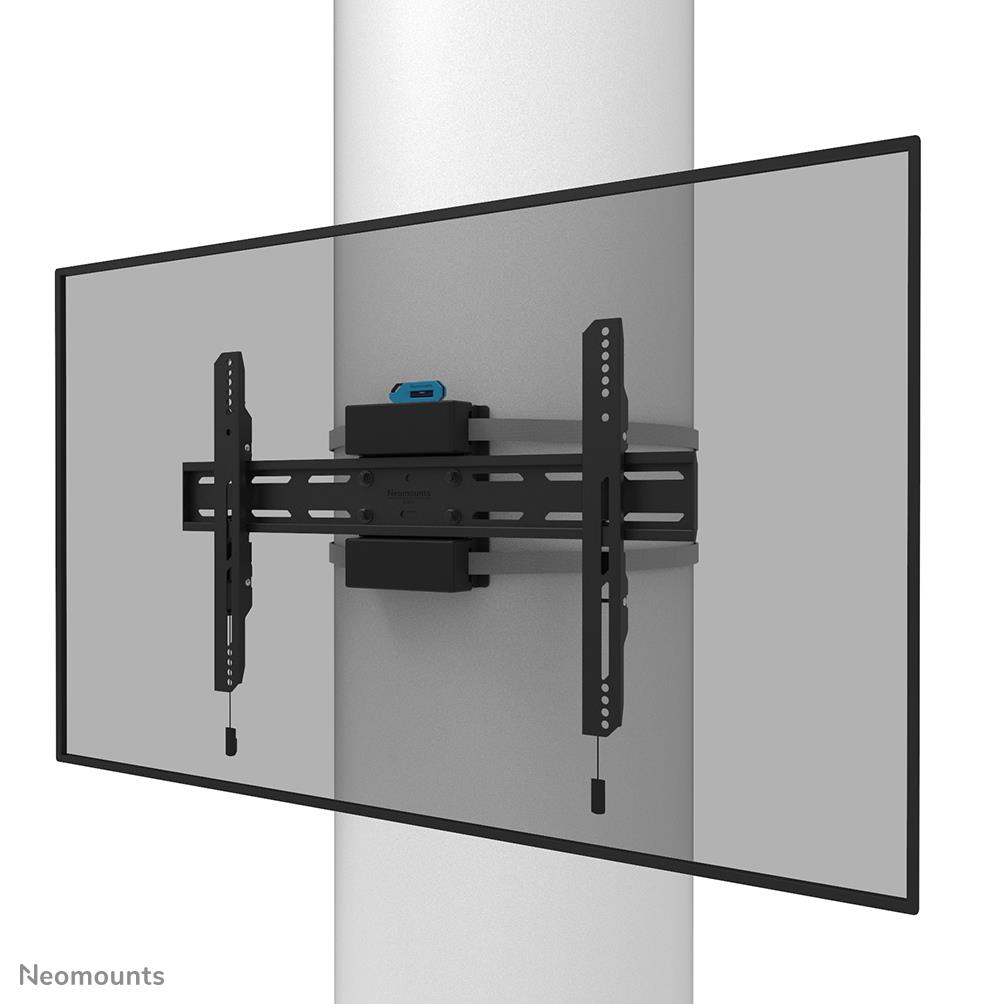

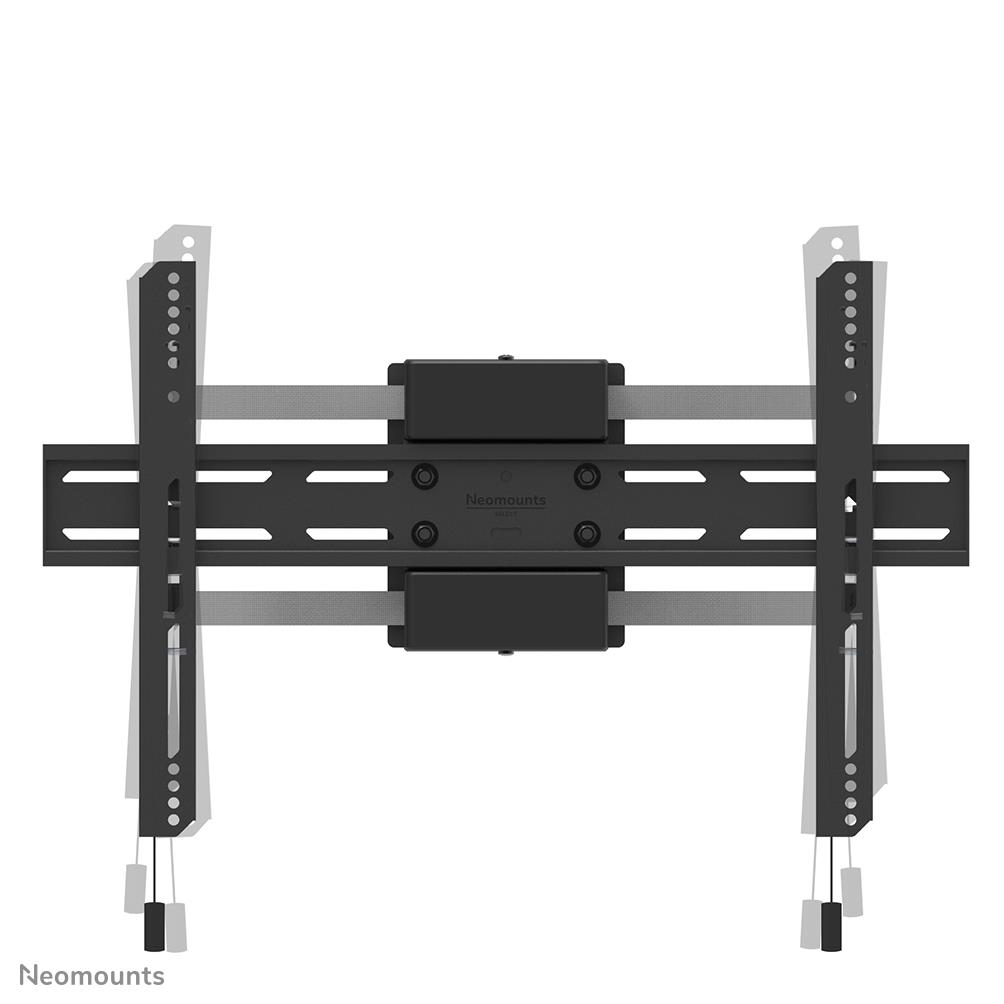

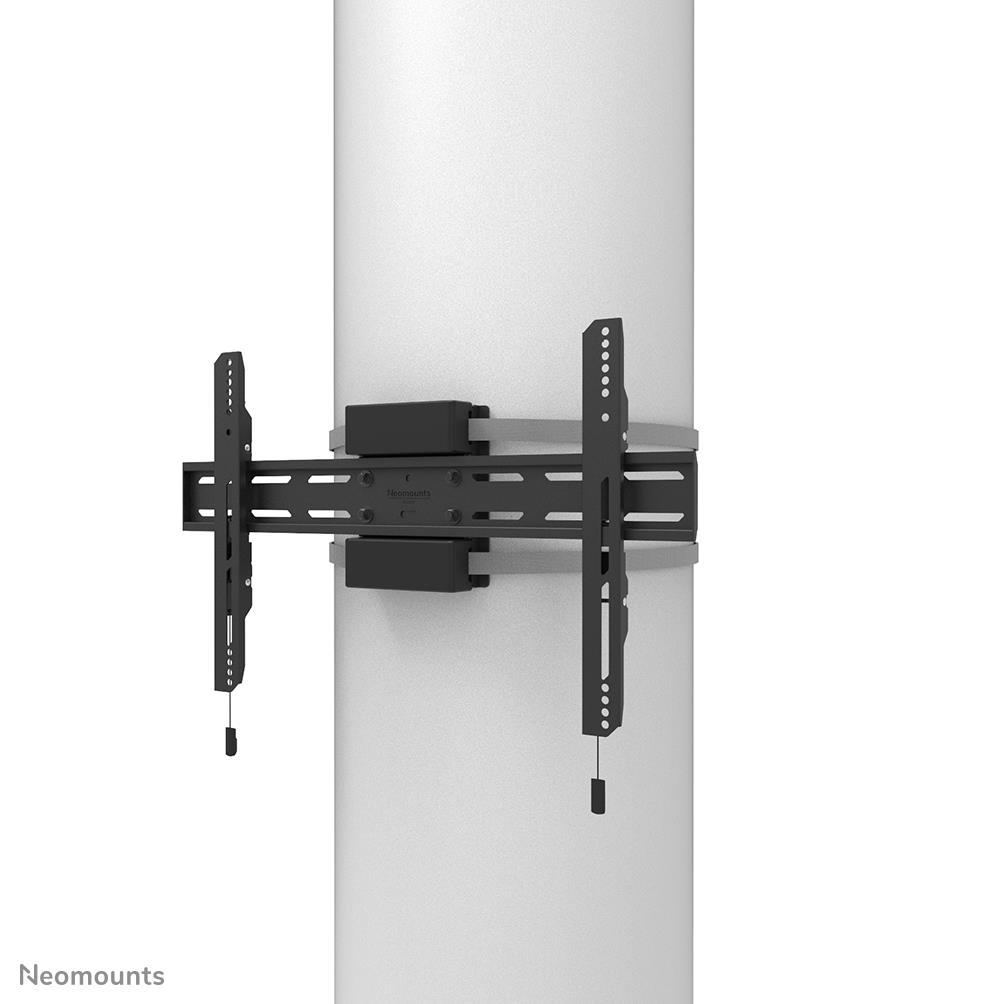

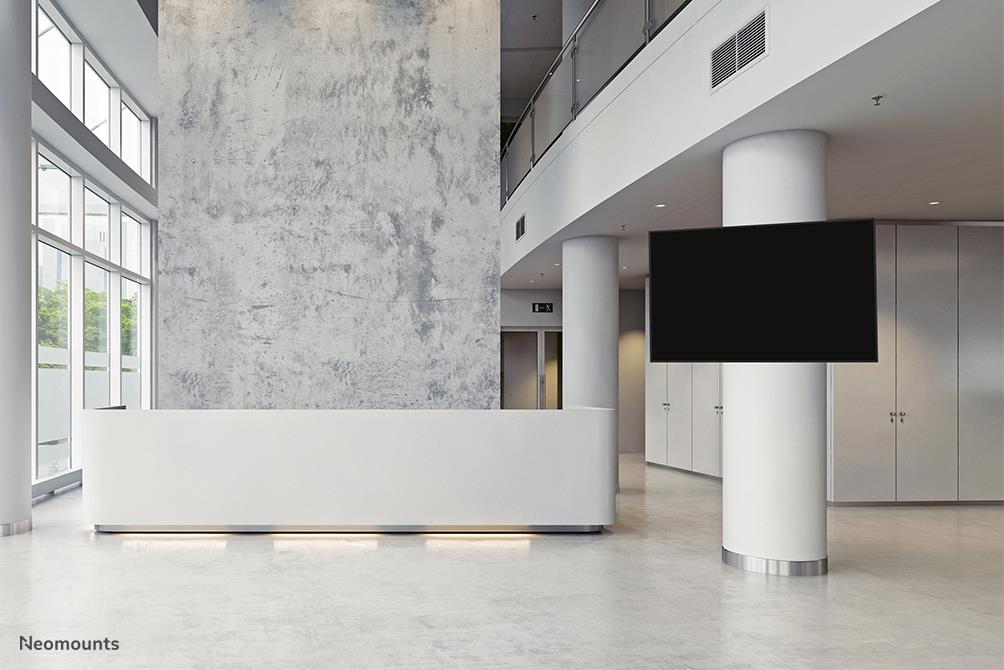

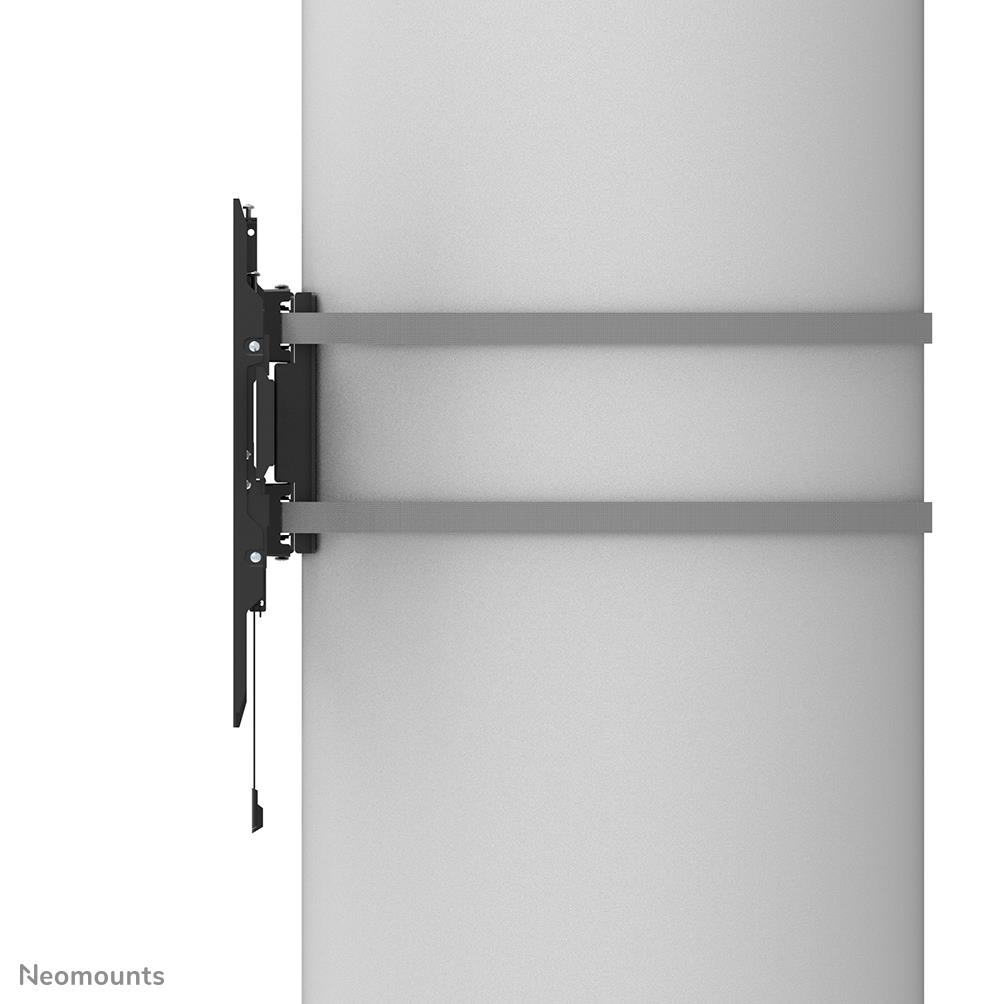

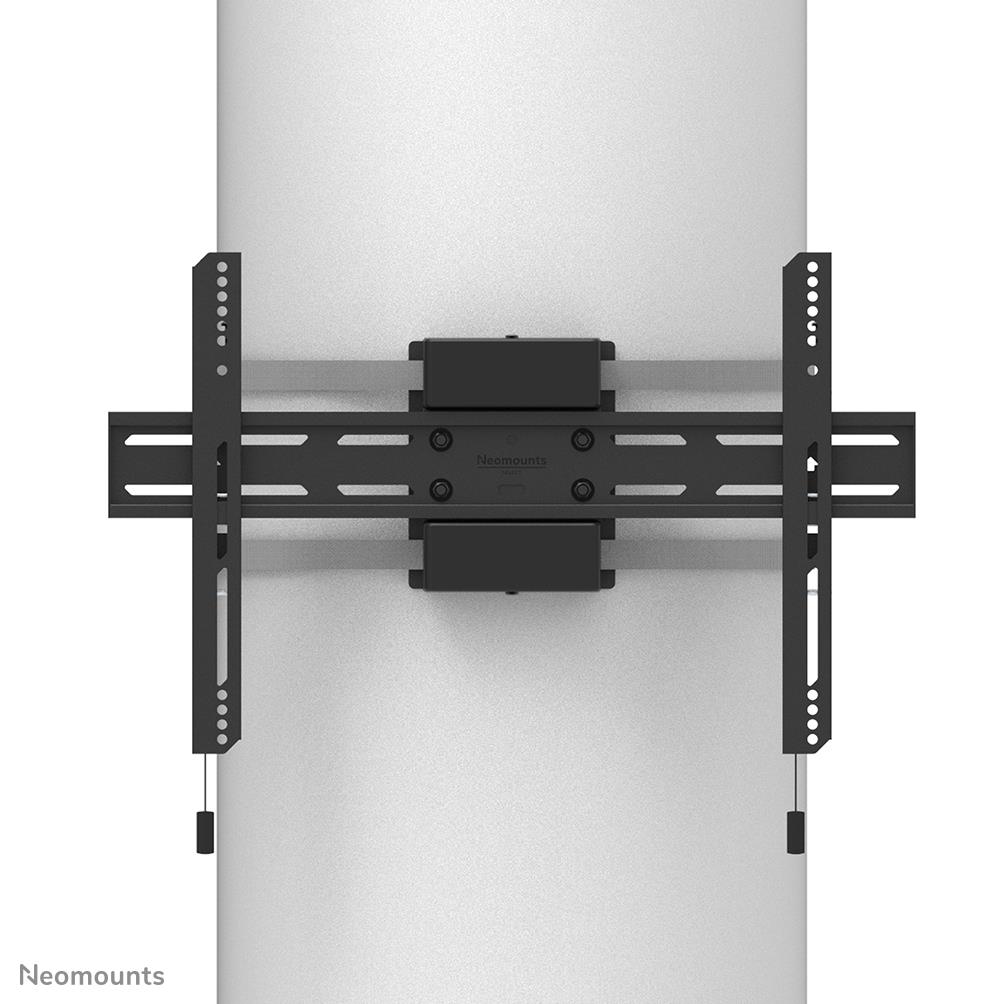

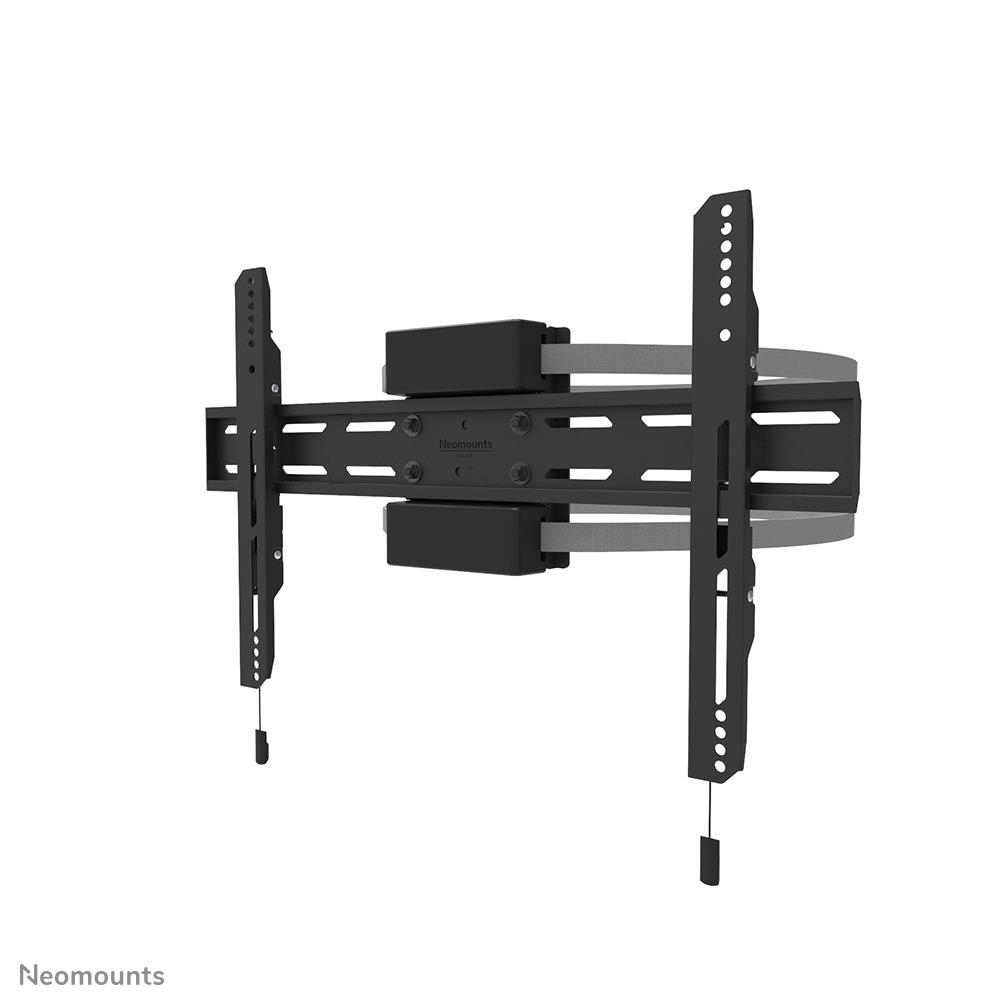

The Neomounts WL30S-910BL16 is a fixed pillar mount for screens up to 75″ with a maximum weight capacity of 50 kg. The mount is suitable for Ø25-100 cm cylinder, square and rectangular pillars. Individual bracket height and level adjustment are available for the perfect installation.

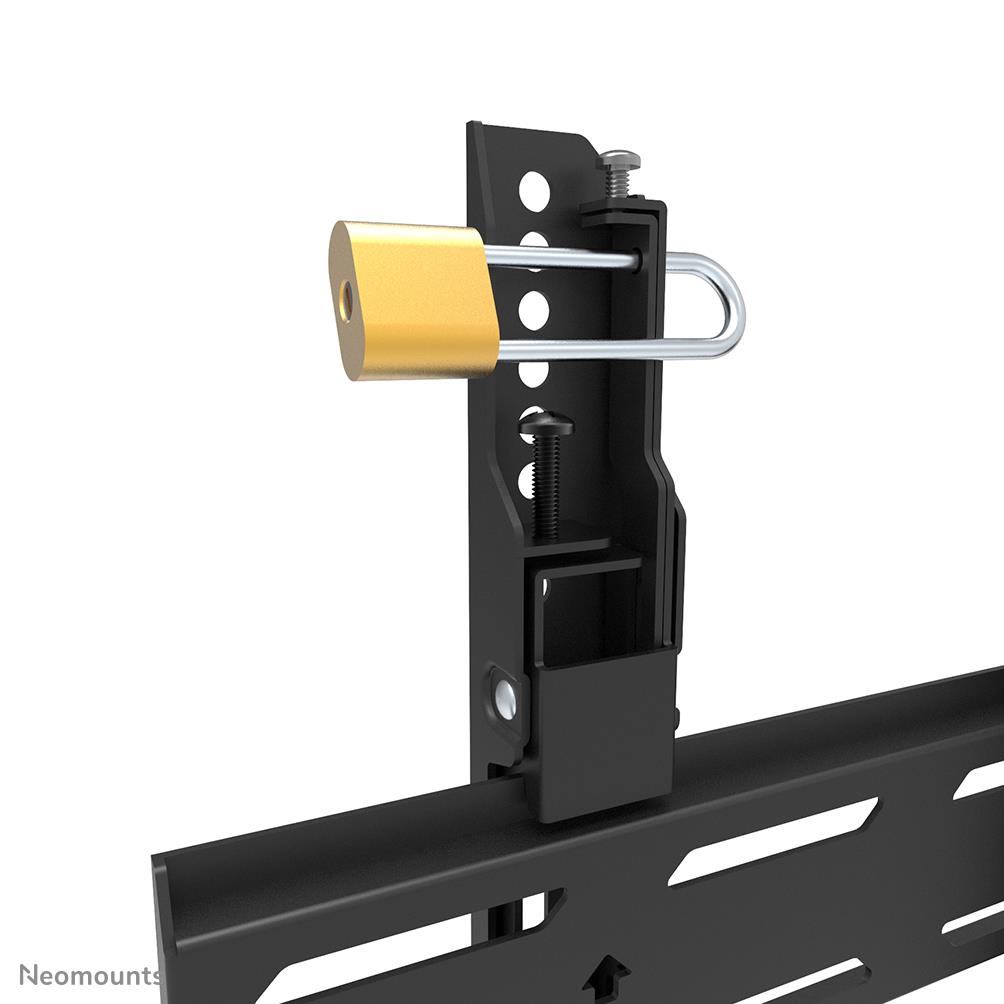

The WL30S-910BL16 has a depth of 6,7 cm and is suitable for screens that meet VESA hole pattern 200×100 to 600×400 mm. The pillar mount has a strap of 350 cm and can be locked if required with the anti-theft screw provided or with a padlock (not included).

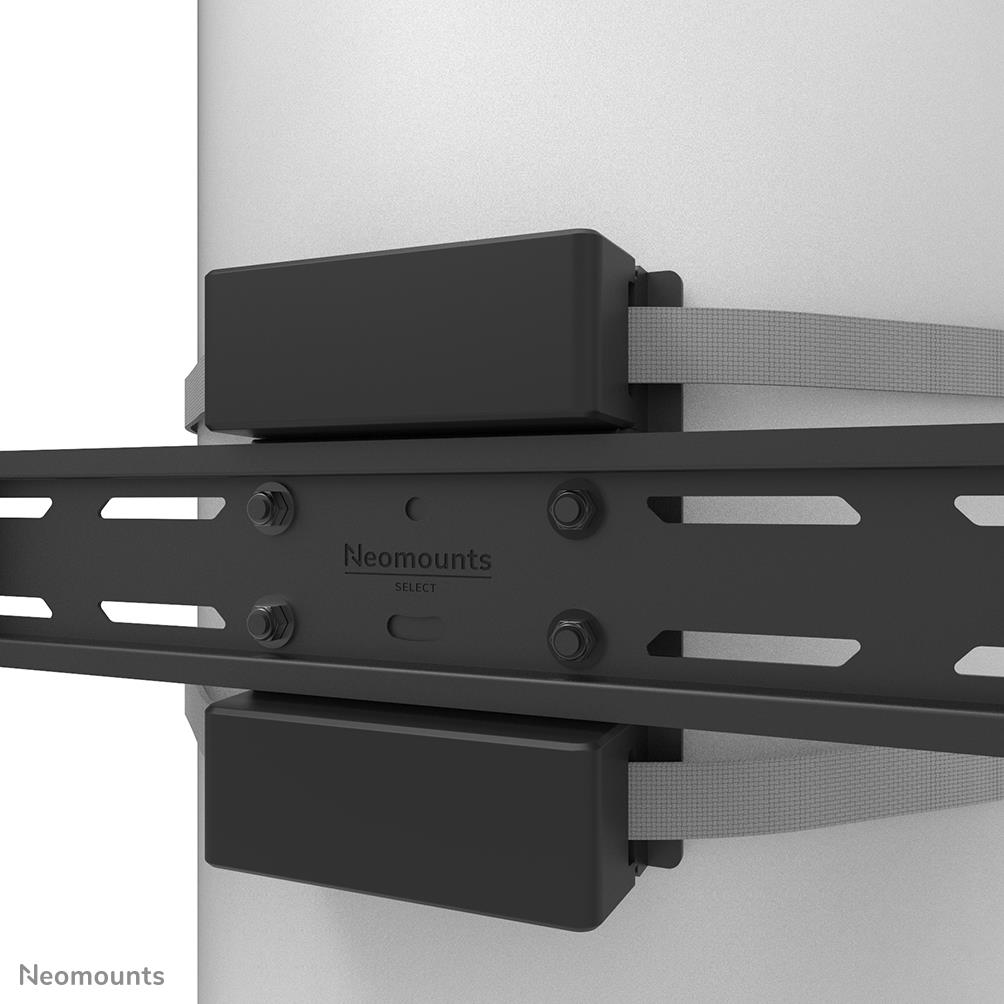

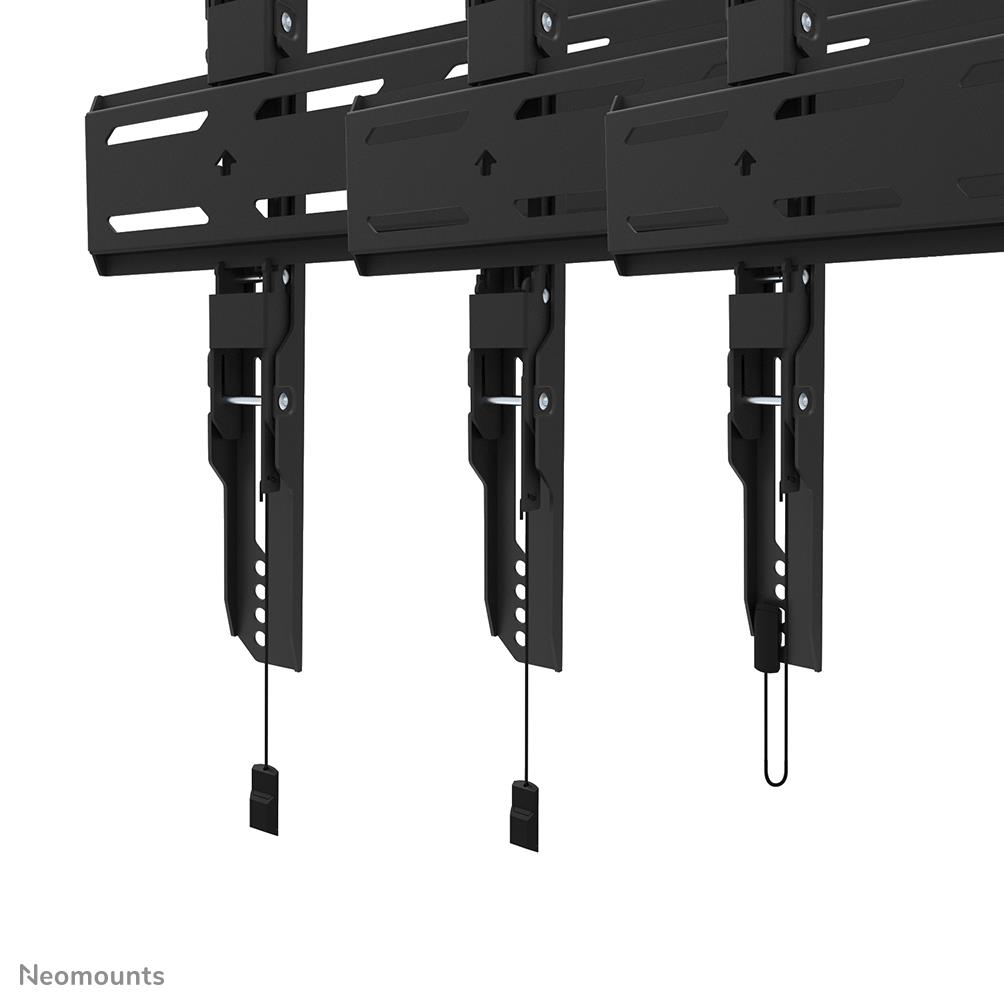

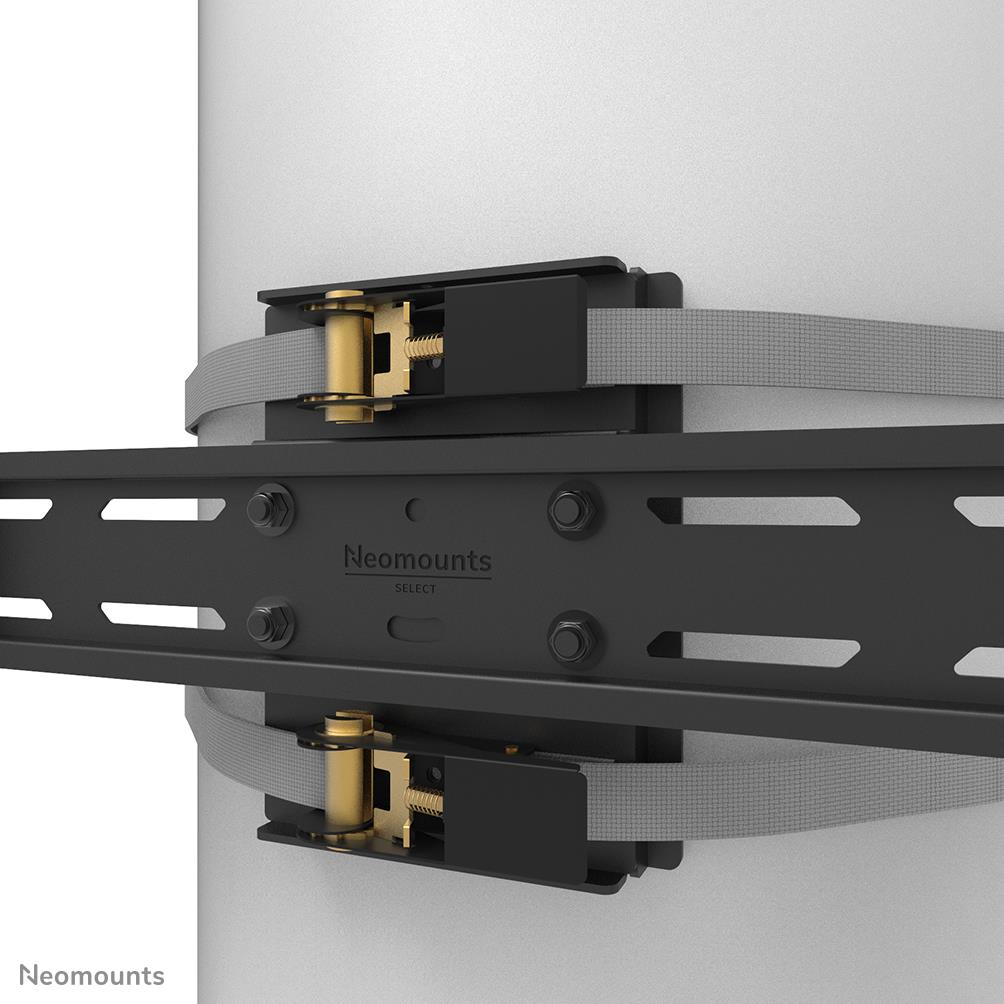

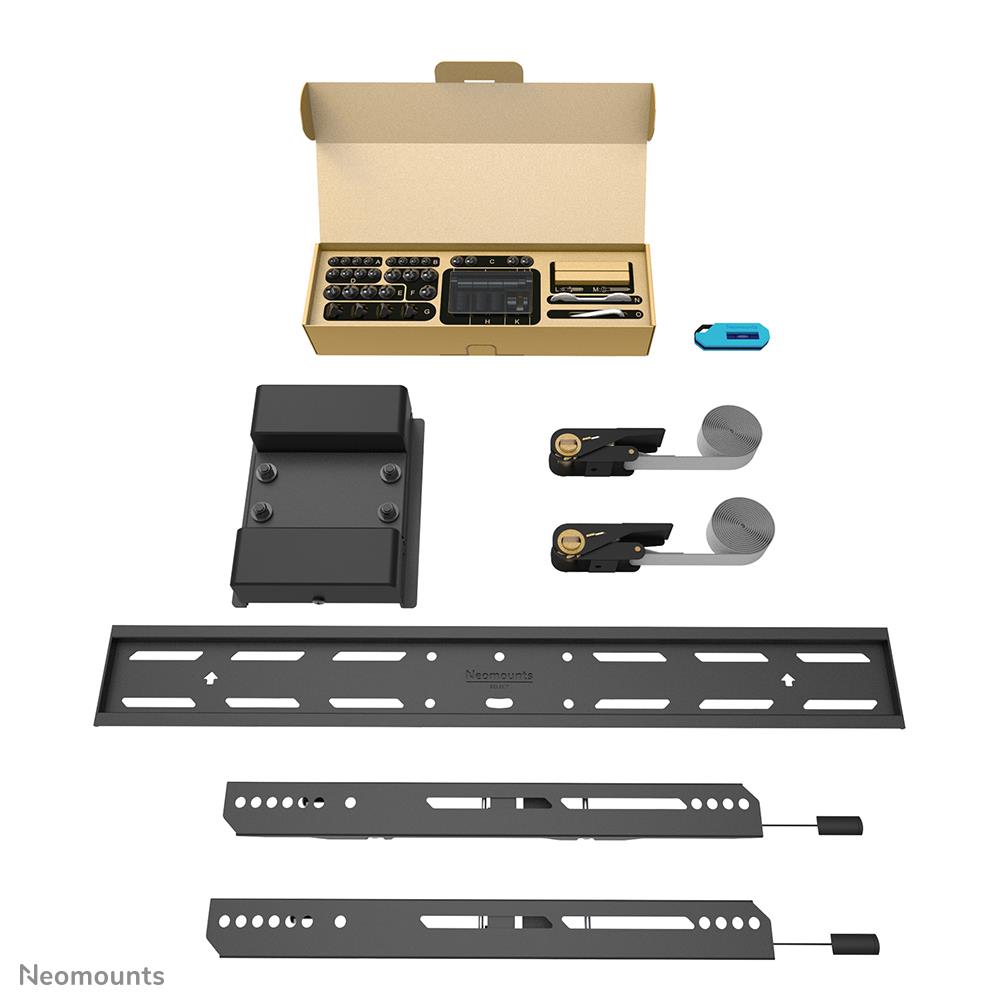

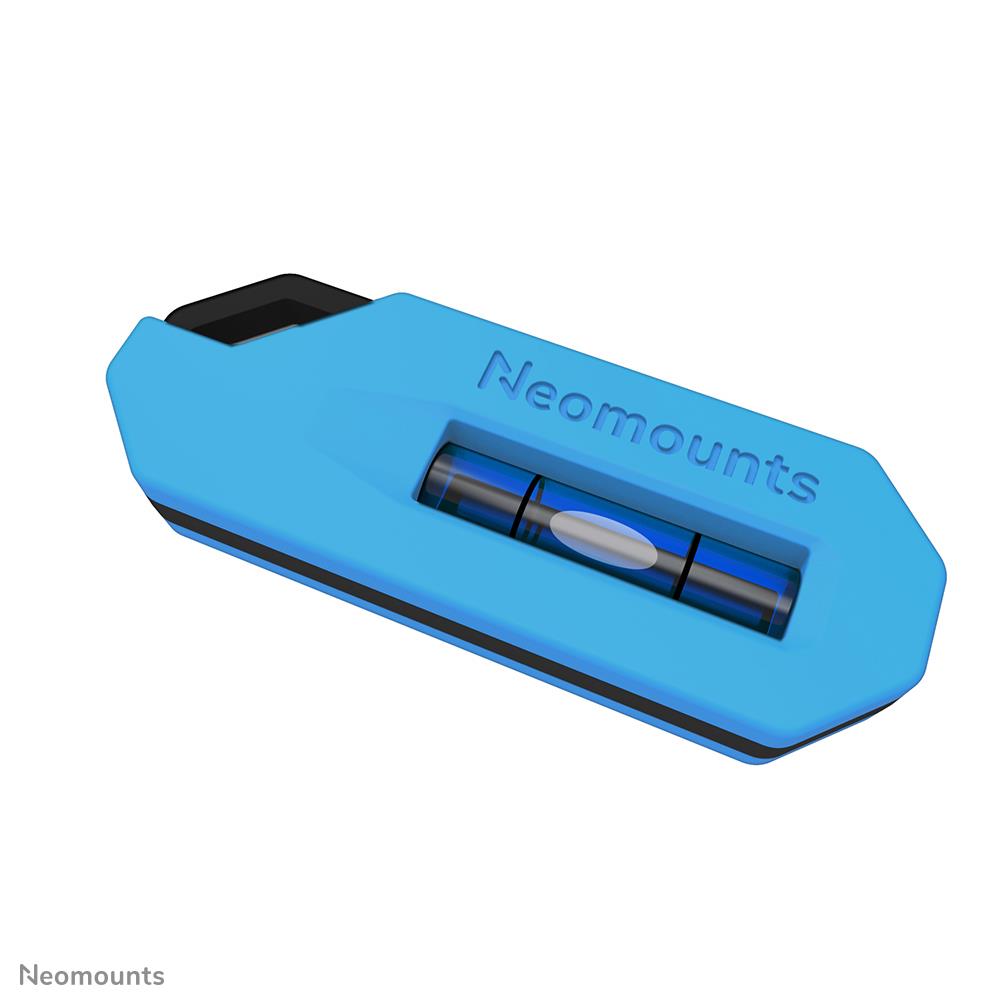

The mount features a nifty magnetic pull & release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull & release straps can be easily hidden behind the screen by clicking the magnet to the mount. The ratchet clamp ensures easy installation, as well as the separate magnetic spirit level tool that is included.
Specifikacijos
| Vendor Homepage | https://www.neomounts.com/default.asp?pageid=44&artdetail=WL30S-910BL16 |
|---|---|
| Category Code | TMS |
| Unit Box Height | 0.24 |
| Unit Box Length | 0.9 |
| Unit Box Width | 0.08 |
| Maximum screen size | 75 " |
| Maximum VESA mount | 600 x 400 mm |
| Maximum weight capacity | 50 kg |
| Maximum weight capacity (per display) | 50 kg |
| Minimum screen size | 40 " |
| Minimum VESA mount | 200 x 100 mm |
| Mounting type | Pole |
| Number of displays supported | 1 |
| Panel mounting interface | 200 x 100/200 x 150/200 x 200/200 x 300/200 x 400/300 x 100/300 x 200/300 x 300/300 x 400/350 x 350/400 x 200/400 x 300/400 x 400/440 x 400/500 x 400/600 x 200/600 x 300/600 x 400 mm |
| Angle of rotation | 6 ° |
| Cable management | No |
| Distance to the wall (max) | 67 mm |
| Pivot angle | -3 – 3 ° |
| Type | Fixed |
| Accepts padlock | Yes |
| Housing material | Steel |
| Product colour | Black |
| Compatible pole diameter (max) | 1000 mm |
| Compatible pole diameter (min) | 250 mm |
| Country of origin | China |
| Lockable | Security screw included |
| Package net weight | 5300 g |
| Warranty period | 5 year(s) |
| Depth | 67 mm |
| Depth (max) | 67 mm |
| Height | 425 mm |
| Weight | 4200 g |
| Width | 684 mm |
| Package depth | 74 mm |
| Package height | 900 mm |
| Package weight | 5300 g |
| Package width | 238 mm |
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 21700 g |
| Master (outer) case height | 920 mm |
| Master (outer) case length | 258 mm |
| Master (outer) case net weight | 16800 g |
| Master (outer) case width | 315 mm |
| Products per master (outer) case | 4 pc(s) |
| Products per pallet (EU) | 48 pc(s) |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.01728 cubm |
| Unit Calculated Weight | 5.5 kg |
