Description

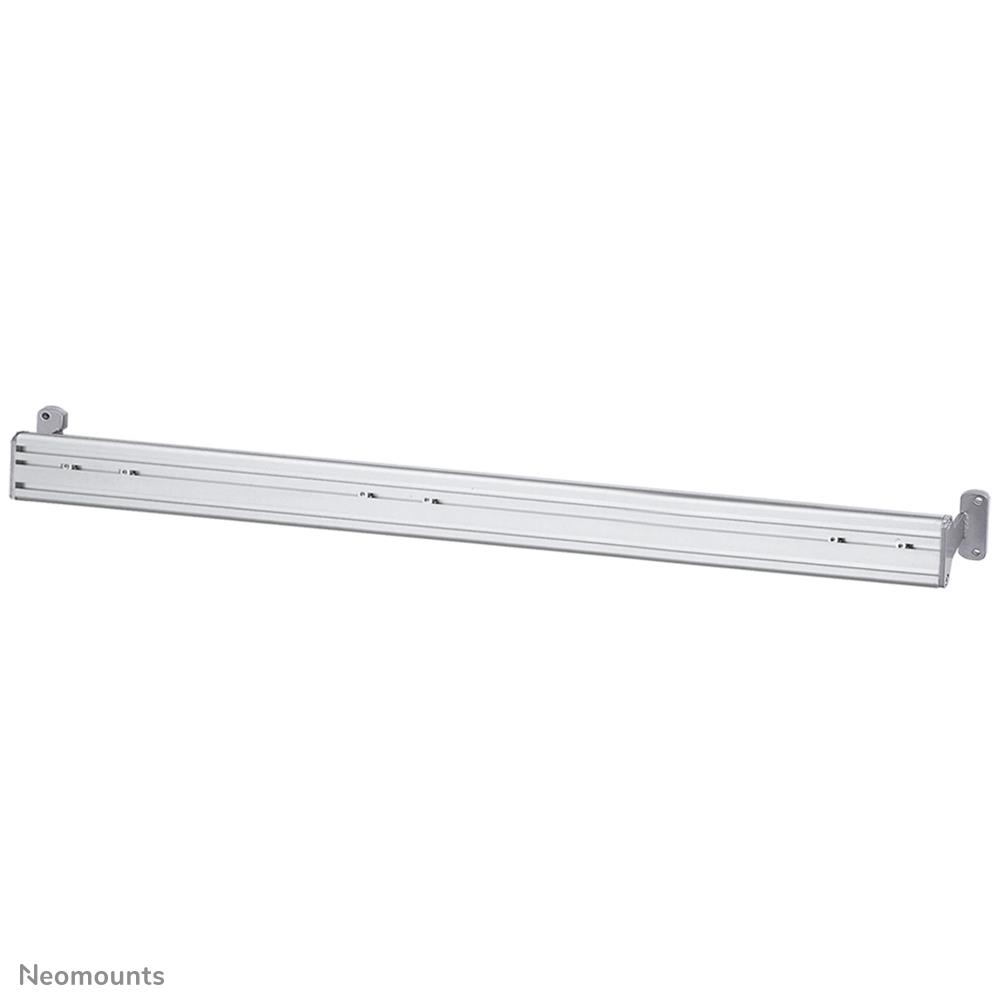

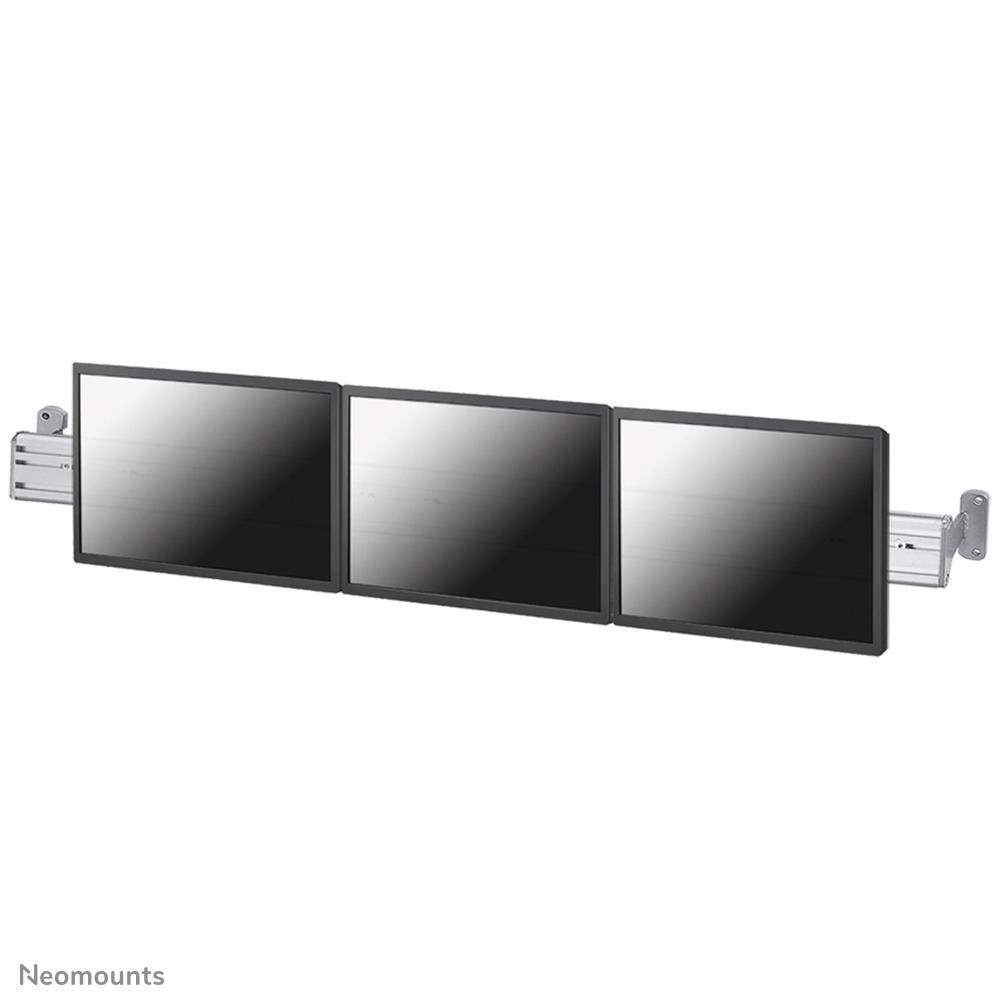

With the Neomounts FPMA-WTB100 toolbar wall rail, you can install up to 3 screens from 10-24″ and maximum 10 kg per screen to the wall. On the 130 cm wide toolbar, screens can easily be moved from left to right, utilizing the full functionality of the screens. The toolbar wall rail is supplied without monitor bracket; these should be ordered separately. Each screen requires one bracket.
There are various monitor brackets available that can be combined with the FPMA-WTB100 toolbar wall mount:
* The FPMA-DTBW100 monitor bracket is 8 cm deep and can both tilt and rotate. Its maximum capacity is 8 kg.
* The FPMA-DTBW200 monitor bracket is 12 cm deep and features a tilt, rotate and swivel option. The maximum capacity of this bracket is 10 kg.
Both monitor brackets are suitable for screens with a VESA hole pattern of 75×75 and 100×100 mm. FPMA-WTB100 toolbar wall mount features cable clips so cables can be easily and neatly routed.
Specifikacijos
| Vendor Homepage | https://www.neomounts.com/default.asp?pageid=44&artdetail=FPMA-WTB100 |
|---|---|
| Category Code | TMS |
| Unit Box Height | 0.1 |
| Unit Box Length | 1.37 |
| Unit Box Width | 0.11 |
| Maximum screen size | 24 " |
| Maximum VESA mount | 100 x 100 mm |
| Maximum weight capacity | 10 kg |
| Maximum weight capacity (per display) | 10 kg |
| Minimum screen size | 10 " |
| Minimum VESA mount | 75 x 75 mm |
| Mounting type | Wall |
| Number of displays supported | 3 |
| Panel mounting interface | 75 x 75 mm |
| Distance to the wall (max) | 65 mm |
| Housing material | Aluminium |
| Product colour | Silver |
| Country of origin | Taiwan |
| Package net weight | 2800 g |
| Depth | 65 mm |
| Weight | 2300 g |

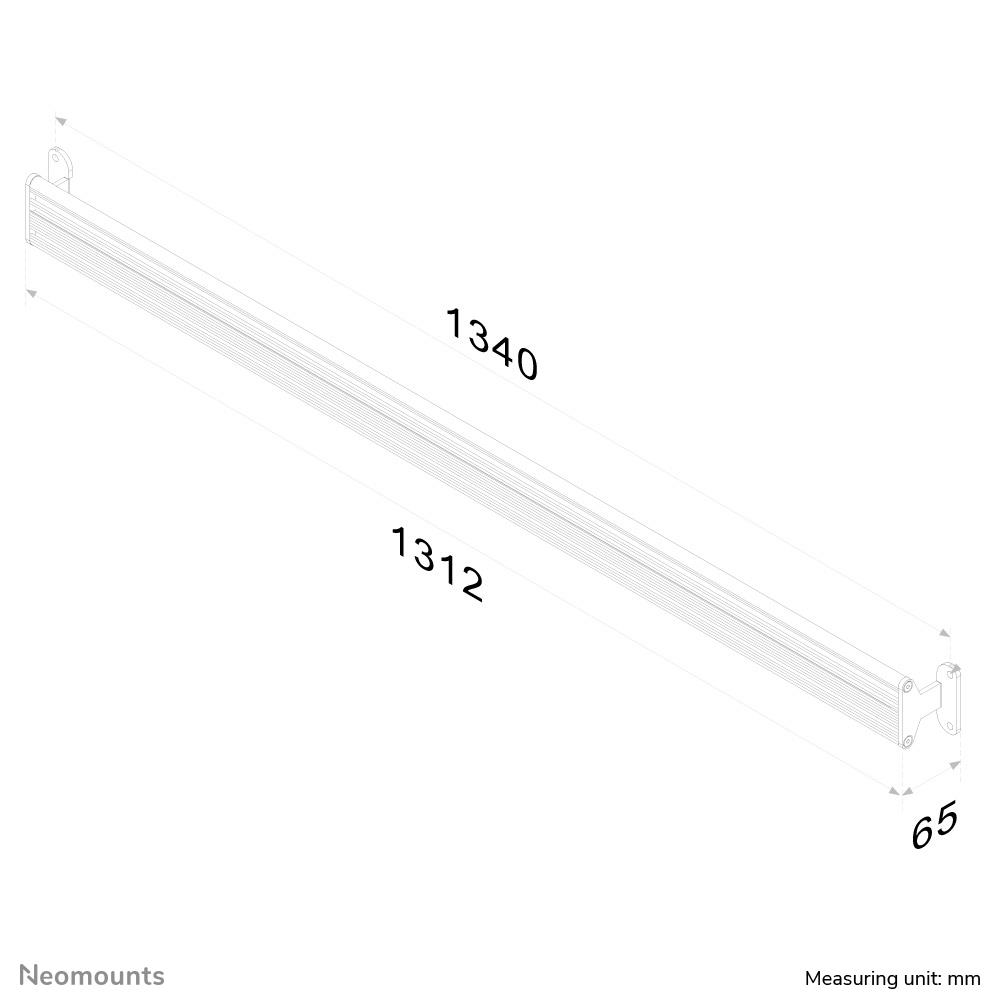

| Width | 1300 mm |
| Package depth | 120 mm |
| Package height | 110 mm |
| Package weight | 2800 g |
| Package width | 1390 mm |
| Harmonized System (HS) code | 7616991099 |
| Master (outer) case gross weight | 2800 g |
| Master (outer) case height | 110 mm |
| Master (outer) case length | 120 mm |
| Master (outer) case net weight | 2800 g |
| Master (outer) case width | 1390 mm |
| Products per master (outer) case | 1 pc(s) |
| Products per pallet (EU) | 58 pc(s) |
| Depth adjustment range | 0 – 65 mm |
| Width adjustment range | 0 – 1300 mm |
| Units per Pallet | 48 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.01507 cubm |
| Unit Calculated Weight | 2.85 kg |
