Switch TELTONIKA TSW2000000B0 PoE ports 8 240 Watts TSW200
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $40
-
DHL Courier delivery
DHL courier will deliver to the specified address
1-2 Days
From $40
91.98 €
Liko 7
Liko 7
Description
Networking standards
IEEE 802.3/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3u

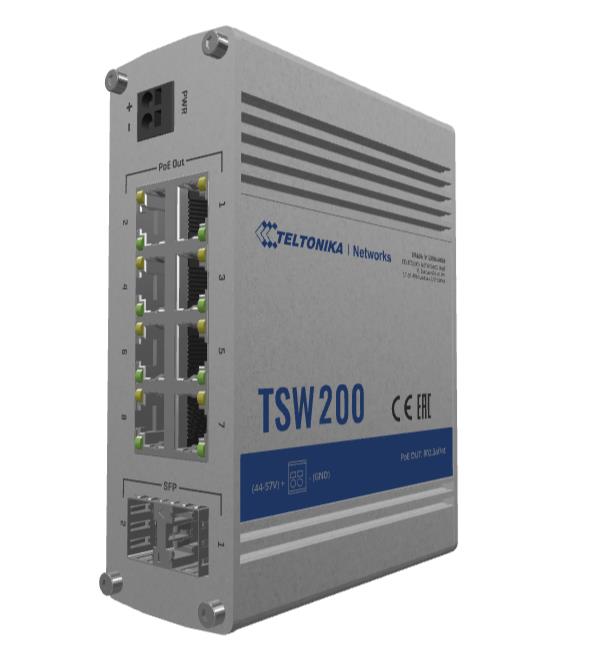

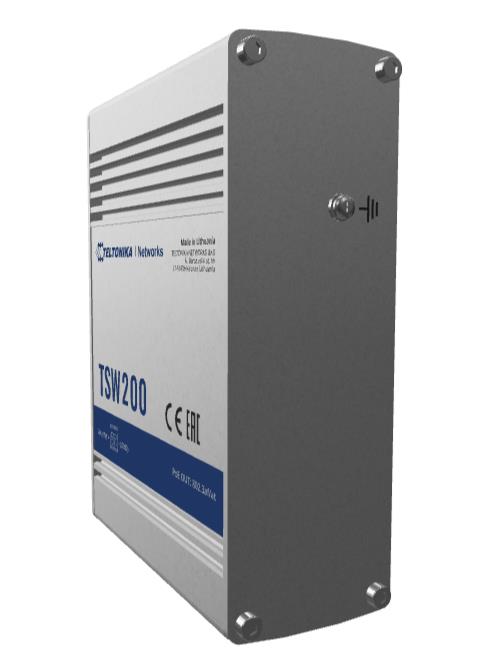

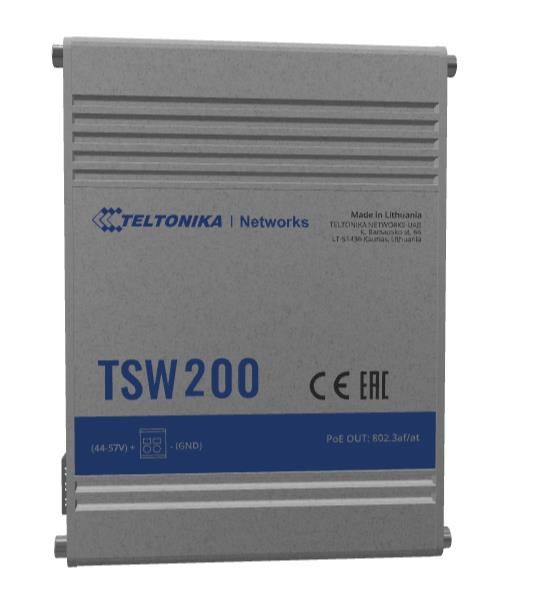

TSW200 is industrial unmanaged switch from Teltonika Networks.
TSW200 is equipped with 2 SFP ports for long-range Fiber-optic communication and 8 Gigabit Ethernet ports which support IEEE802.3af and IEE802.3at Power-over-Ethernet standards.
Classified as power source equipment (PSE), it enables centralization of the power supply, providing up to 30 watts per port and reducing the effort for installing power. It has 10/100/1000 Mbps Ethernet ports to provide an economical high-bandwidth solution for your industrial Ethernet network.
This rugged unmanaged industrial switch is ideal for professional high bandwidth applications where it is necessary to provide both: reliable data connection and power supply.
- POE+
- SFP
- ETHERNET
- DURABILITY
- MOUNTING (DIN rail)
- POWER BUDGET
Specifikacijos
| Vendor Homepage | https://teltonika-networks.com/product/tsw200/ |
|---|---|
| Category Code | SWI |
| Unit Box Height | 0.146 |
| Unit Box Length | 0.17 |
| Unit Box Width | 0.07 |
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Auto MDI/MDI-X | Yes |
| Jumbo frames | 9216 |
| Jumbo frames support | Yes |
| MAC address table | 2000 entries |
| Packet buffer memory | 0.128 MB |
| DIN rail mounting | Yes |
| Housing material | Aluminium |
| International Protection (IP) code | IP30 |
| LED indicators | LAN/PoE/Status |
| Product colour | Aluminium |
| Rack mounting | Yes |
| Wall mountable | Yes |
| DC input voltage | 7 – 57 V |
| Power consumption (max) | 106 W |
| Power consumption (typical) | 1.8 W |
| Power source | DC |
| Power supply included | No |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet (PoE) voltage | 57 V |
| Total Power over Ethernet (PoE) budget | 240 W |
| Operating temperature (T-T) | -40 – 75 °C |
| Depth | 44.2 mm |
| Height | 132 mm |
| Weight | 456 g |
| Width | 95.1 mm |
| Model | TSW200 |
| Model name | TSW200 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.001737 cubm |
| Unit Calculated Weight | 0.6 kg |
