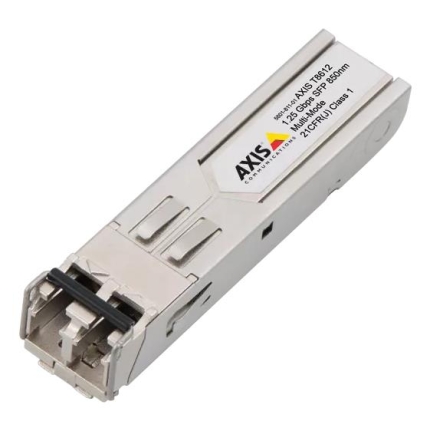

NET TRANSCEIVER SFP 550M/T8612 5801-811 AXIS
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $40
-
DHL Courier delivery
DHL courier will deliver to the specified address
1-2 Days
From $40
112.14 €
Neturime
Neturime
Description

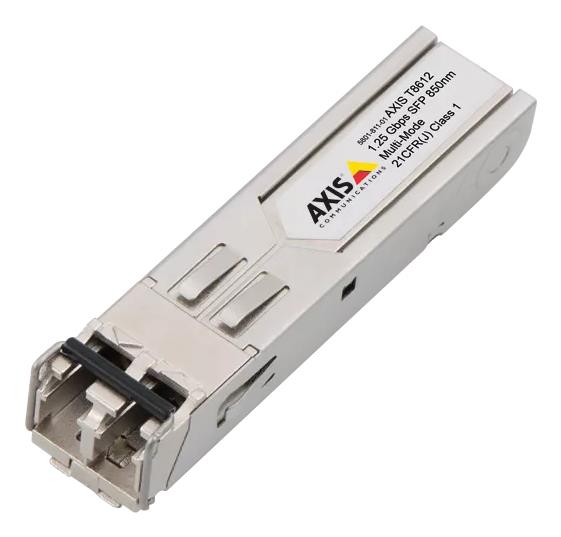

AXIS T8612 SFP Module LC.SX is a small form-factor pluggable (SFP) transceiver that supplies network devices, such as a switches or routers, with a fiber optic network connection. It is industrial grade with a wide temperature range, and it includes link-loss that enable network redundancy. Complying with SFP Multisource Agreement (MSA), it is easy to install into compliant ports at any time without interrupting the online operation of the host equipment. Short wavelength (850 nm) VCSEL laser diodes enable data transmission up to 550 m on a multimode 50/125 μm optical fiber. The module is tested and verified with Axis products.
- Complies with SFP MSA; Industrial grade – extended temperature range; Link-loss feature; Multimode fiber; Up to 550 m range
Specifikacijos
| Vendor Homepage | https://www.axis.com/ie/en/products/power-and-connectivity/axis-t8612-sfp-module-lc-sx |
|---|---|
| Category Code | NTM |
| Unit Box Height | 0.025 |
| Unit Box Length | 0.115 |
| Unit Box Width | 0.065 |
| Fiber optic connector | LC |
| Interface type | SFP |
| Maximum transfer distance | 550 m |
| Multi-mode fiber (MMF) supported | Yes |
| SFP transceiver standard | SX |
| SFP transceiver type | Fiber optic |
| Wavelength | 850 nm |
| Housing material | Metal |
| Product colour | Metallic |
| Operating temperature (T-T) | -40 – 65 °C |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85369010 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.0001869 cubm |
| Unit Calculated Weight | 0.04 kg |
