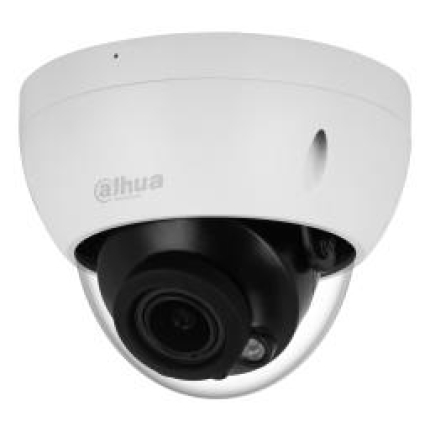

NET CAMERA 5MP IR DOME/HDBW2541R-ZAS-27135S2 DAHUA
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $40
-
DHL Courier delivery
DHL courier will deliver to the specified address
1-2 Days
From $40
Original price was: 323.82 €.148.96 €Current price is: 148.96 €.
Neturime
Neturime
Description
Certification
CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B
Supported graphics resolutions
1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2304 x 1296/2592 x 1944/2688 x 1520/704 x 480/704 x 576
Supported network protocols
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
5MP IR Vari-focal Dome WizSense Network Camera
- 5-MP 1/2.7″ CMOS image sensor, low luminance, and high definition image
- Outputs max. 5 MP (2592 × 1944) @20 fps, and supports 4 MP (2688×1520) @25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in IR LED, and the max. illumination distance is 40 m
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
- Abnormality detection: Motion detection, video tampering, scene changing, audio detection (Only – ZAS supports) , no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
- Alarm: 1 in, 1 out (Only – ZAS supports); audio: 1 in, 1 out (Only – ZAS supports)
- Supports max. 256 G Micro SD card
- 12 VDC/PoE power supply, easy for installation
- IP67 and IK10 protection
- SMD Plus
Dahua Technology WizSense IPC-HDBW2541R-ZAS. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Angle of rotation: 360°, Lens viewing angle, horizontal: 100 – 30°, Lens viewing angle, vertical: 72 – 23°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7″), Number of effective pixels (H x V): 2592 x 1944 pixels. Signal-to-Noise Ratio (SNR) (panoramic camera): 56 dB, Bit rate control (panoramic camera): Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Specifikacijos
| Vendor Homepage | https://www.dahuasecurity.com/de/products/All-Products/Network-Cameras/WizSense-Series/2-Series/5MP/IPC-HDBW2541R-ZAS=S2 |
|---|---|
| Category Code | FNC |
| Unit Box Height | 0.135 |
| Unit Box Length | 0.155 |
| Unit Box Width | 0.155 |
| Form factor | Dome |
| Housing material | Metal |
| IK code | IK10 |
| International Protection (IP) code | IP67 |
| Mounting type | Ceiling |
| Product colour | White |
| Alarm input/output | Yes |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Dynamic range | 120 dB |
| Placement supported | Indoor & outdoor |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Adjustment shutter speed | Auto/Manual |
| Angle of rotation | 360 ° |
| Camera shutter speed | 1/3 -1/100000 s |
| Camera shutter type | Electronic |
| Lens viewing angle, diagonal | 134 – 38 ° |
| Lens viewing angle, horizontal | 100 – 30 ° |
| Lens viewing angle, vertical | 72 – 23 ° |
| Minimum illumination | 0 lx |
| Number of Privacy masking areas | 4 |
| Pan range | 0 – 355 ° |
| Tilt angle range | 0 – 75 ° |
| White balance | Auto/Natural/Outdoor/Regional custom/Street lamp |
| Bit rate control (panoramic camera) | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Number of effective pixels (H x V) | 2592 x 1944 pixels |
| Number of sensors | 1 |
| Optical sensor size | 1/2.7 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Signal-to-Noise Ratio (SNR) (panoramic camera) | 56 dB |
| Closest focusing distance | 0.8 m |
| Detect distance (tele) | 221.4 m |
| Detect distance (wide) | 64.4 m |
| Focal length range | 2.7 – 13.5 mm |
| Identify distance (tele) | 22.1 m |
| Identify distance (wide) | 6.4 m |
| Observe distance (tele) | 88.6 m |
| Observe distance (wide) | 25.8 m |
| Recognize distance (tele) | 44.3 m |
| Recognize distance (wide) | 12.9 m |
| LED type | IR |
| Night vision | Yes |
| Night vision distance | 40 m |
| Number of illumination LEDs | 2 |
| Back Light Compensation (BLC) | Yes |
| Bit rate | H.264: 3 kbps-8192 kbps H.265: 3 kbps-8192 kbps |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Frame rate | 30 fps |
| Gain control type | Auto/Manual |
| Highlight Compensation (HLC) | Yes |
| Maximum resolution | 2592 x 1944 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Privacy masking | Yes |
| Region of Interest (ROI) encoding | Yes |
| Total megapixels | 5 MP |
| Video compression formats | H.264/H.264+/H.264B/H.264H/H.265/H.265+/M-JPEG |
| Video streaming | Yes |
| Audio formats supported | G.711 A-law/G.726/PCM |
| Audio input channels | 2.0 channels |
| Audio output channels | 2.0 channels |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Number of users | 20 user(s) |
| Wi-Fi | No |
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash) |
| Internal memory | 512 MB |
| Maximum memory card size | 256 GB |
| ROM capacity | 128 MB |
| Ethernet LAN (RJ-45) ports | 1 |
| Intelligent Video Surveillance (IVS) system features | Intrusion/Tripwire |
| Mirror | Yes |
| Video motion detection | Yes |
| Management software | Smart PSS; DSS; DMSS |
| Web browser | Yes |
| DC output voltage | 12 |
| Power consumption (Power over Ethernet (PoE)) | 4 W |
| Power consumption (typical) | 3.1 W |
| Power source type | DC,PoE |
| Operating relative humidity (H-H) | 0 – 95 % |
| Operating temperature (T-T) | -30 – 60 °C |
| Storage temperature (T-T) | -40 – 60 °C |
| Mobile operating systems supported | Android/iOS |
| Diameter | 122 mm |
| Height | 88.9 mm |
| Weight | 492 g |
| Package weight | 663 g |
| Number of cameras | 1 |
| Model | IPC-HDBW2541R-ZAS-27135-S2 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.003243 cubm |
| Unit Calculated Weight | 0.68 kg |
