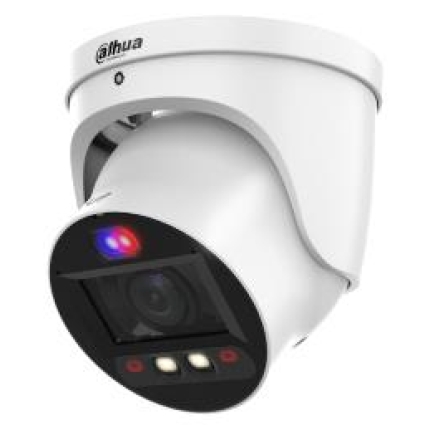

NET CAMERA 5MP EYEBALL/HDW3549H-ZAS-PV-27135 DAHUA
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $40
-
DHL Courier delivery
DHL courier will deliver to the specified address
1-2 Days
From $40
Original price was: 315.00 €.144.90 €Current price is: 144.90 €.
Liko 6
Liko 6
Description
Certification
CE-LVD: EN 62368-1;
CE-EMC: Electromagnetc Compatbility Directve
2014/30/EU
Supported graphics resolutions
1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/2304 x 1296/2688 x 1512/2880 x 1620/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576
Client interoperability
ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone
Supported network protocols
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P
Launched by Dahua Technology, WizSense is a series of wide range AI products and solutions that adopt independent AI chip and deep learning algorithm. It can recognize human and vehicle in an image with high accuracy, enabling users to focus on real targets. WizSense focuses on human and vehicle, benefiting everyone with intelligent functions, simple configuration and inclusive products.
Intelligent: Powered by AI chip and deep learning algorithm, WizSense provides various features that realizes accurate alarms for human and vehicle, and quick target search, maximizing resources to increase overall efficiency.
Simple: WizSense offers simple configuration, especially for SMD and AI Coding enabled by default. It eases your customer’s daily job and also empowers them to make better business decisions.
Inclusive: Inclusivity of WizSense is the idea that everyone gets the opportunities and benefits from AI. With affordable prices and easy configuration of Dahua WizSense, AI is no longer confined to an ivory tower, but applied to real scenarios instead.
- 5-MP 1/2.7″ CMOS image sensor, low luminance, and high definition image
- Outputs max. 5 MP (2960×1668) @20 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in warm light and IR LED; the max. IR illumination distance is 50 m and warm light distance is 40 m
- ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human)
- Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk
- 12 VDC/PoE power supply
- IP67 protection
- Sound and light alarm (red and blue lights)
- SMD 4.0
- Supports AI SSA and one-tap arming and disarming
- SMD area can be set in warm light areas that support triggering alarms
Specifikacijos
| Vendor Homepage | https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/3-Series/TiOC/IPC-HDW3549H-ZAS-PV=S5 |
|---|---|
| Category Code | FNC |
| Unit Box Height | 0.17 |
| Unit Box Length | 0.175 |
| Unit Box Width | 0.17 |
| Fog proof | Yes |
| Form factor | Turret |
| Housing material | Metal |
| International Protection (IP) code | IP67 |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Protection features | Waterproof |
| Alarm input/output | Yes |
| Built-in light | Yes |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Dynamic range | 120 dB |
| Placement supported | Indoor & outdoor |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Adjustment shutter speed | Auto/Manual |
| Angle of rotation | 360 ° |
| Camera shutter speed | 1/3 – 1/100000 s |
| Camera shutter type | Electronic |
| Lens viewing angle, diagonal | 137 – 40 ° |
| Lens viewing angle, horizontal | 113 – 36 ° |
| Lens viewing angle, vertical | 57 – 20 ° |
| Minimum illumination | 0 lx |
| Number of Privacy masking areas | 4 |
| Pan range | 0 – 360 ° |
| Tilt angle range | 0 – 78 ° |
| White balance | Auto/Manual/Natural/Outdoor/Street lamp |
| Number of sensors | 1 |
| Optical sensor size | 1/2.7 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Closest focusing distance | 1.5 m |
| Detect distance (tele) | 186.6 m |
| Detect distance (wide) | 65.2 m |
| Focal length range | 2.7 – 13.5 mm |
| Identify distance (tele) | 18.7 m |
| Identify distance (wide) | 6.5 m |
| Maximum aperture number | 1 |
| Number of lenses | 1 |
| Observe distance (tele) | 74.6 m |
| Observe distance (wide) | 26.1 m |
| Recognize distance (tele) | 37.3 m |
| Recognize distance (wide) | 13 m |
| B/W night vision distance | 50 m |
| LED type | IR/White |
| Night vision | Yes |
| Night vision distance | 50 m |
| Number of illumination LEDs | 4 |
| Back Light Compensation (BLC) | Yes |
| Bit rate | 3 Kbps – 16384 Kbps |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Gain control type | Auto/Manual |
| Highlight Compensation (HLC) | Yes |
| Maximum resolution | 2960 x 1668 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Privacy masking | Yes |
| Region of Interest (ROI) encoding | Yes |
| Smart IR | Yes |
| Total megapixels | 5 MP |
| Video compression formats | H.264/H.264+/H.264B/H.265/H.265+ |
| Video streaming | Yes |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Built-in microphone | Yes |
| Built-in speaker(s) | Yes |
| Signal-to-Noise Ratio (SNR) | 56 dB |
| Voice codecs | G.711a/G.711Mu/G.726/PCM |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3af |
| Number of users | 20 user(s) |
| Wi-Fi | No |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 512 GB |
| RAM capacity | 1000 MB |
| ROM capacity | 256 MB |
| Ethernet LAN (RJ-45) ports | 1 |
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| Intelligent Video Surveillance (IVS) system features | Intrusion/Tripwire |
| Mirror | Yes |
| Network access storage (NAS) | Yes |
| Privacy protection | Yes |
| Video motion detection | Yes |
| Management software | Smart PSS, DSS, DMSS |
| Web browser | Yes |
| DC output voltage | 12 |
| Power consumption (max) | 8.5 W |
| Power consumption (Power over Ethernet (PoE)) | 10.6 W |
| Power consumption (typical) | 4 W |
| Power source type | DC,PoE |
| Operating relative humidity (H-H) | 0 – 95 % |
| Operating temperature (T-T) | -30 – 60 °C |
| Storage relative humidity (H-H) | 0 – 95 % |
| Storage temperature (T-T) | -40 – 60 °C |
| Mobile operating systems supported | Android/iOS |
| Diameter | 122 mm |
| Height | 127.6 mm |
| Weight | 885 g |
| Package weight | 1060 g |
| Number of cameras | 1 |
| Browser supported | IE: IE8, IE9, IE11 Chrome Firefox, Safari |
| Lens mount interface | M12 |
| Number of video streams | 2 |
| Model | IPC-HDW3549H-ZAS-PV-27135 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.005058 cubm |
| Unit Calculated Weight | 1.1 kg |
