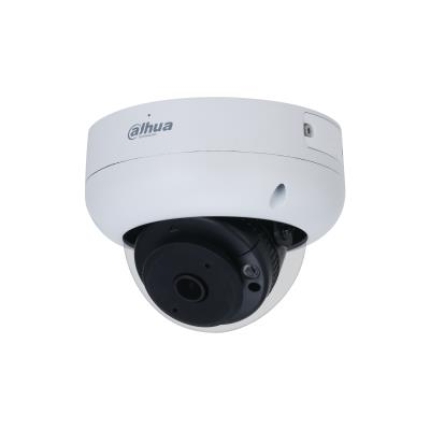

NET CAMERA 4MP IR DOME AI/IPC-HDBW3441R-AS-P-0210B DAHUA

Series Overview
With advanced deep learning algorithm, Dahua WizSense 3 Series
network camera supports intelligent functions, such as perimeter
protection and smart motion detection. With starlight technology, this
series camera provides a better image effect in the condition of low
illuminance.

Launched by Dahua Technology, WizSense is a series of AI products and
solutions that adopt independent AI chip and deep learning algorithm.
It focuses on human and vehicle with high accuracy, enabling users to
fast act on defined targets. Based on Dahua’s advanced technologies,
WizSense provides intelligent, simple and inclusive products and
solutions.

Functions
EPTZ
With advanced target detection and tracking algorithms, Dahua EPTZ
technology can simultaneously zoom in and track multiple humans and
vehicles that trigger alarms. It provides rich details and a panoramic
view at the same time.

SMD 3.0
With intelligent algorithm, Dahua Smart Motion Detection technology
can categorize the targets that trigger motion detection and filter the
motion detection alarm triggered by non-concerned targets to realize
effective and accurate alarm.

Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart
encoding technology realizes the higher encoding efficiency than H.265
and H.264, provides high-quality video, and reduces the cost of storage
and transmission.

Perimeter Protection
With deep learning algorithm, Dahua Perimeter Protection technology
can recognize human and vehicle accurately. In restricted area (such
as pedestrian area and vehicle area), the false alarms of intelligent
detection based on target type (such as tripwire, intrusion) are largely
reduced.

• 4-MP 1/2.7″ CMOS starlight-grade image sensor, low luminance, and high definition image
• Outputs 4 MP (2688 × 1520) @25/30 fps, and supports max. 5 MP (2880 × 1620) @20 fps
• H.265 codec, high compression rate, ultra-low bit rate
• Built-in IR LED, and the max. illumination distance is 15 m
• ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
• Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
• Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
• Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
• Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built in MIC
• 12 VDC/PoE power supply
• IP67, IK10 protection
• EPTZ: Enlarge and track the targets of intelligent alarms
• SMD 3.0

Dahua Technology WizSense DH-IPC-HDBW3441R-AS-P. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Assorted colours, Form factor: Dome. Minimum illumination: 0.0005 lx, Angle of rotation: 355°, Lens viewing angle, horizontal: 170°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7″), Number of effective pixels (H x V): 2880 x 1620 pixels. Fixed focal length: 2.1 mm, Closest focusing distance: 0.6 m
