MONITOR ACC WALL MOUNT/23-42″ WL70-550BL12 NEOMOUNTS
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $40
-
DHL Courier delivery
DHL courier will deliver to the specified address
1-2 Days
From $40
116.68 €
Liko 4
Liko 4
Description

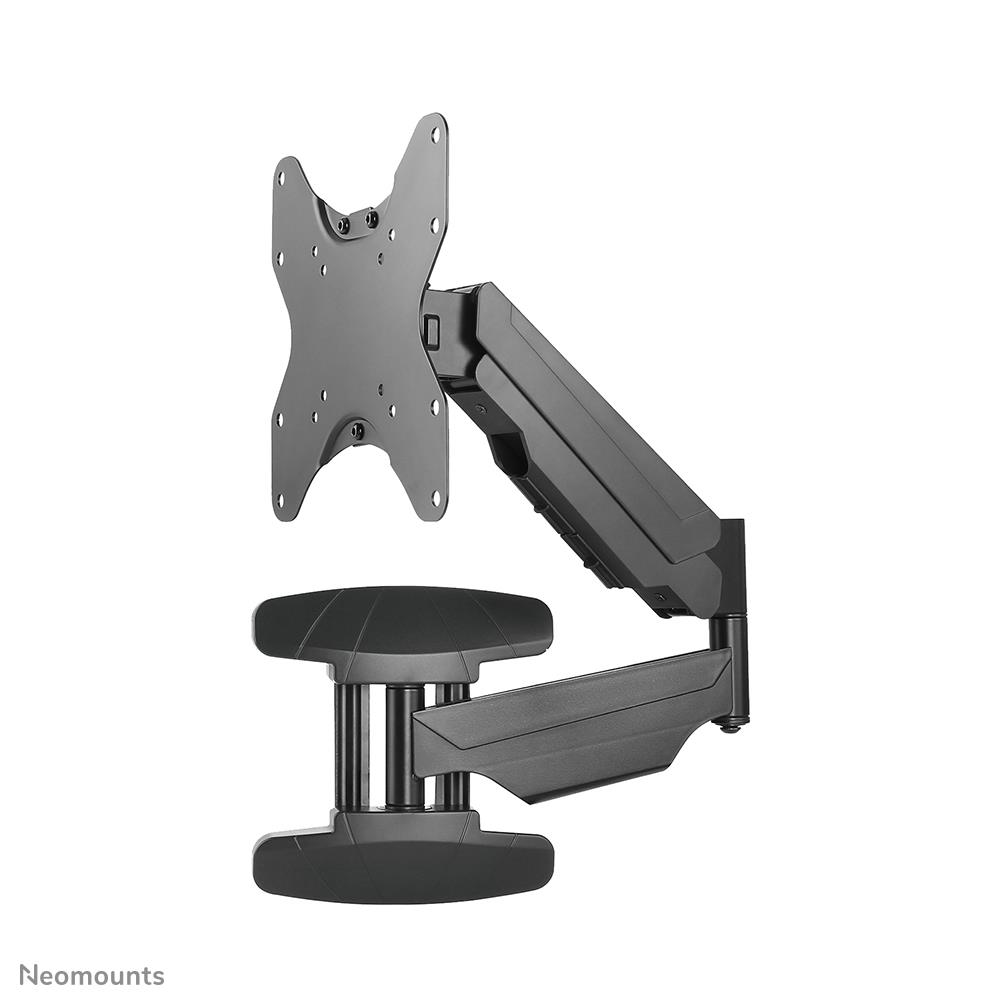

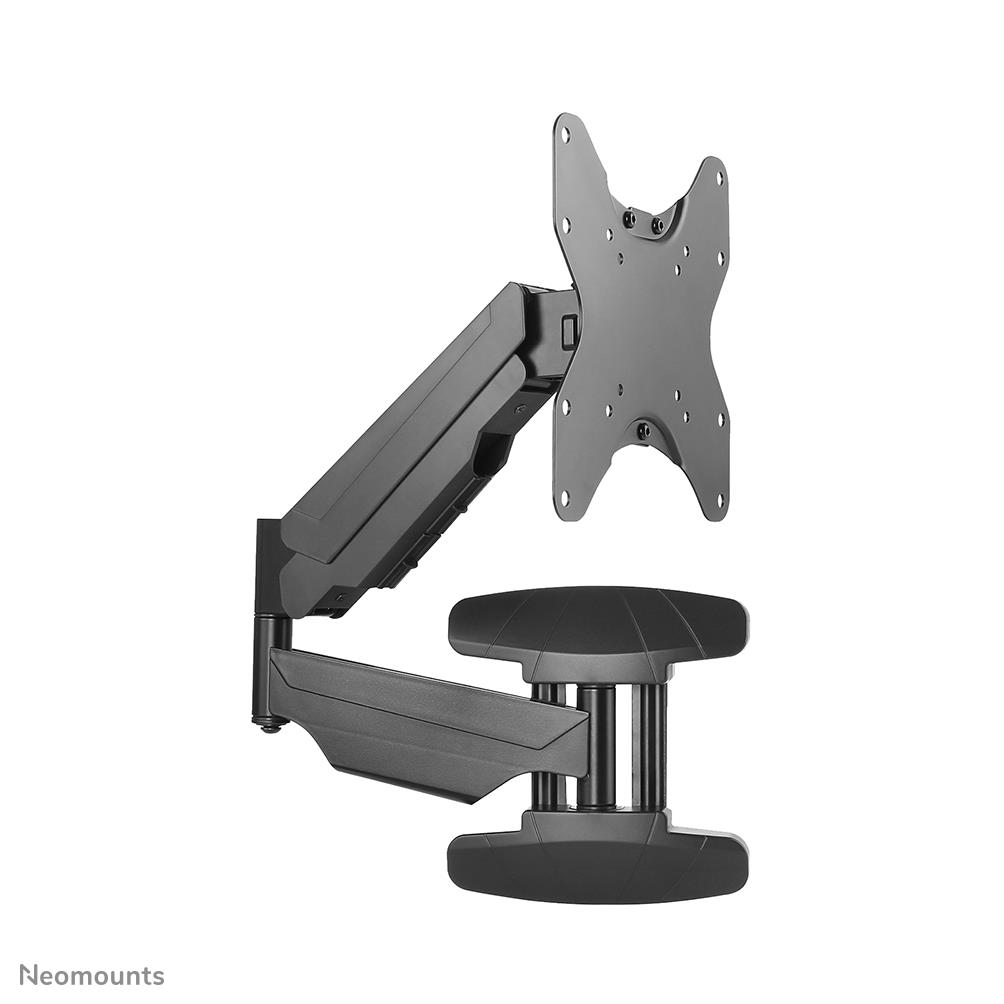

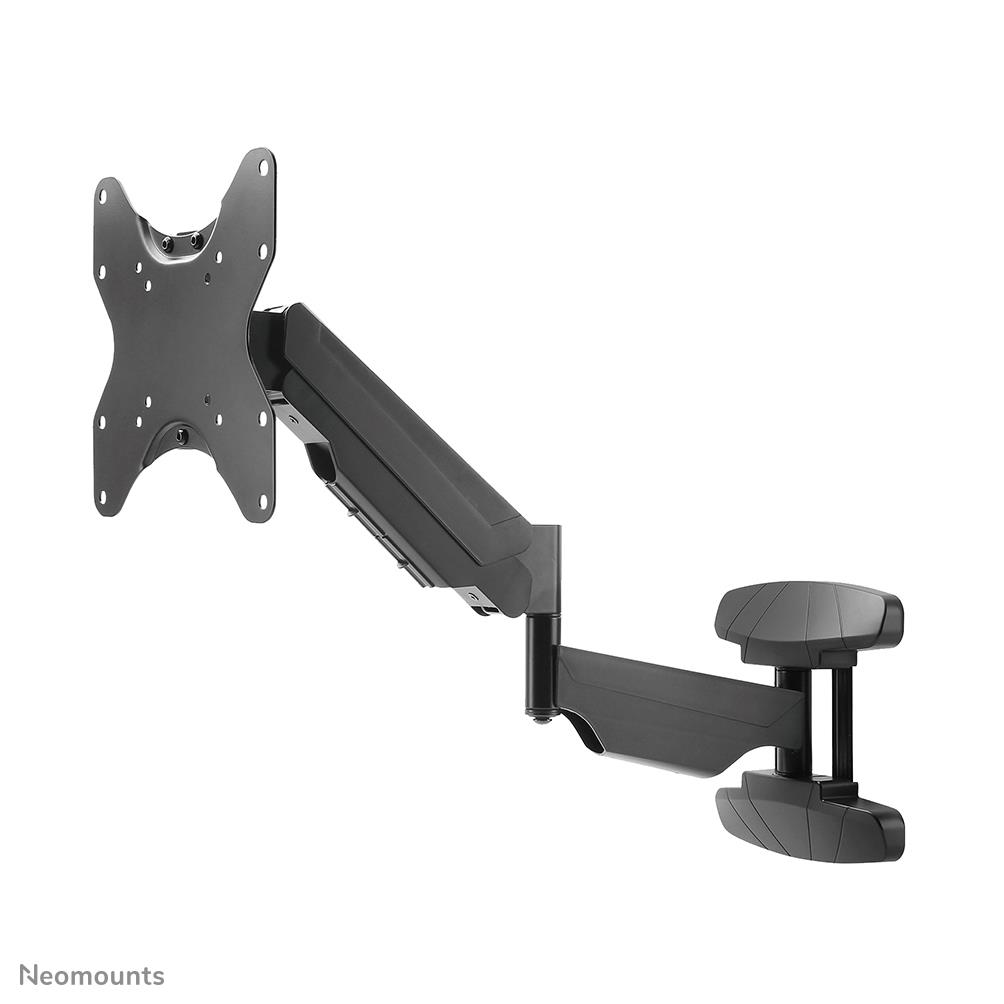

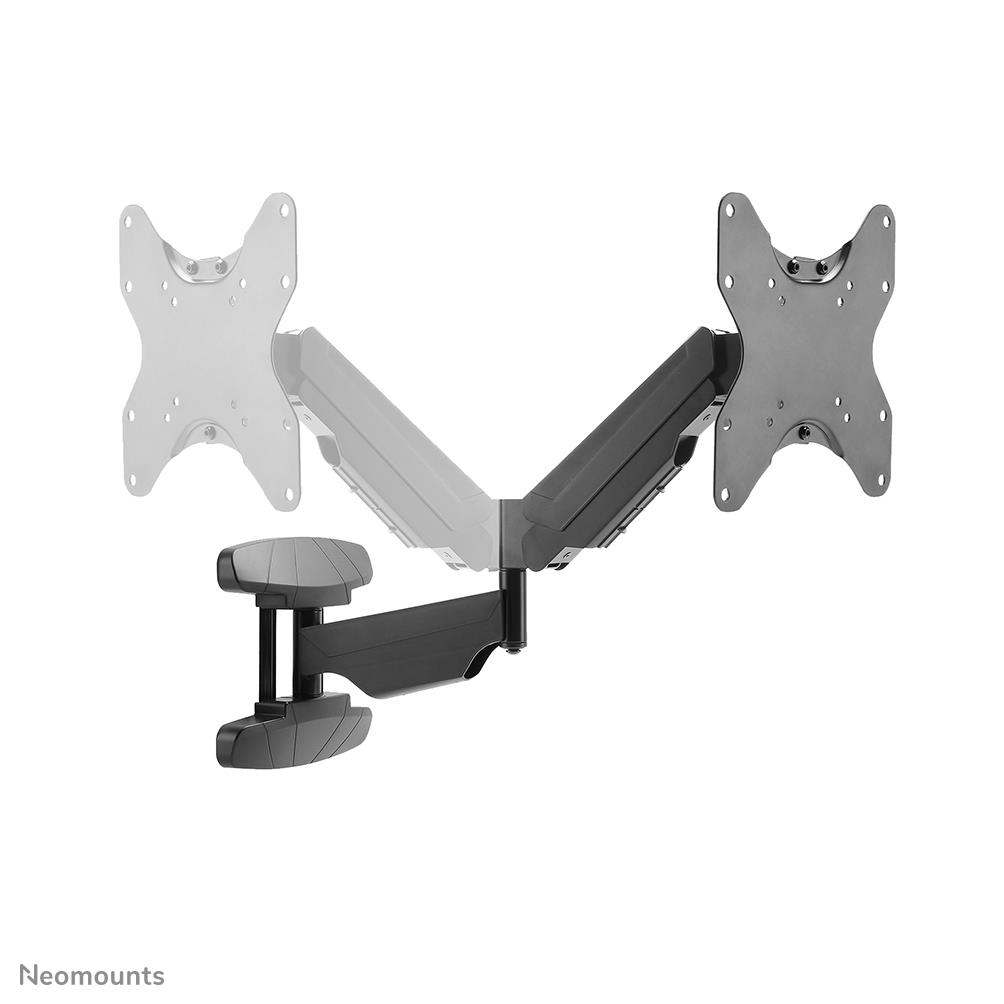

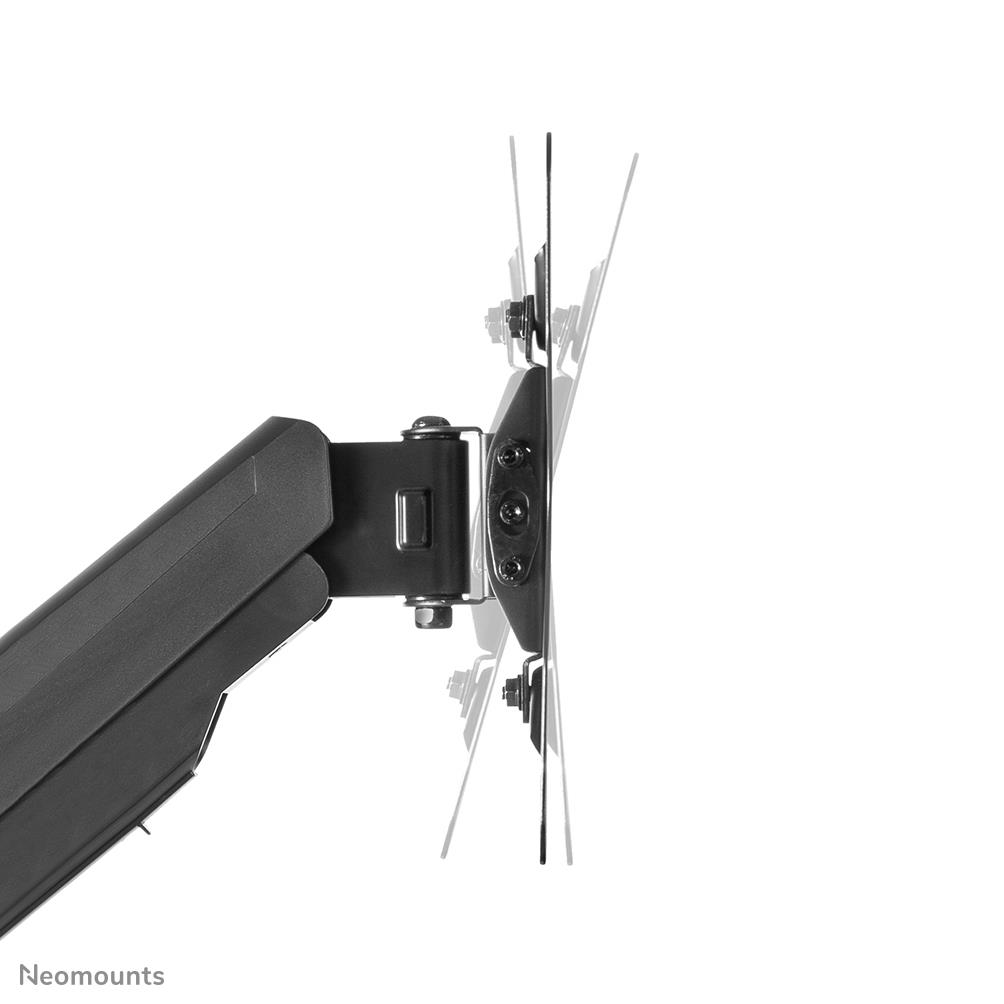

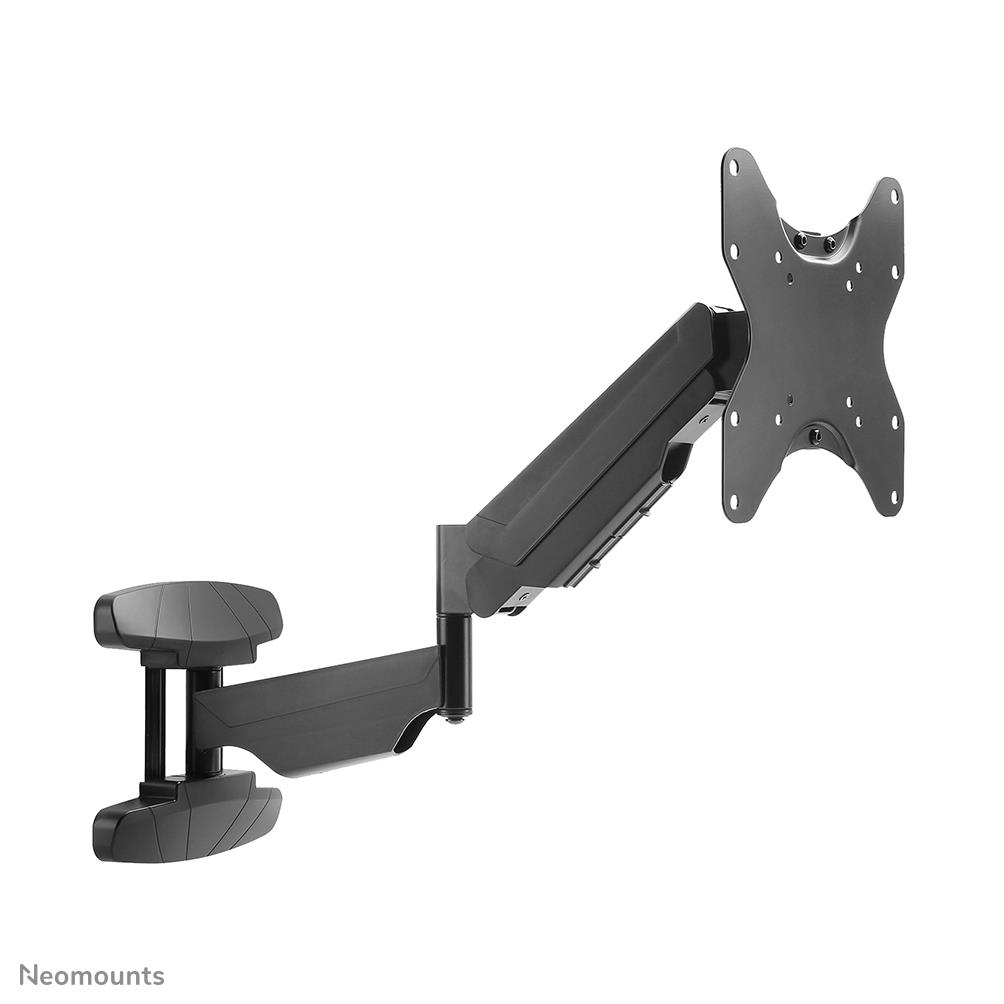

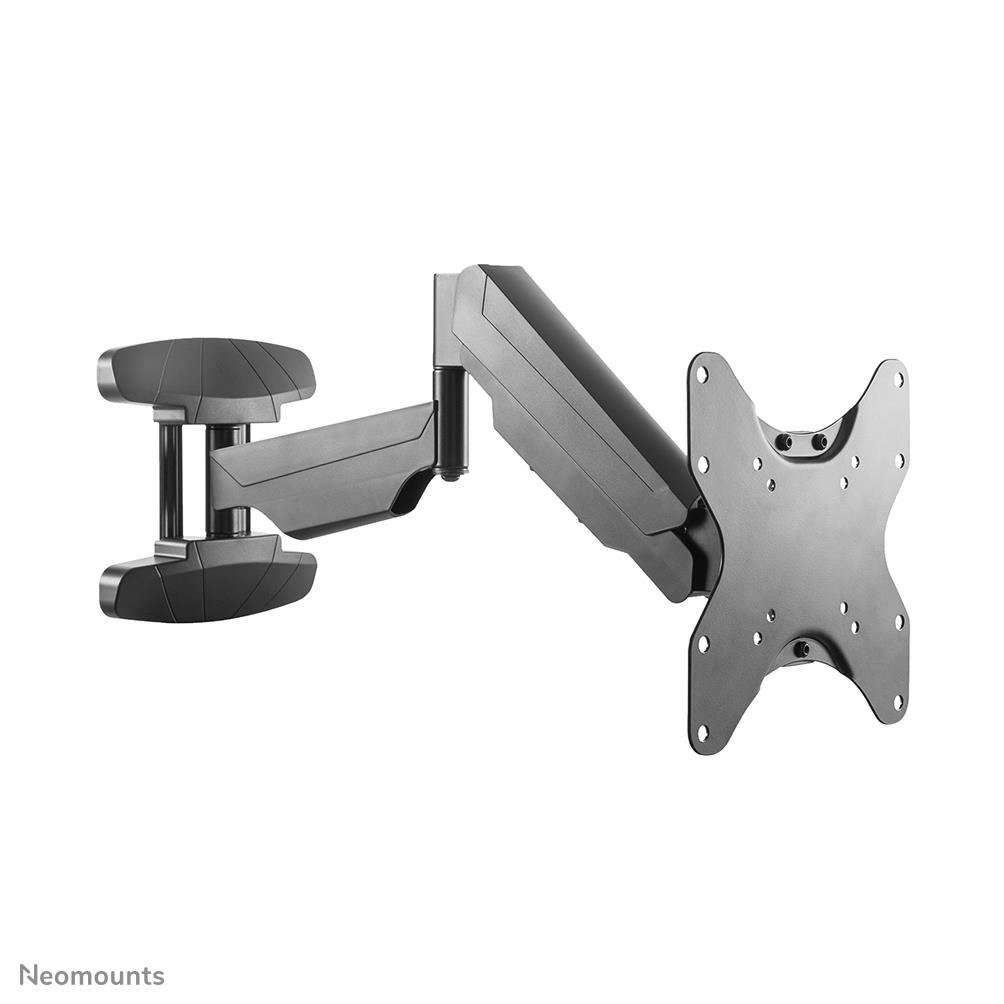

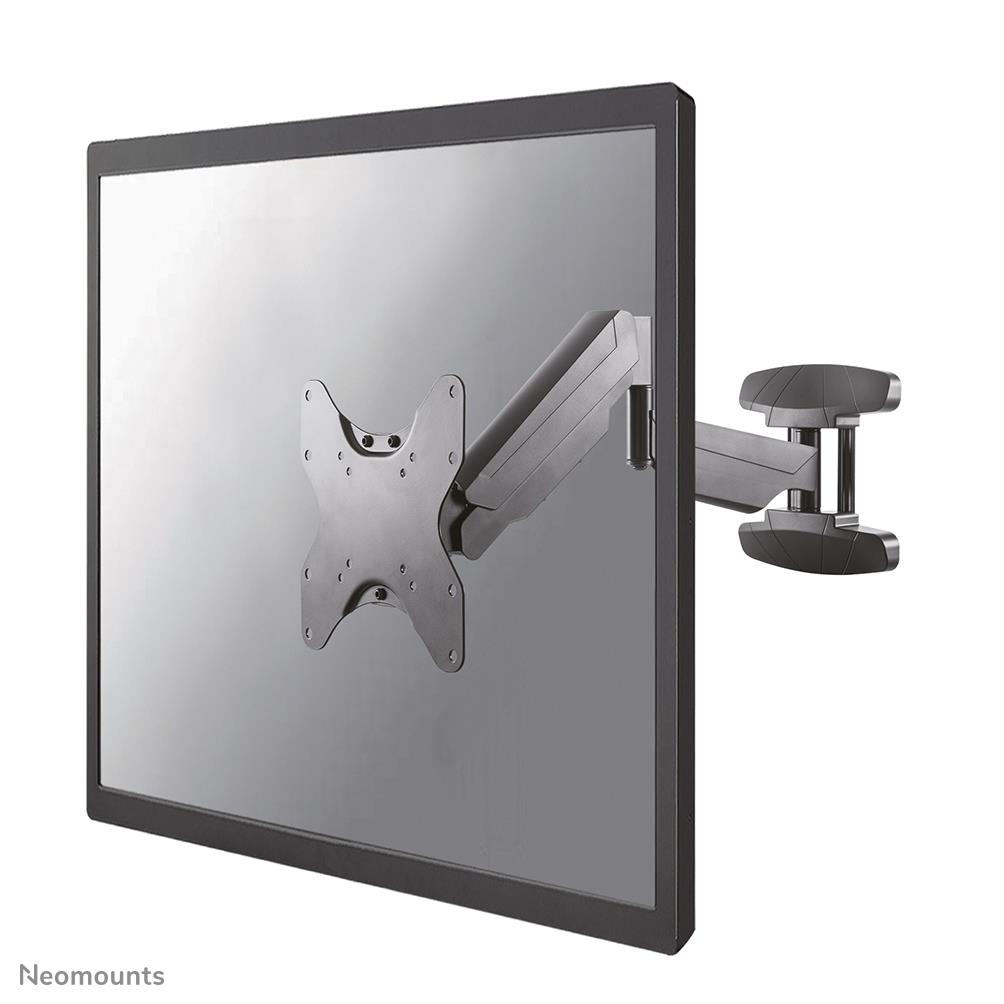

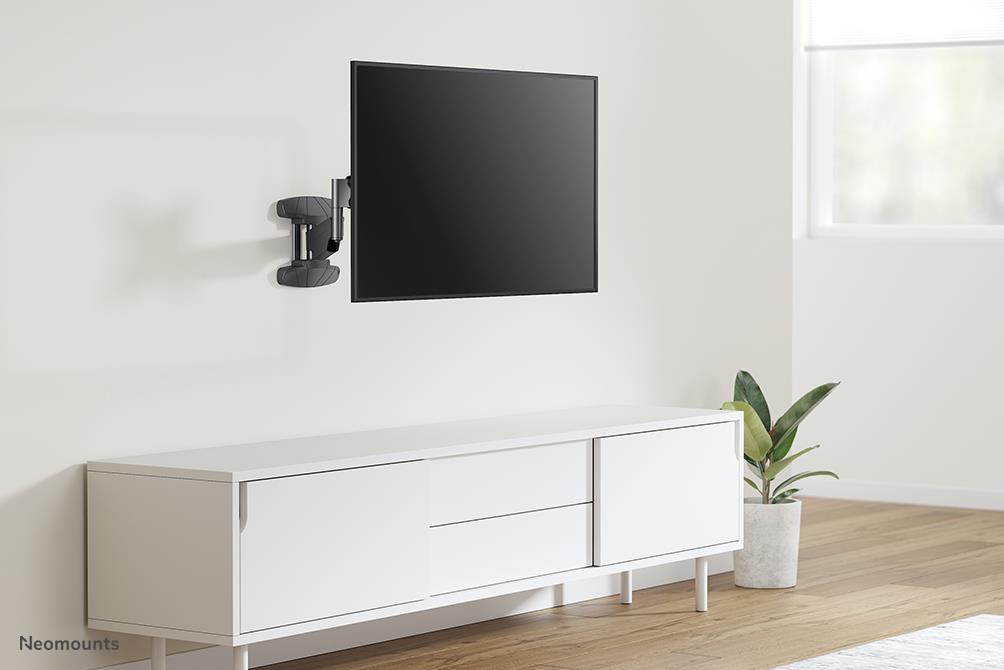

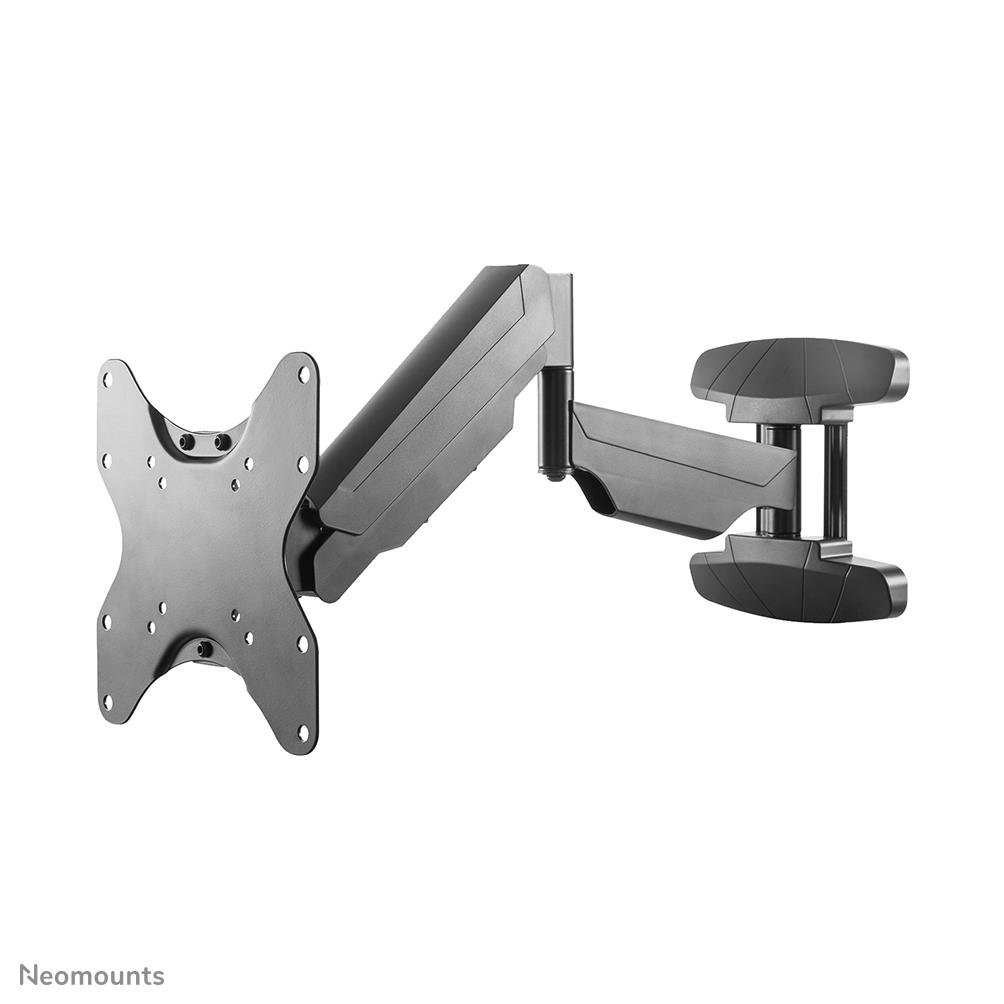

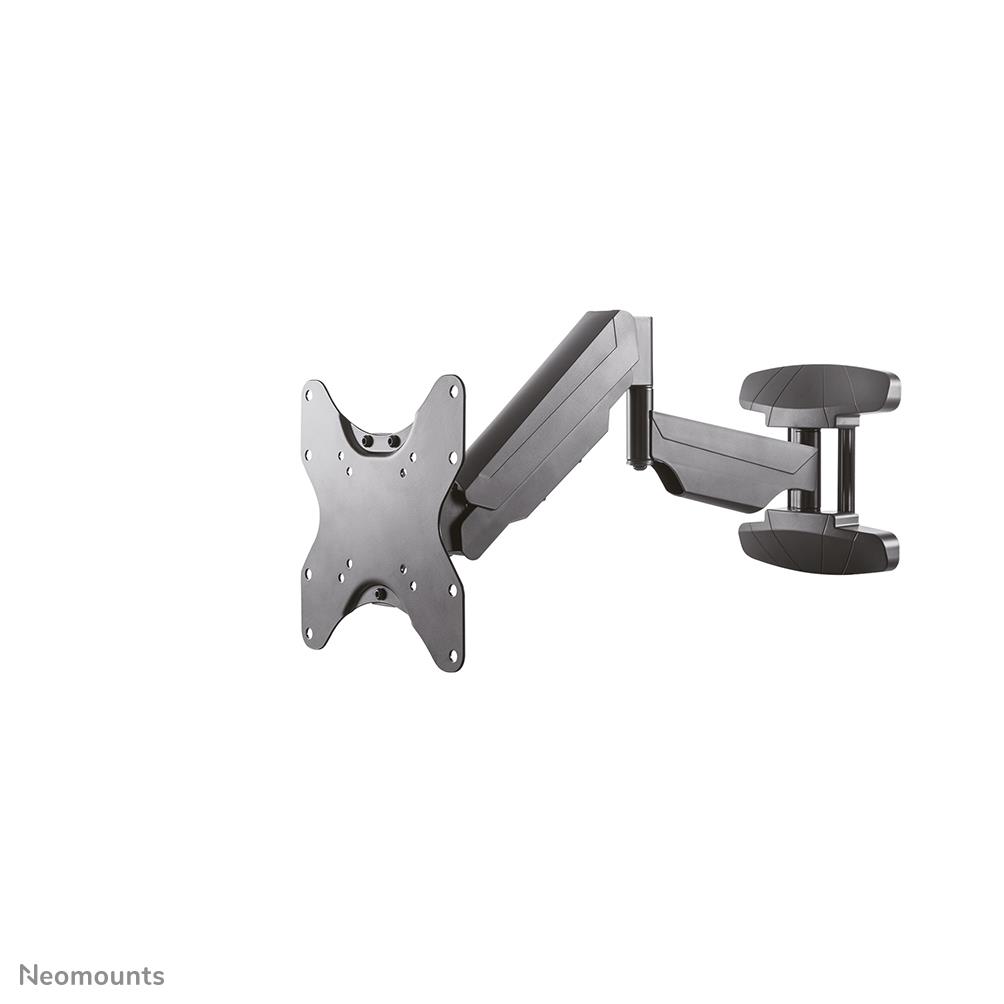

The Neomounts WL70-550BL12 is a full motion wall mount for flat screens up to 42″ with a maximum weight capacity of 30 kg. The versatile tilt (20°) and swivel (180°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.

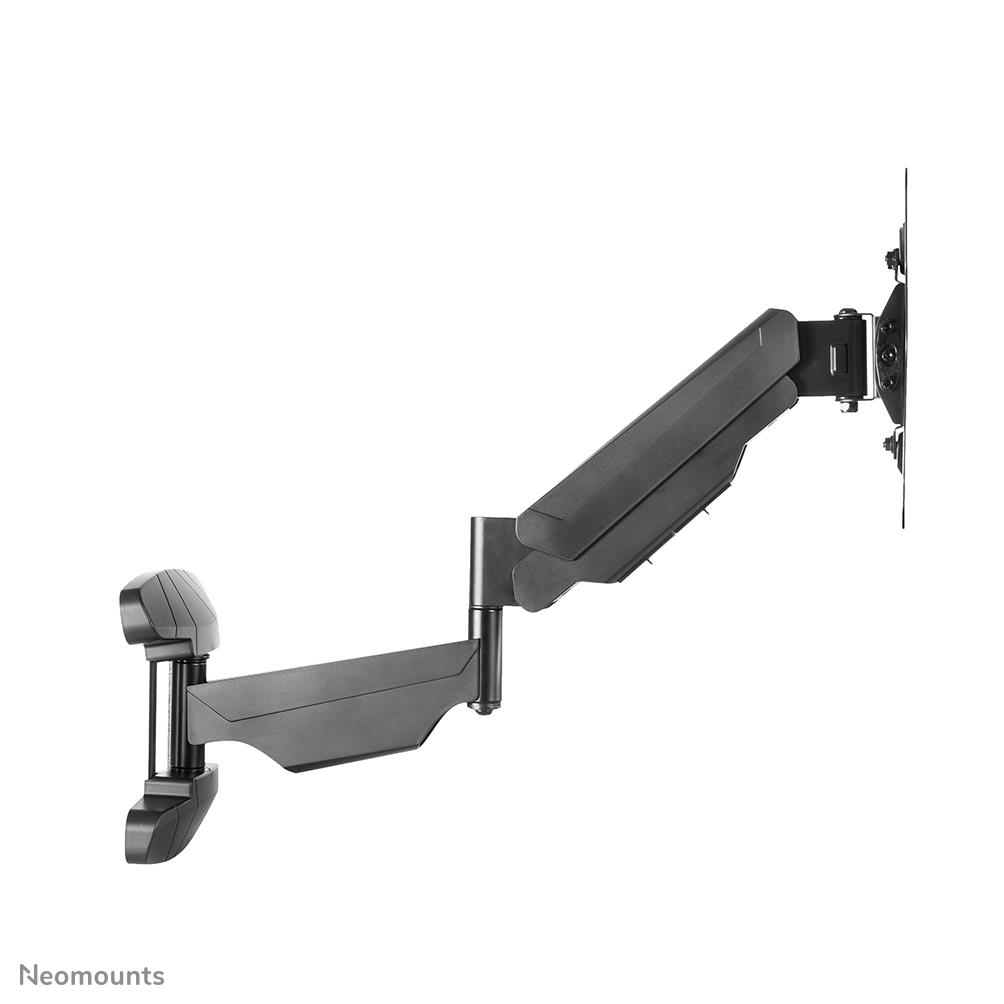

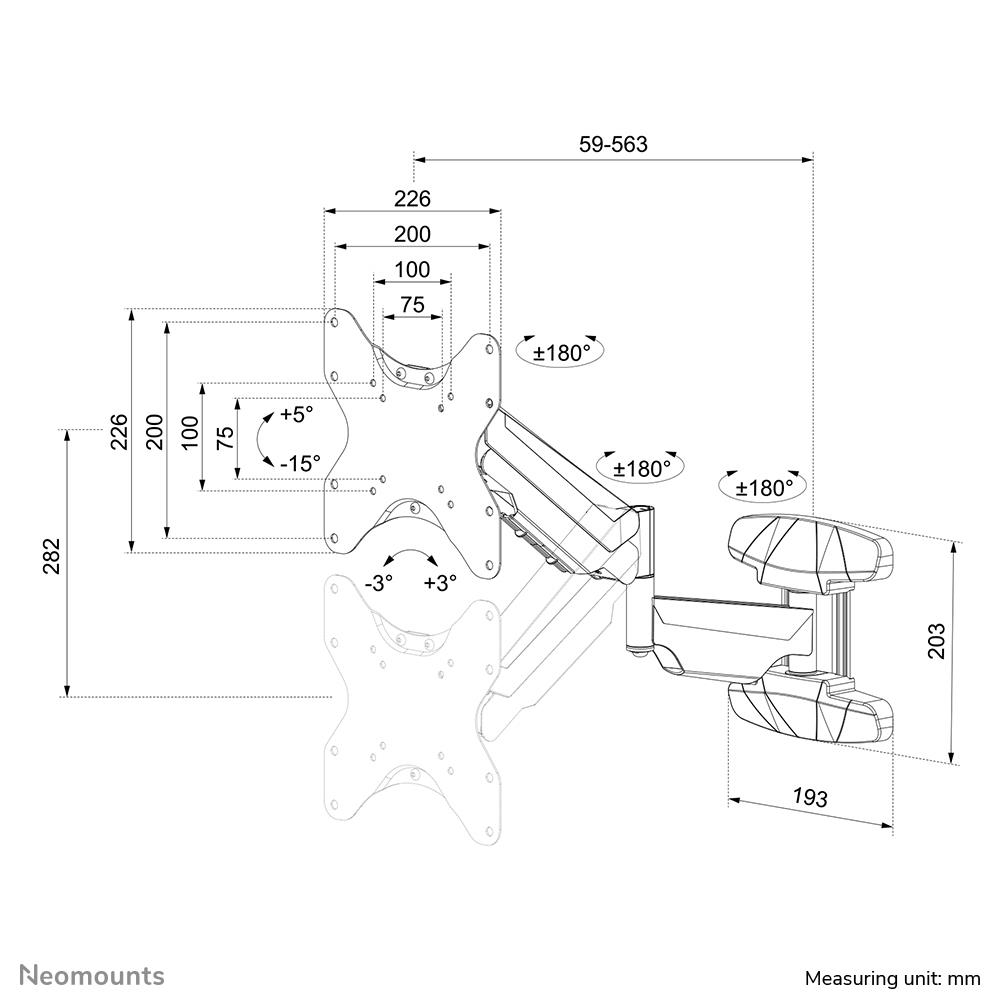

The WL70-550BL12 has a depth of 5,9-56,3 cm and is suitable for screens that meet VESA hole pattern 75×75 to 200×200 mm.

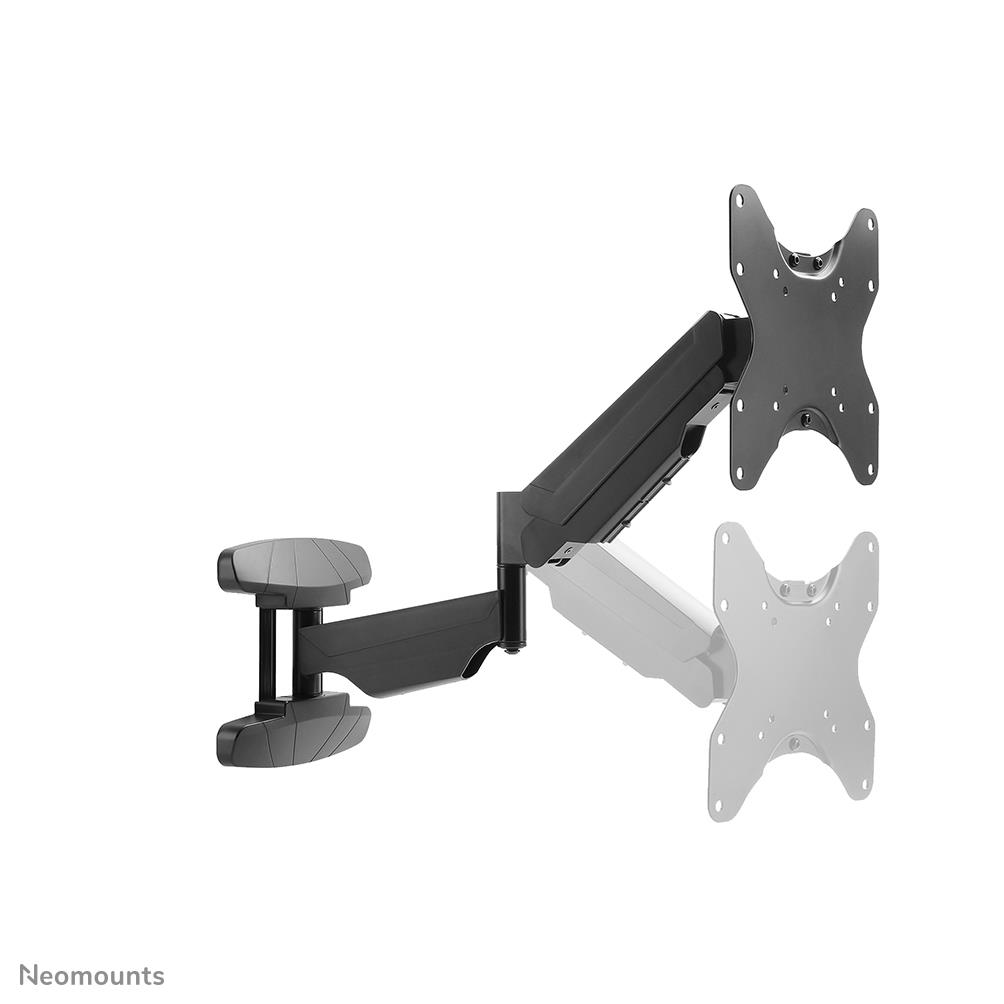

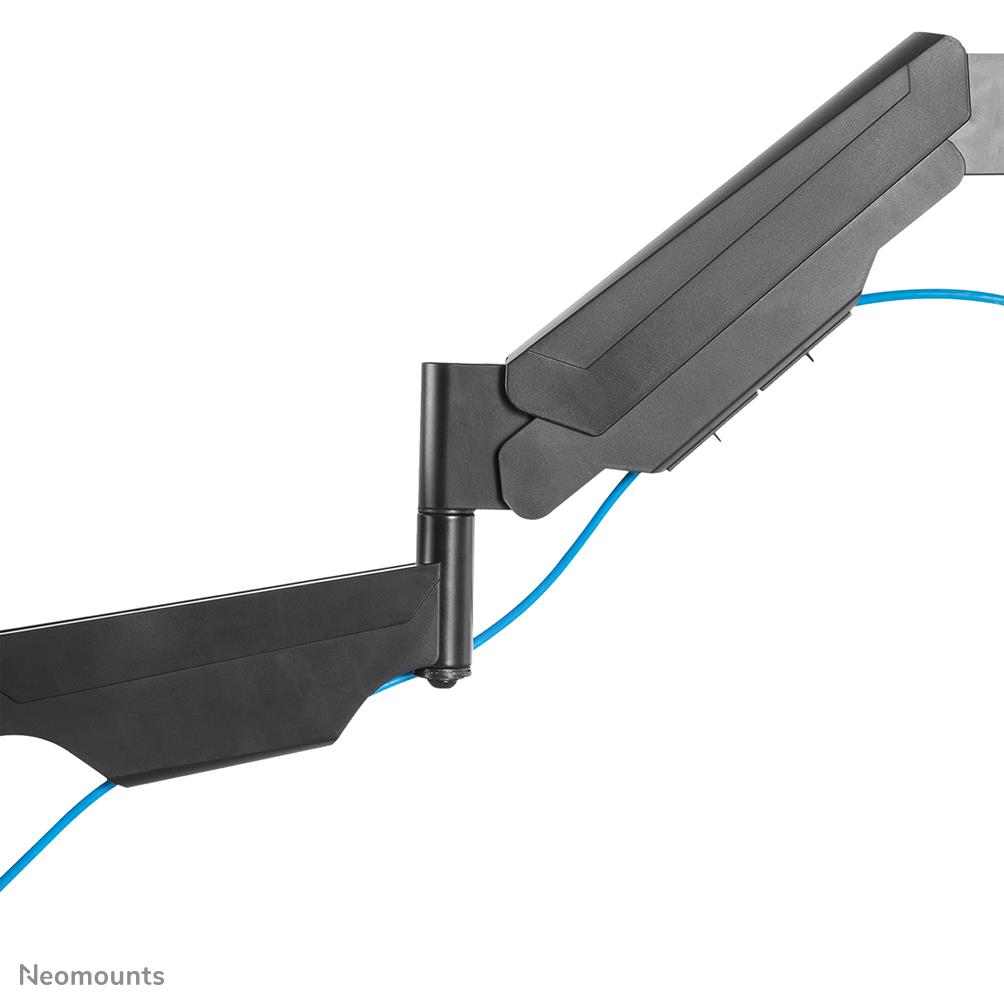

The mount can be easily adjusted in height using the gas spring. The cable management system allows you to route and secure any loose cables at the back of the screen. Additionally, the mount features an Easy-release VESA, that allows you to attach the TV in a wink of an eye.
Specifikacijos
| Vendor Homepage | https://www.neomounts.com/default.asp?pageid=44&artdetail=WL70-550BL12 |
|---|---|
| Category Code | TMS |
| Unit Box Height | 0.08 |
| Unit Box Length | 0.5 |
| Unit Box Width | 0.37 |
| Maximum screen size | 42 " |
| Maximum VESA mount | 200 x 200 mm |
| Maximum weight capacity | 30 kg |
| Maximum weight capacity (per display) | 30 kg |
| Minimum screen size | 23 " |
| Minimum VESA mount | 75 x 75 mm |
| Mounting type | Wall |
| Number of displays supported | 1 |
| Panel mounting interface | 100 x 100/200 x 100/200 x 200/75 x 75 mm |
| Angle of rotation | 6 ° |
| Cable management | Yes |
| Distance to the wall (max) | 563 mm |
| Distance to the wall (min) | 59 mm |
| Height adjustment | Yes |
| Height adjustment range | 0 – 282 mm |
| Height adjustment type | Gas spring |
| Pivot angle | -3 – 3 ° |
| Rotating | Yes |
| Swivel angle | 180 ° |
| Swivel angle range | 0 – 180 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -15 – 5 ° |
| Housing material | Steel |
| Product colour | Black |
| Country of origin | China |
| Package net weight | 4800 g |
| Quantity per pack | 1 pc(s) |
| Depth | 563 mm |
| Depth (max) | 563 mm |
| Height | 327 mm |
| Weight | 3900 g |
| Width | 226 mm |
| Package depth | 505 mm |
| Package height | 75 mm |
| Package weight | 4800 g |
| Package width | 365 mm |
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 15500 g |
| Master (outer) case height | 245 mm |
| Master (outer) case length | 520 mm |
| Master (outer) case net weight | 11700 g |
| Master (outer) case width | 380 mm |
| Products per master (outer) case | 3 pc(s) |
| Products per pallet (EU) | 72 pc(s) |
| Minimum weight | 5 kg |
| Mounting | Screws |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.0148 cubm |
| Unit Calculated Weight | 4.65 kg |
