Description

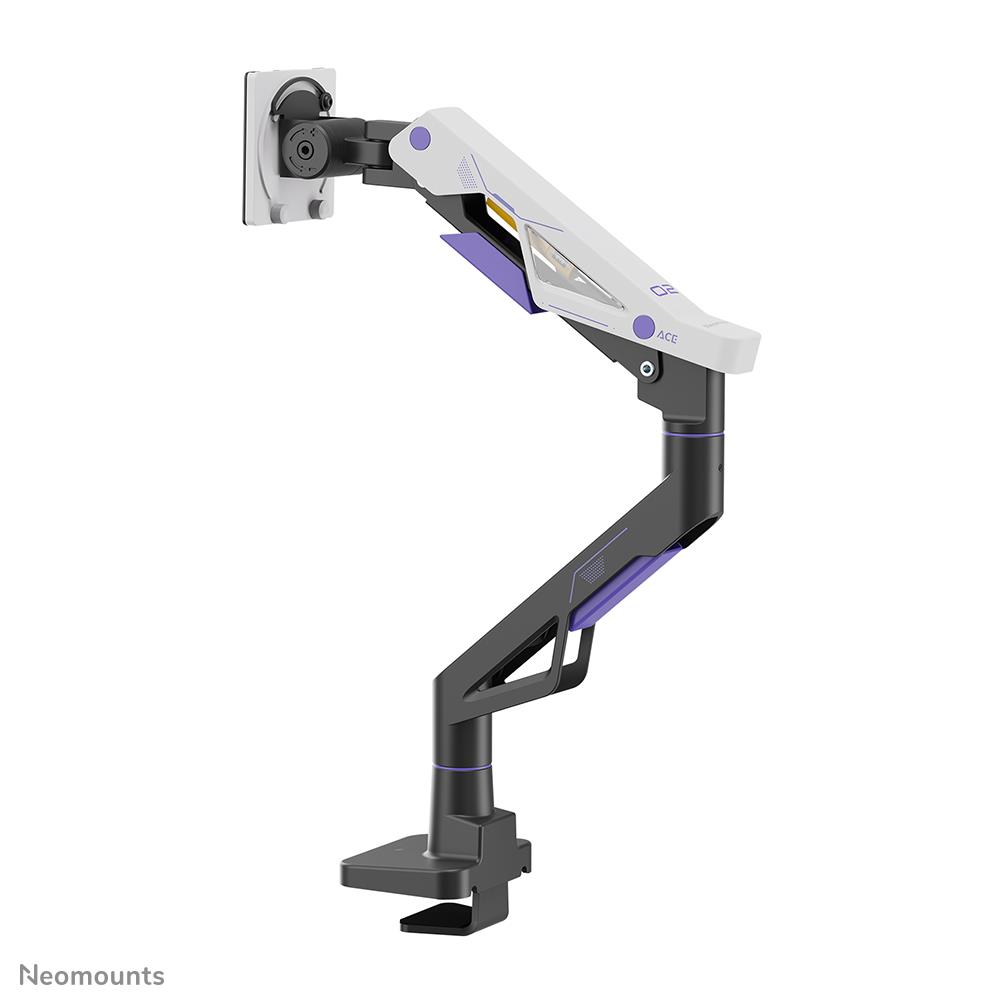

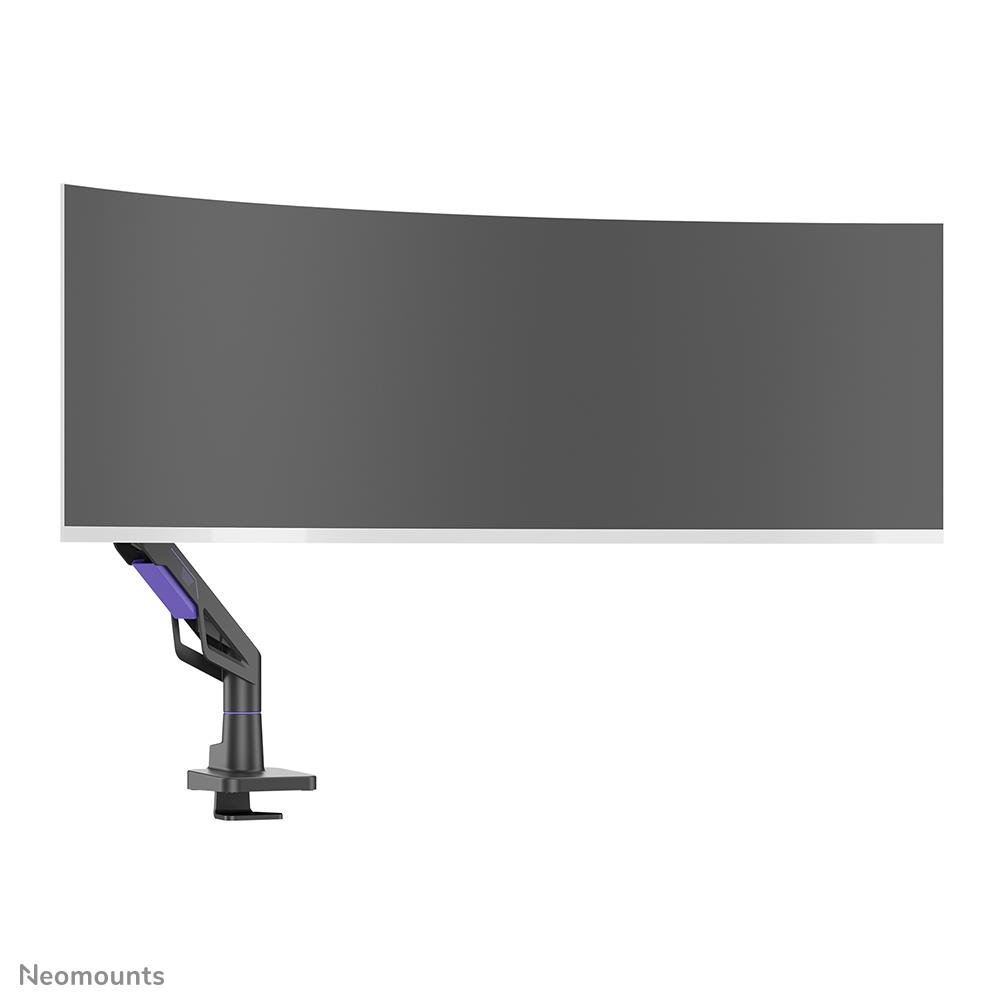

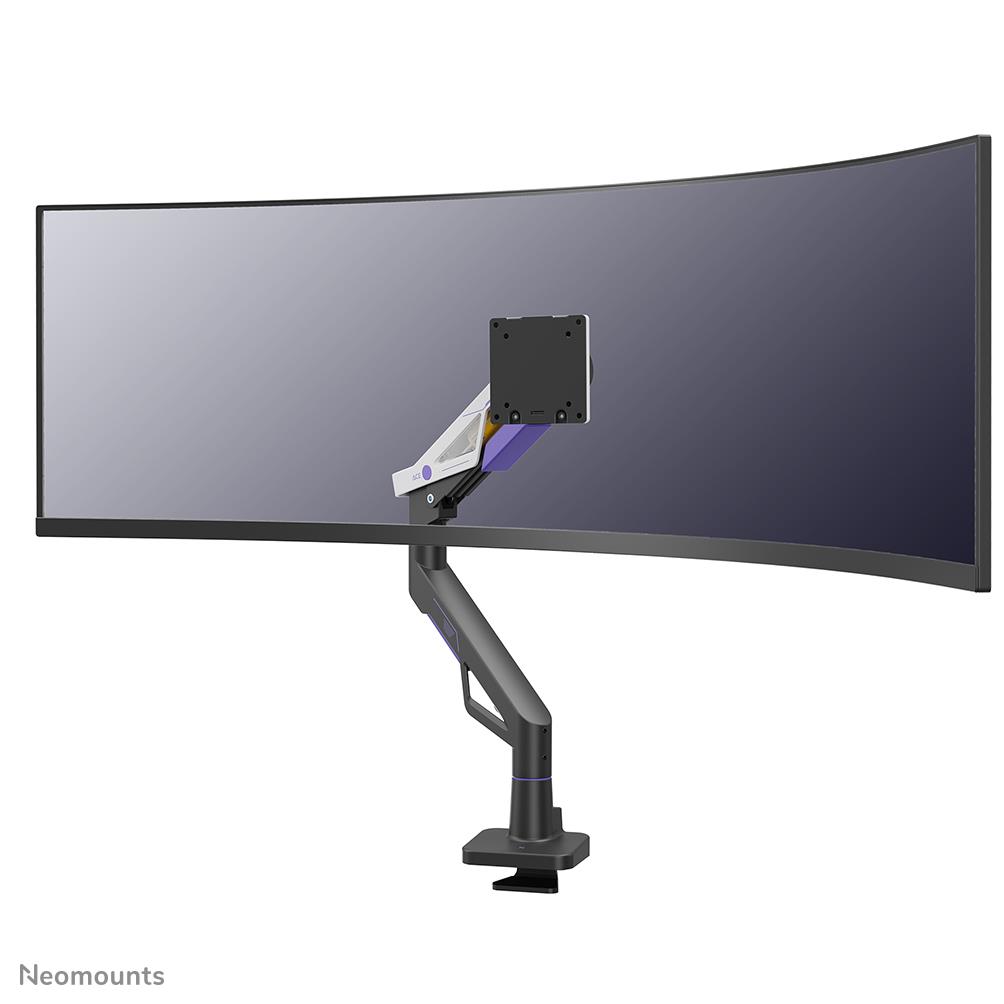

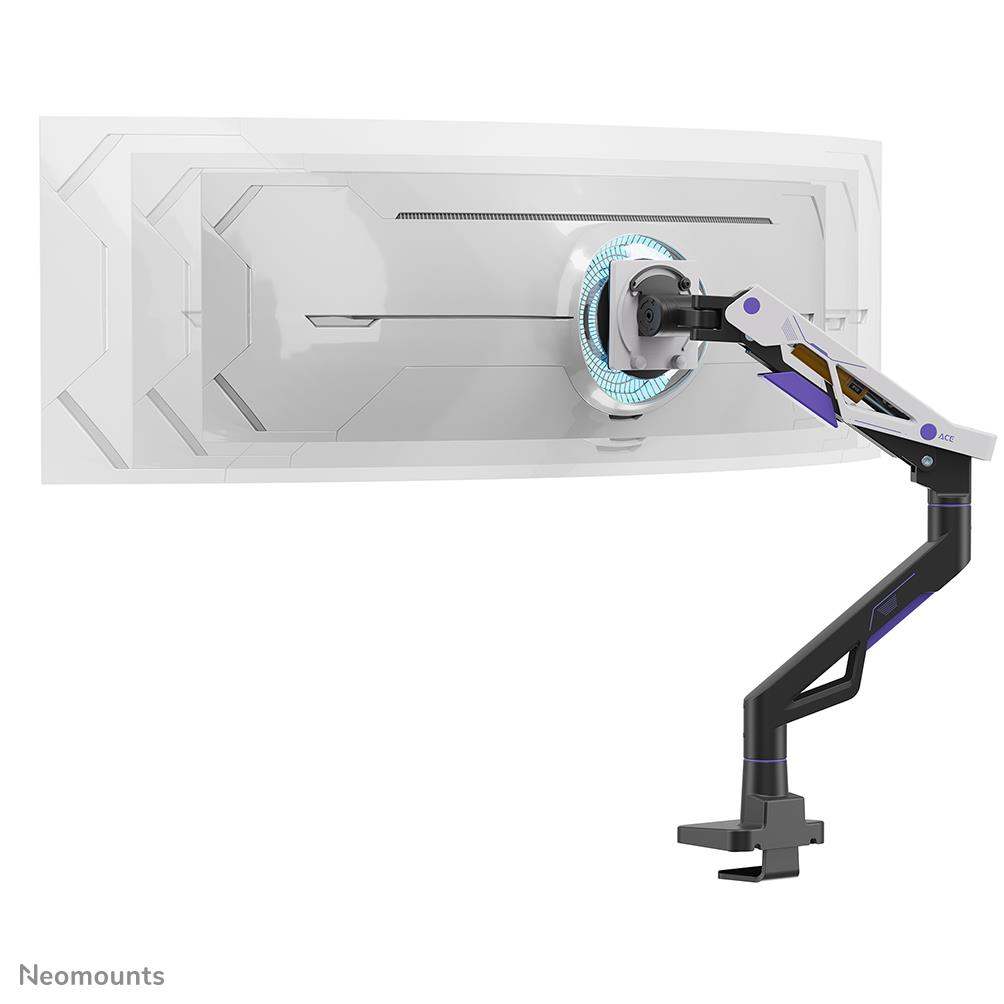

The Neomounts DS70-256BL1 ACE delivers exceptional performance and ergonomic comfort for gamers that want to take their setup to the highest level. Supporting screen sizes up to an impressive 57″, including extra-wide models like the Samsung Odyssey G9, this arm is built to handle the most ambitious set-ups. With a heavy-duty weight capacity ranging from 2 to 30 kg (and up to 24 kg for curved monitors), it ensures maximum stability even during intense gaming sessions.

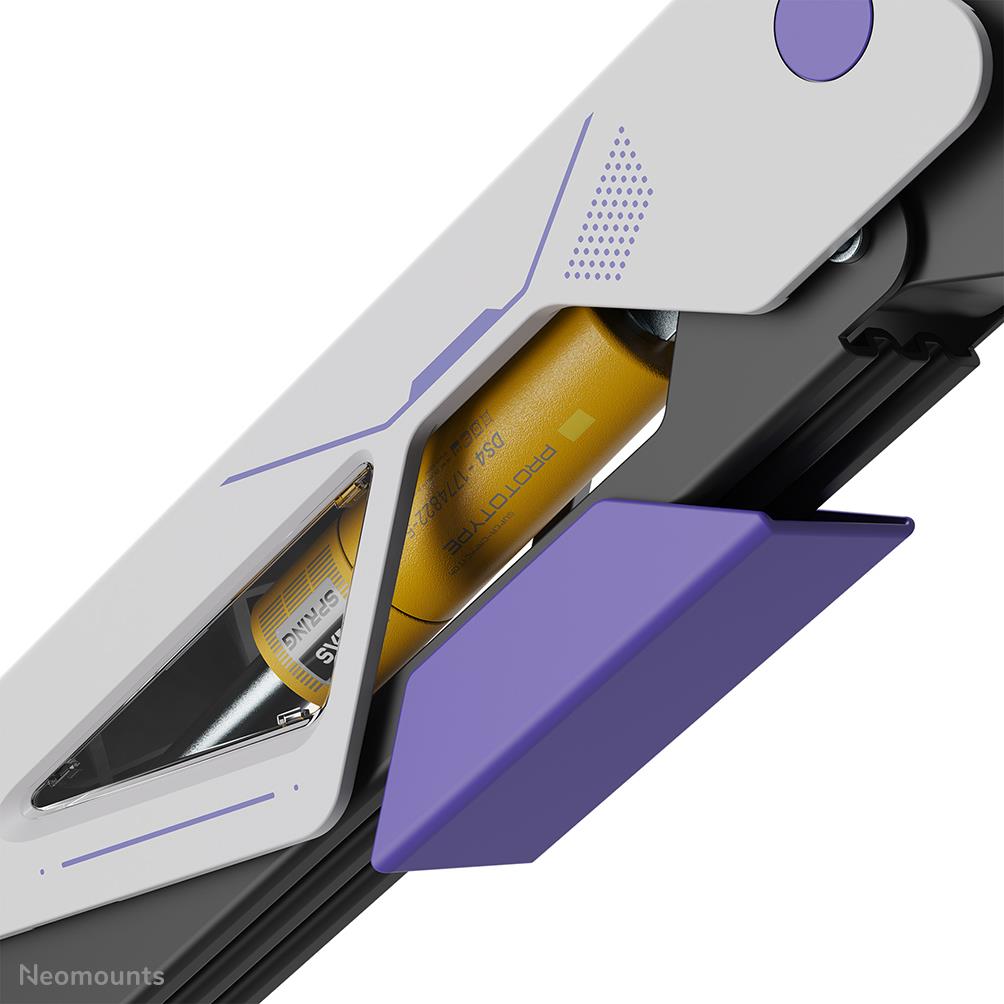

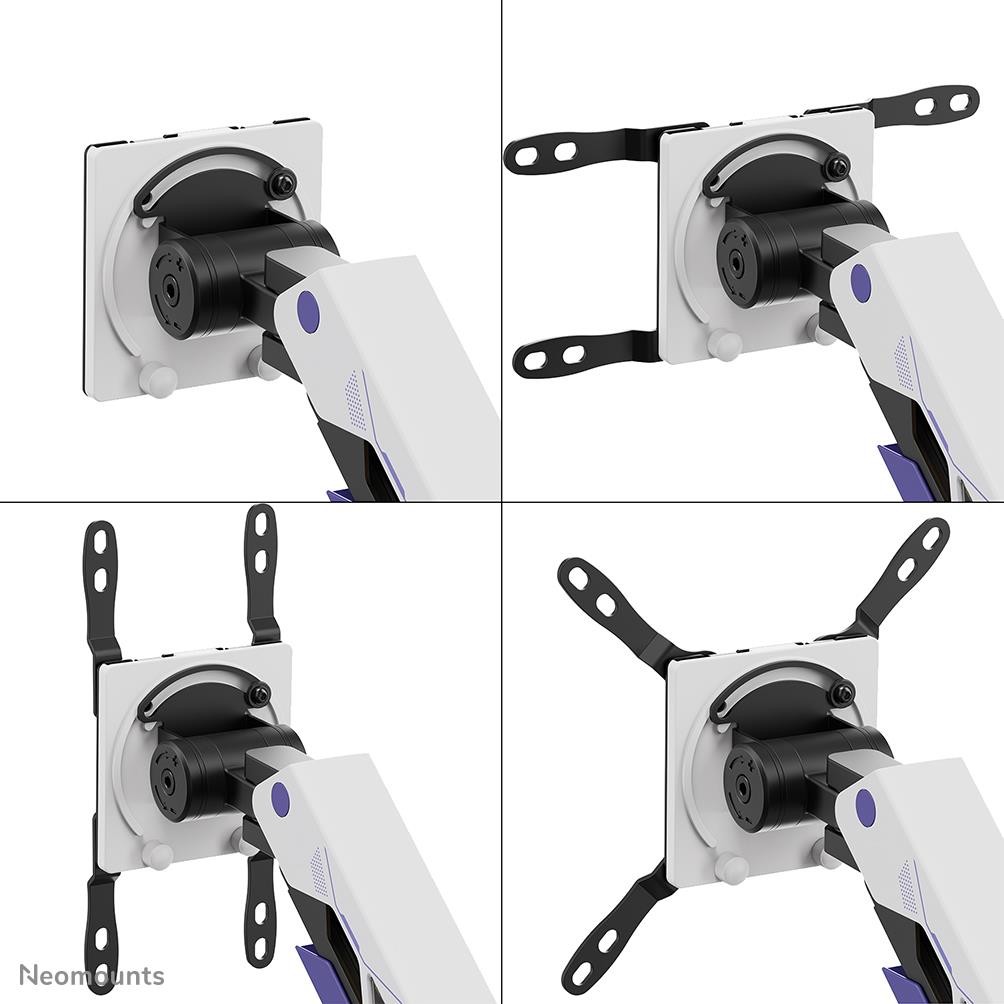

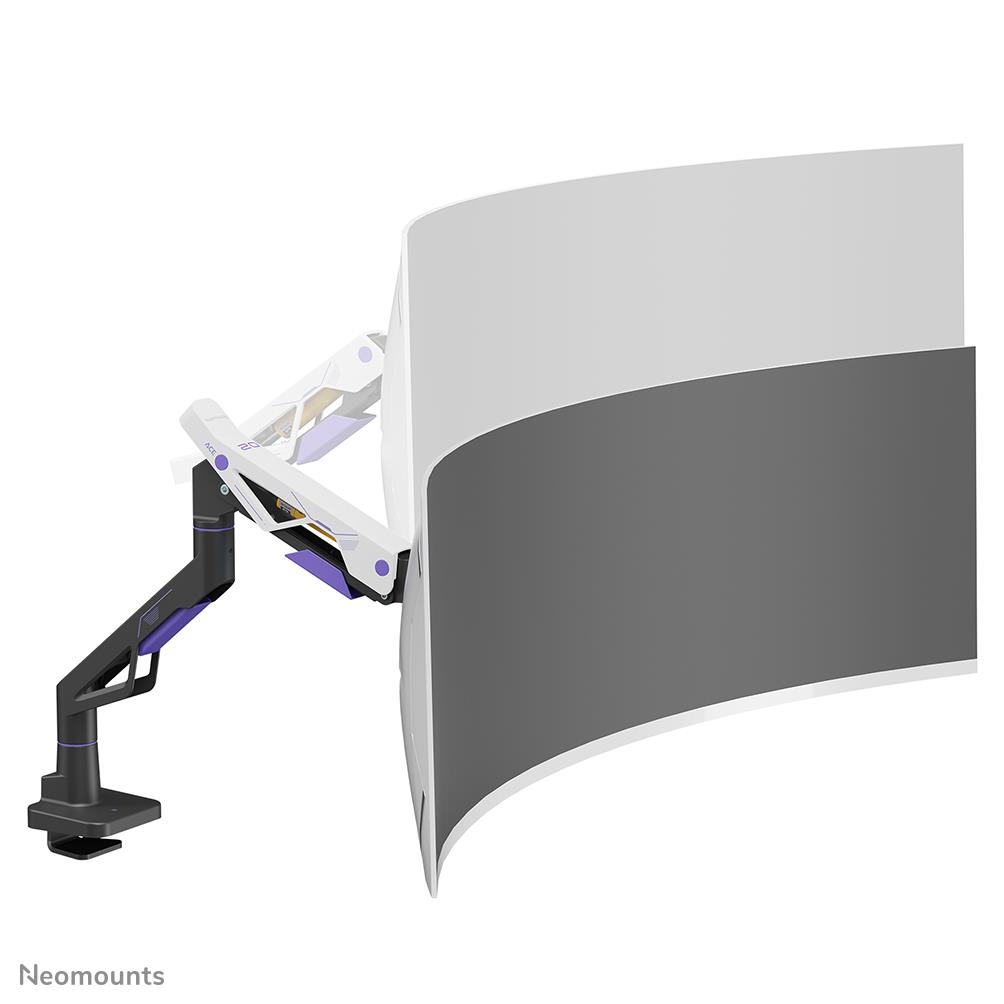

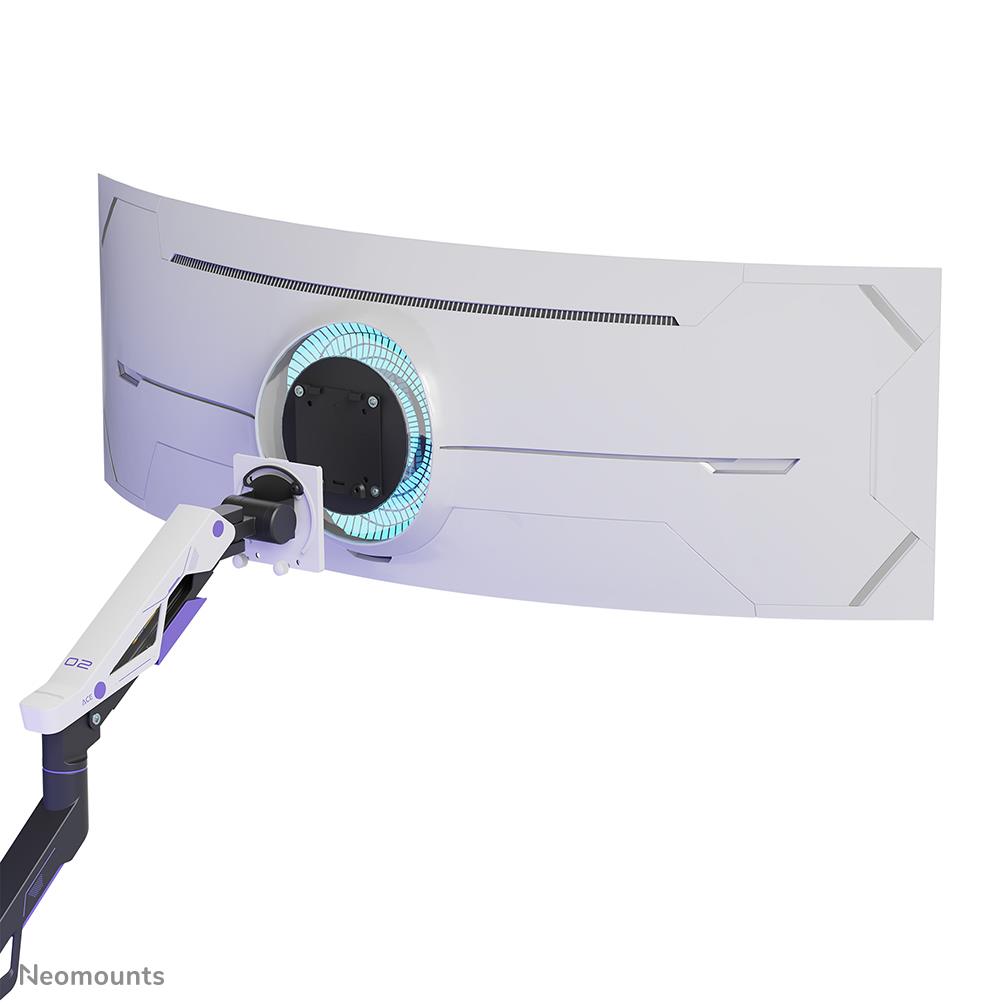

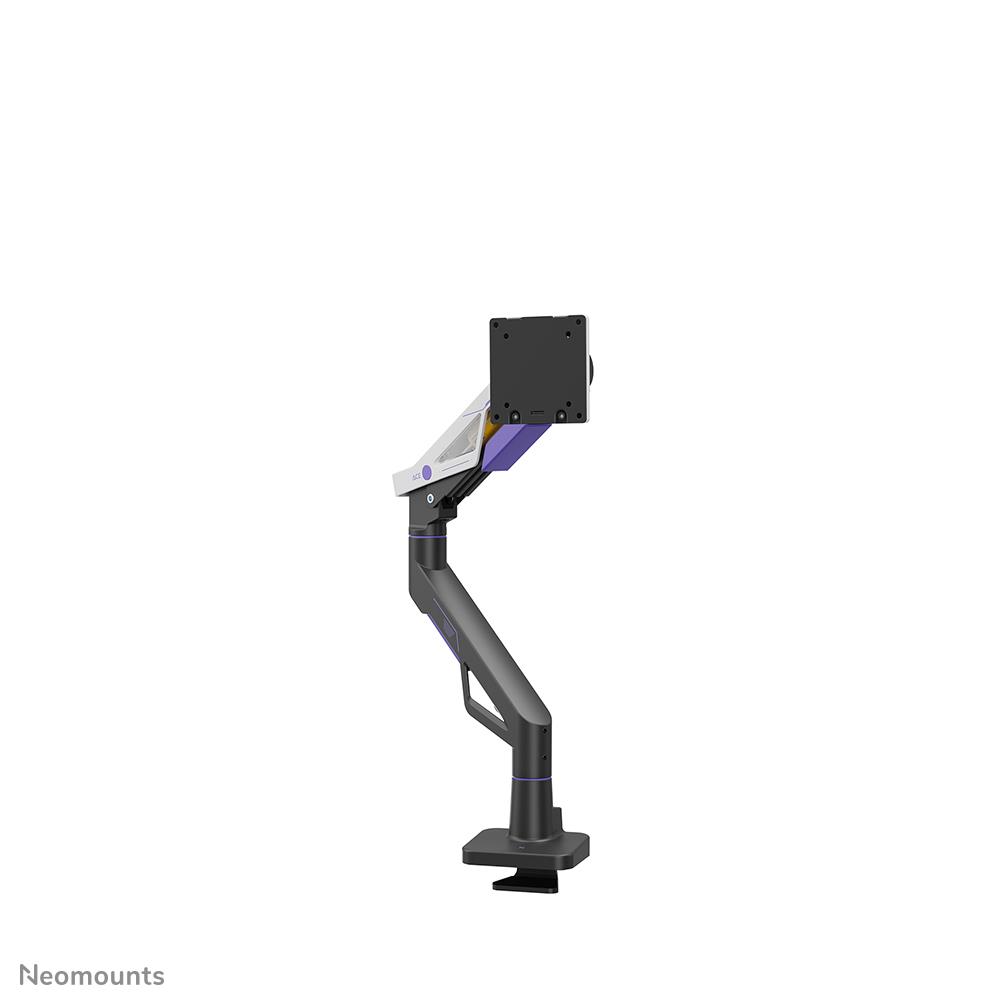

Thanks to its broad VESA compatibility from 75×75 to 200×200, the ACE offers seamless integration with a wide range of monitors. The inclusion of precision tilt functionality allows for finely tuned angle adjustments, reducing screen glare and enhancing viewing comfort no matter your setup. Combined with gas spring height adjustment and depth adjustment, positioning your screen in the ideal position becomes smooth and effortless, supporting better posture and sustained focus during marathon sessions.

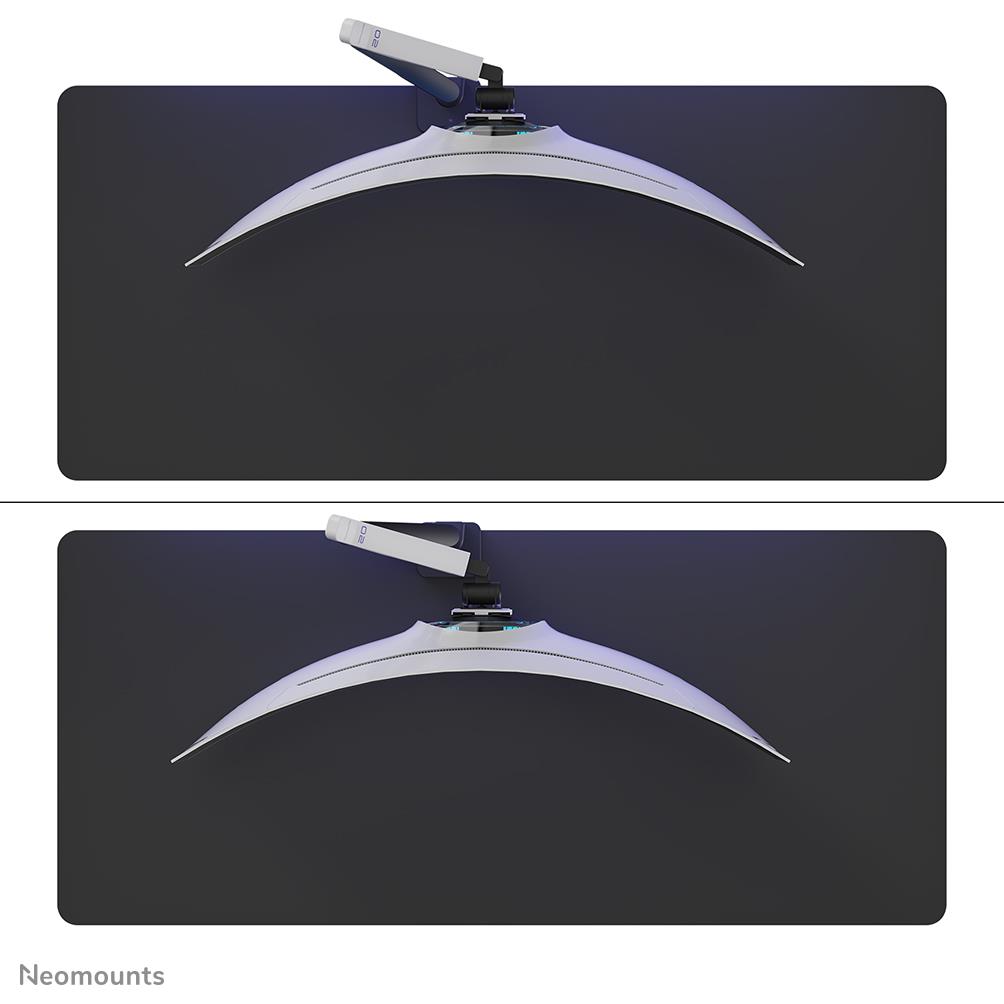

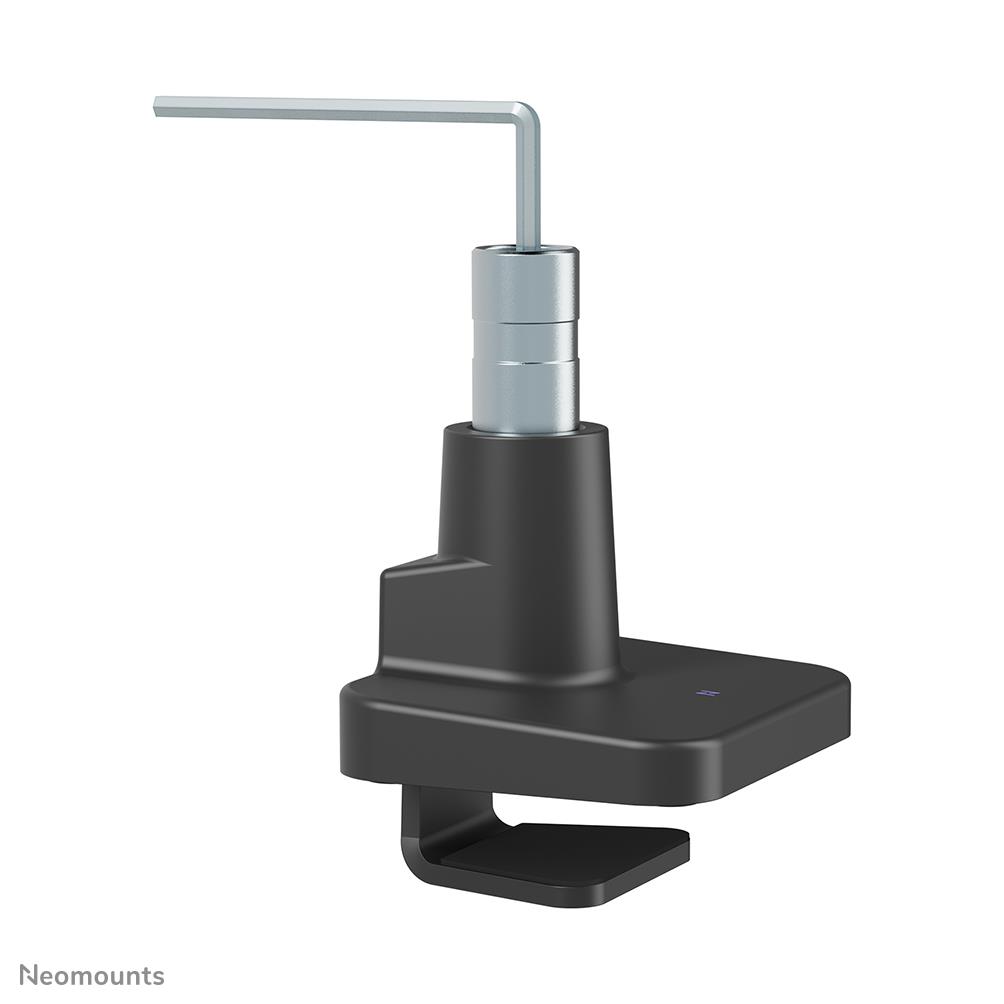

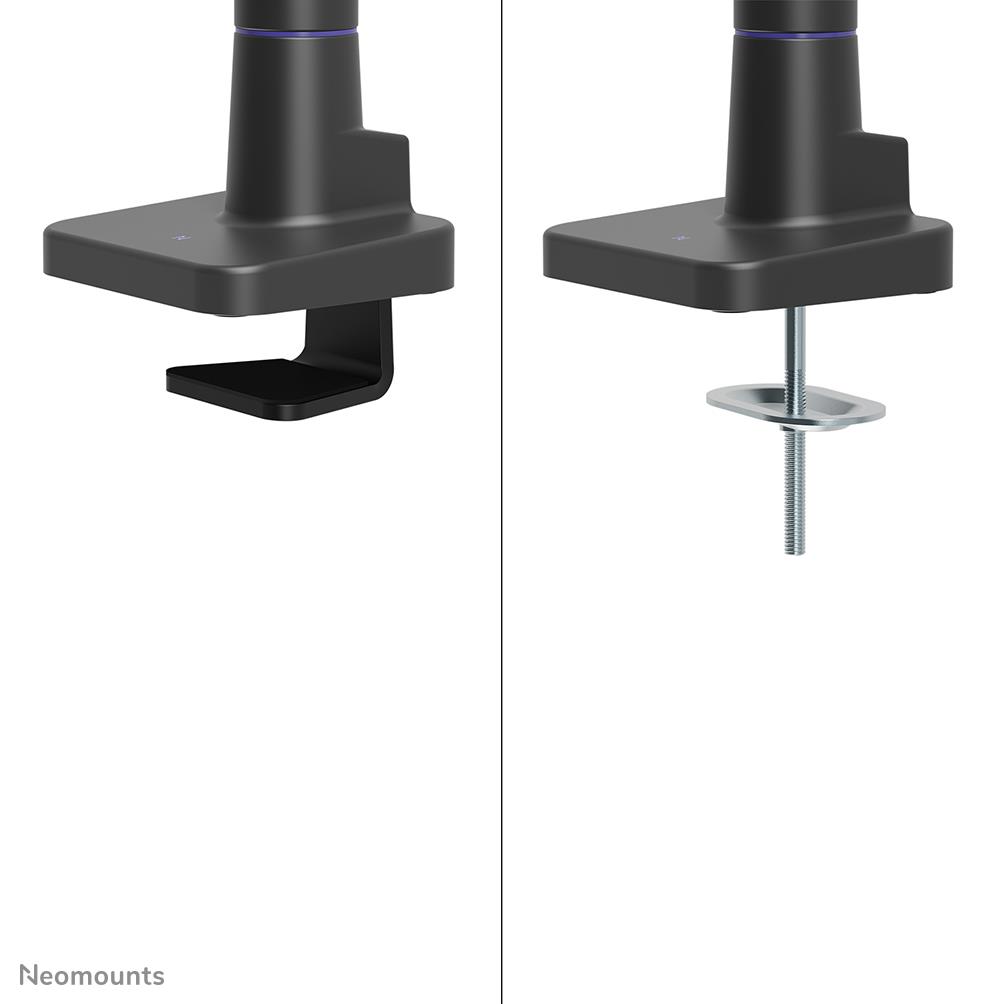

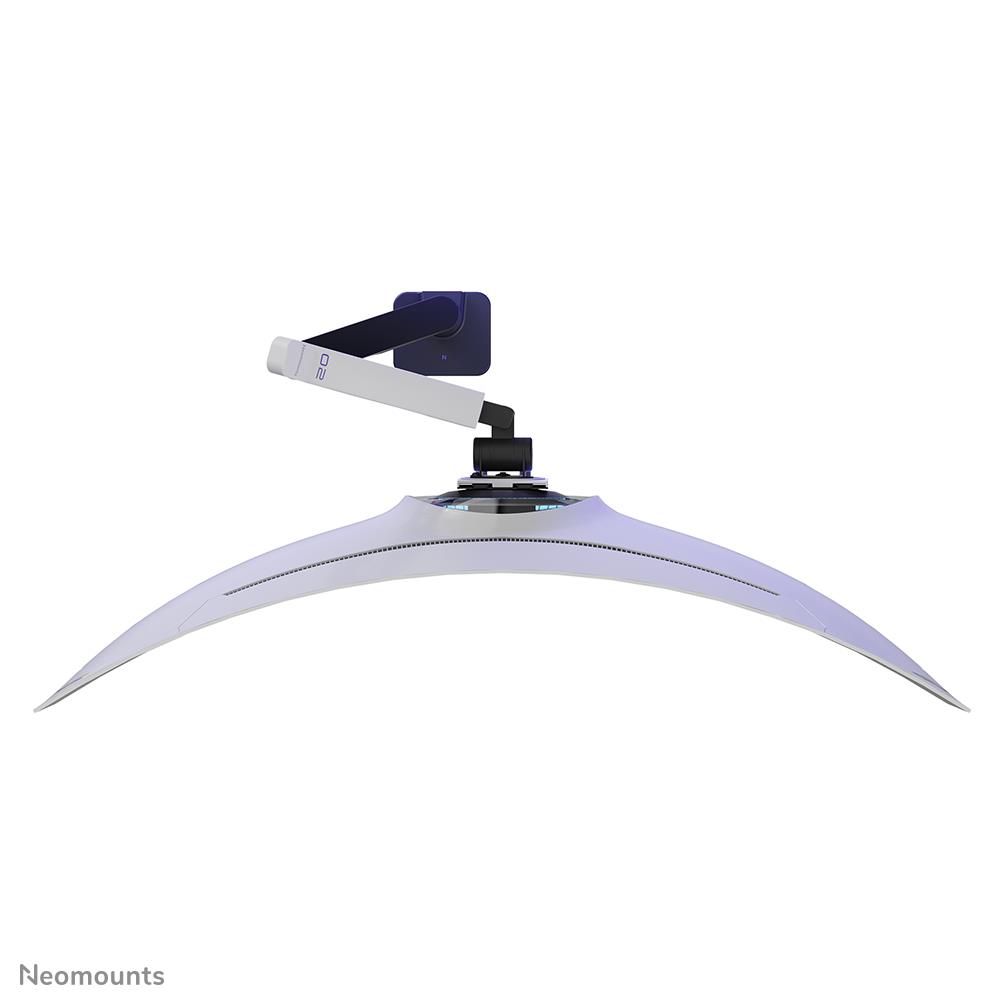

For added practicality, the DS70-256BL1 monitor arm includes a smart 180° stop mechanism to prevent contact with nearby walls, ideal for space-constrained installations. The Quick-release VESA system ensures easy monitor mounting, while the included topfix clamp and grommet offer fast and secure installation.
Whether you’re engaged in high-speed action, managing tactical operations, or streaming for hours, the full motion DS70-256BL1 ACE monitor arm empowers you with precision control, robust support, and optimum comfort so you can stay locked in and ahead of the competition.

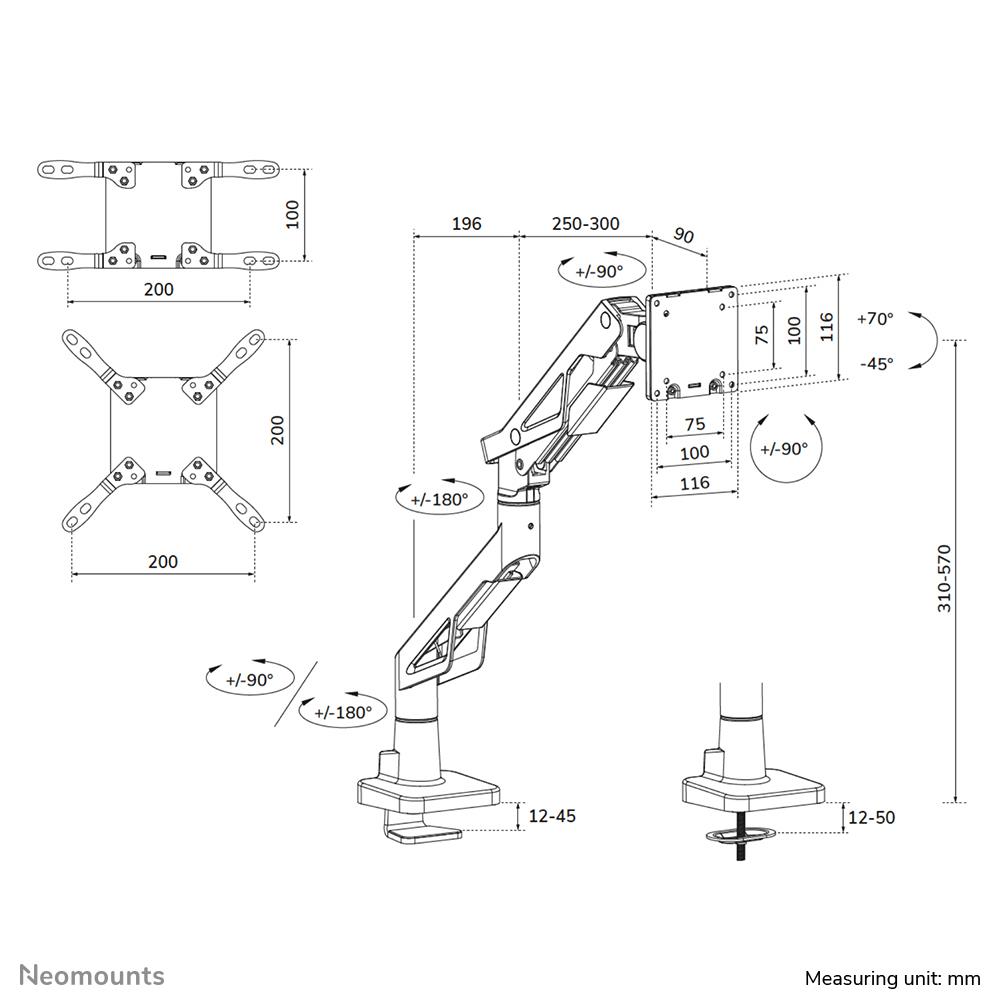

Specifikacijos
| Vendor Homepage | https://www.neomounts.com/default.asp?pageid=44&artdetail=DS70-256BL1 |
|---|---|
| Category Code | MAS |
| Desk thickness (max) | 45 mm |
| Desk thickness (min) | 12 mm |
| Distance to the wall (max) | 619 mm |
| Distance to the wall (min) | 123 mm |
| Maximum screen size | 57 " |
| Maximum VESA mount | 200 x 200 mm |
| Maximum weight capacity | 30 kg |
| Maximum weight capacity (per curved/ultra-wide display) | 24 kg |
| Maximum weight capacity (per display) | 30 kg |
| Minimum screen size | 24 " |
| Minimum VESA mount | 75 x 75 mm |
| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Number of displays supported | 1 |
| Panel mounting interface | 100 x 100/100 x 200/200 x 100/200 x 200/75 x 75 mm |
| Adjustable depth | Yes |
| Angle of rotation | 180 ° |
| Cable management | Yes |
| Depth adjustment range | 90 – 586 mm |
| Height adjustment | Yes |
| Height adjustment range | 310 – 570 mm |
| Height adjustment type | Gas spring |
| Rotating | Yes |
| Swivel angle range | -90 – 90 ° |
| Swivelling | Yes |
| Tilt angle range | -45 – 70 ° |
| Width adjustment | 992 mm |
| Housing material | Aluminium |
| Product colour | Black |
| Depth | 123 mm |
| Height | 675 mm |
| Weight | 4700 g |
| Width | 130 mm |
| Package depth | 143 mm |
| Package height | 423 mm |
| Package weight | 5200 g |
| Package width | 155 mm |
| Minimum weight | 2 kg |
| Warranty period | 5 year(s) |
| Width adjustment range | 0 – 992 mm |
| Country of origin | China |
| Harmonized System (HS) code | 7616991099 |
| Master (outer) case gross weight | 17600 g |
| Master (outer) case height | 510 mm |
| Master (outer) case length | 290 mm |
| Master (outer) case net weight | 14200 g |
| Master (outer) case width | 356 mm |
| Products per master (outer) case | 4 pc(s) |
| Products per pallet (EU) | 100 pc(s) |
| Model | DS70-256BL1 |
| Unit Calculated Volume | 0.01258 cubm |
| Unit Calculated Weight | 5.5 kg |
