MONITOR ACC DESK MOUNT 17-42″/DS70-450WH1 NEOMOUNTS
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $40
-
DHL Courier delivery
DHL courier will deliver to the specified address
1-2 Days
From $40
156.49 €
Liko 2
Liko 2
Description

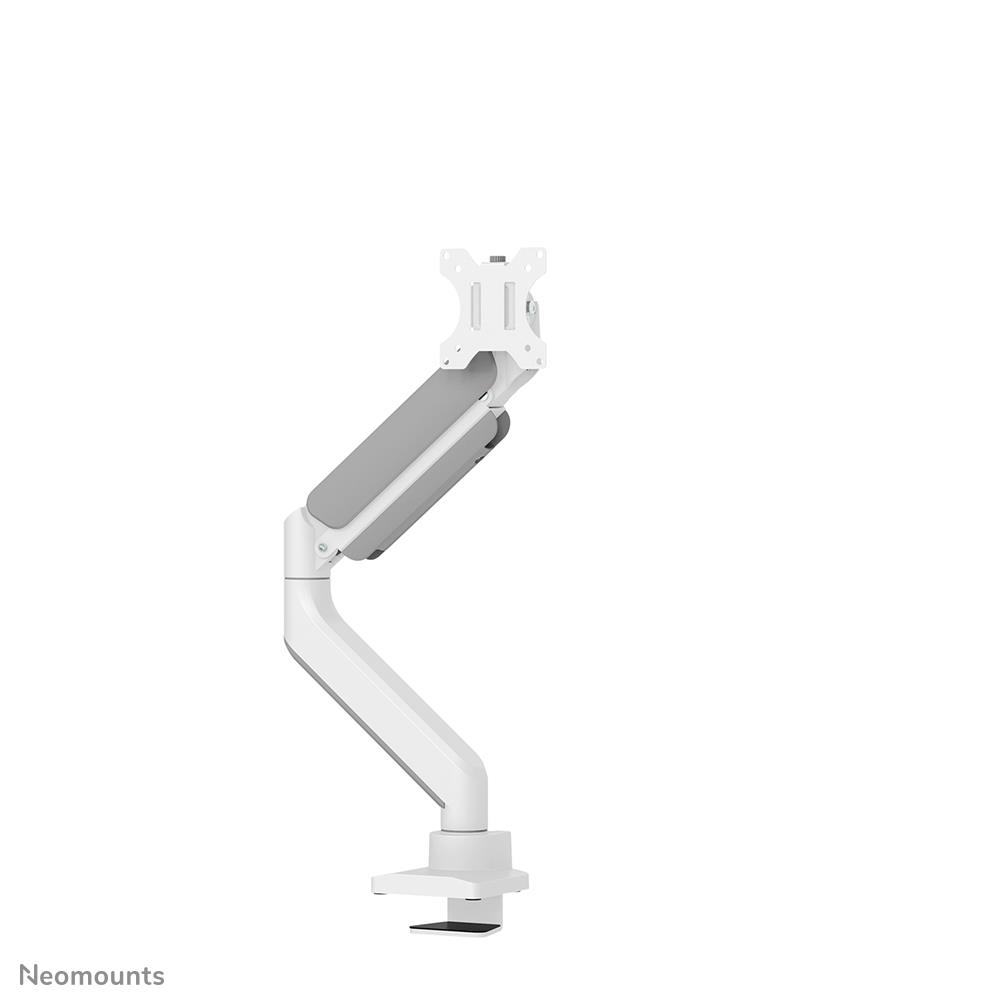

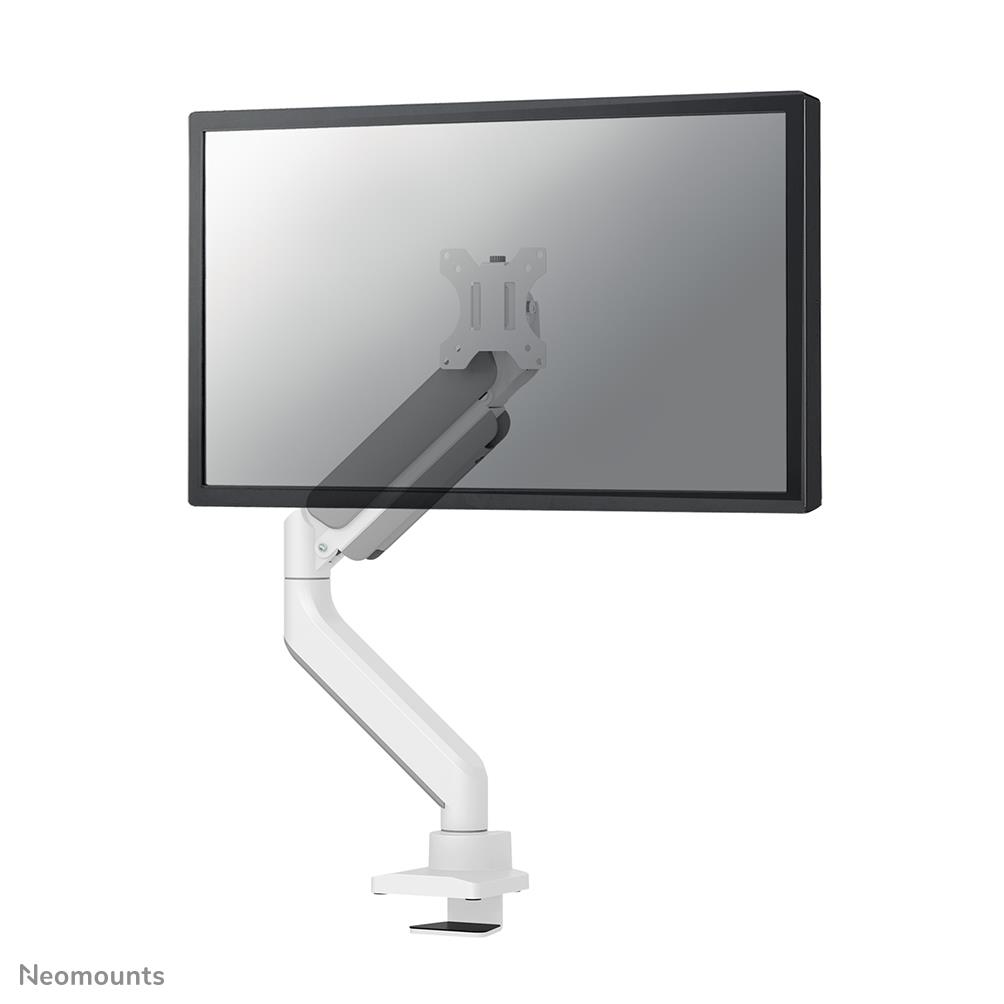

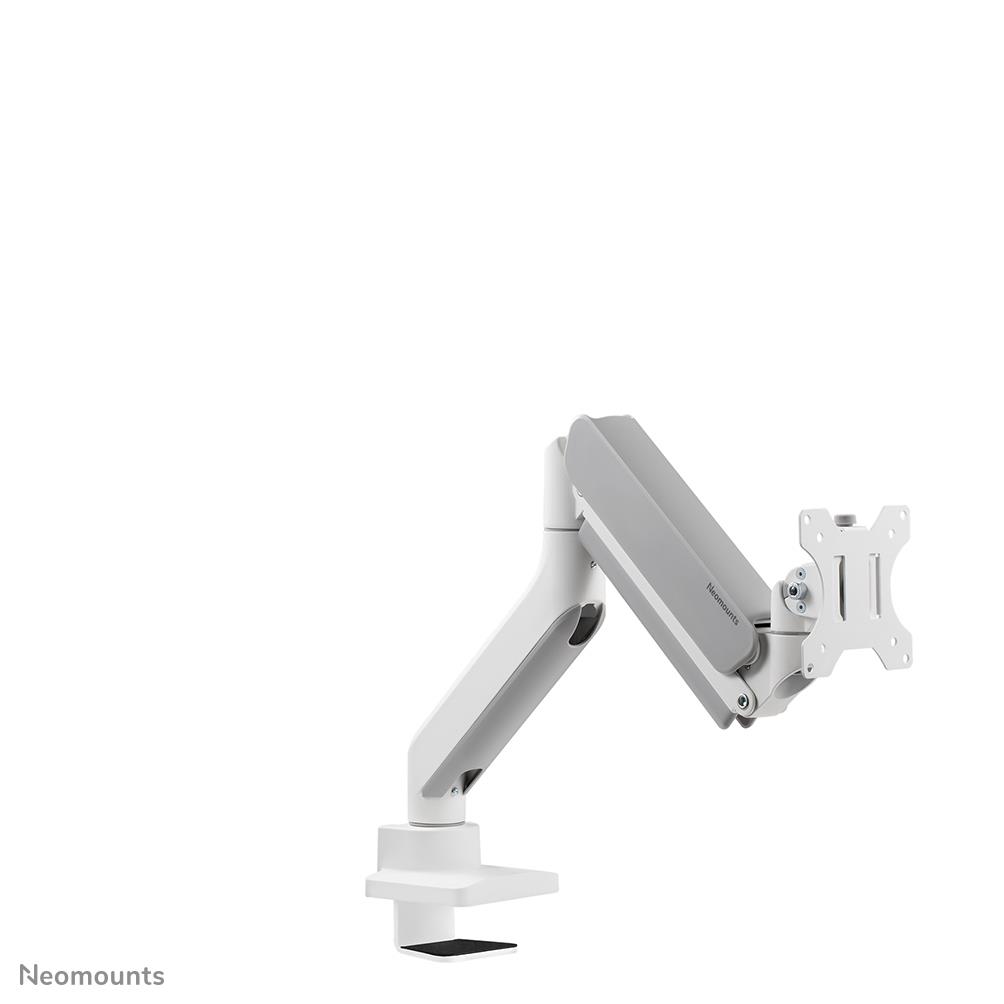

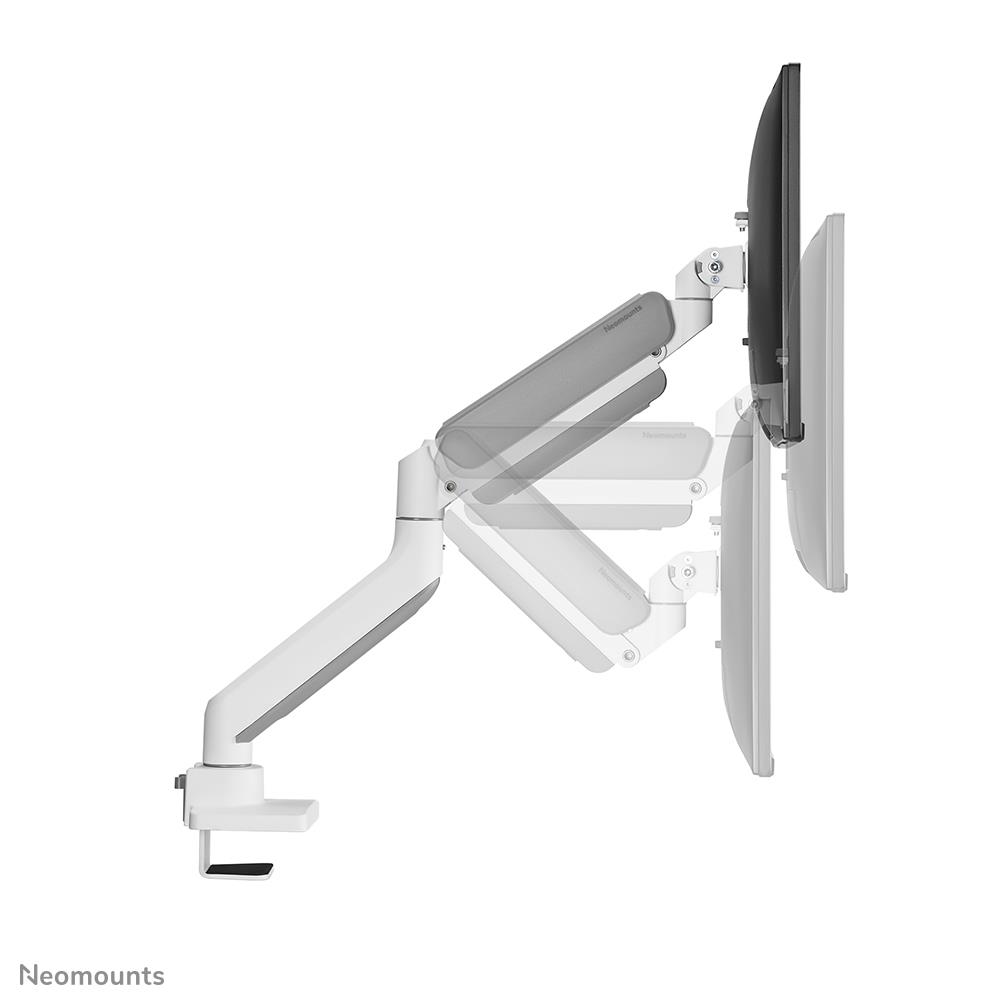

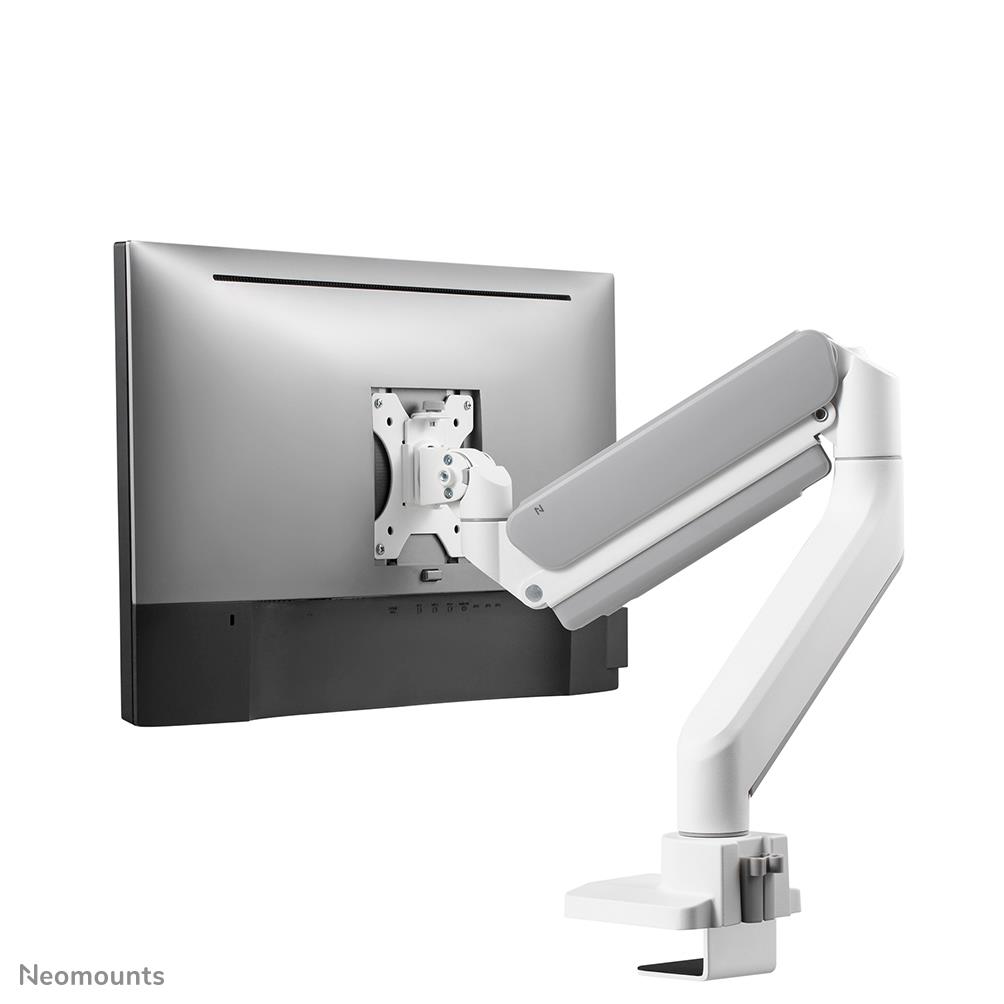

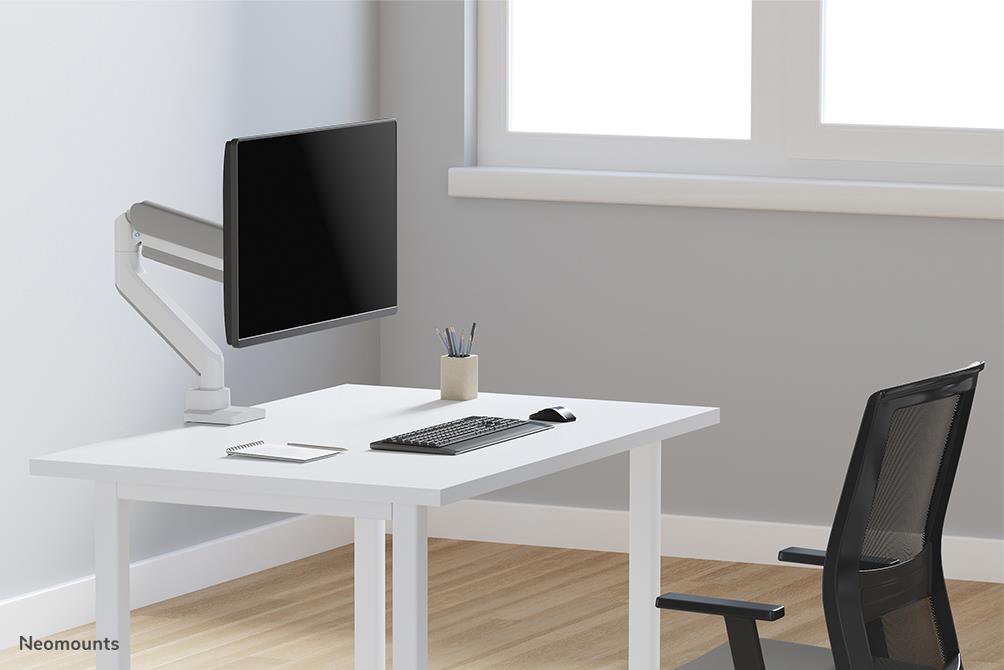

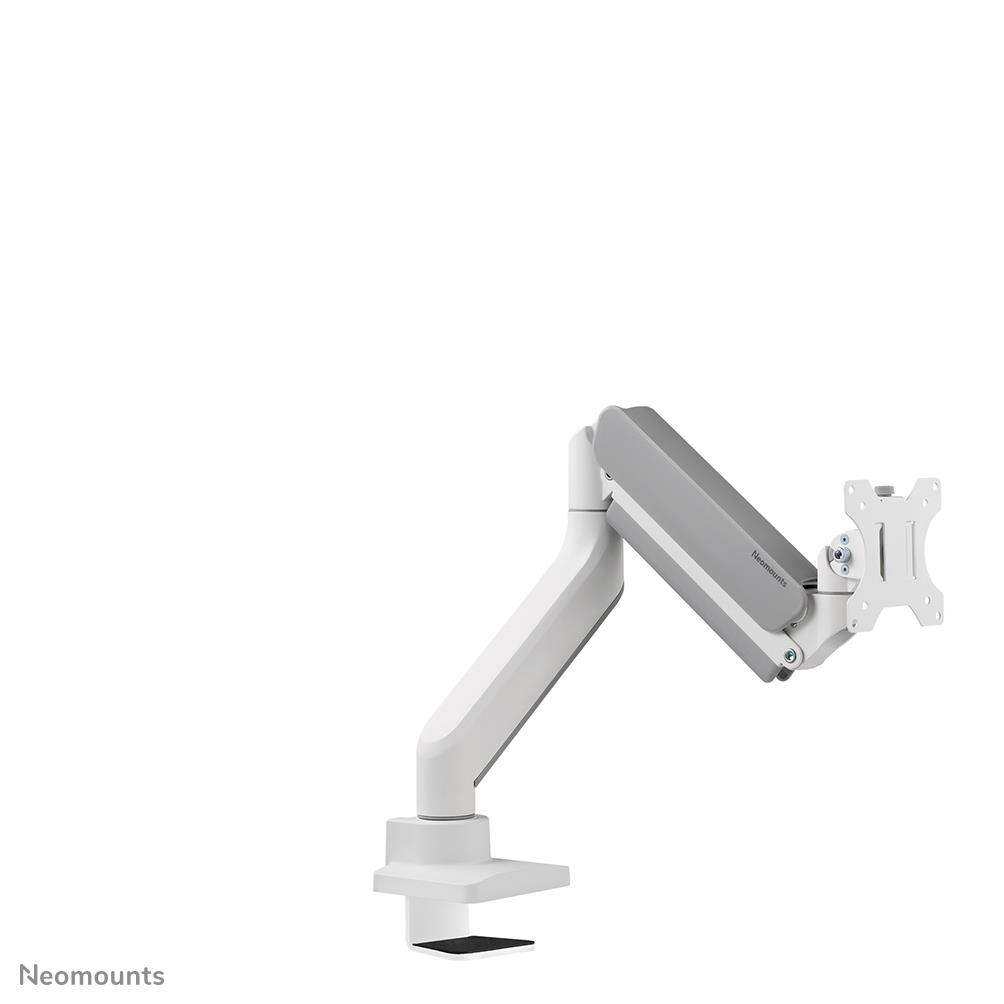

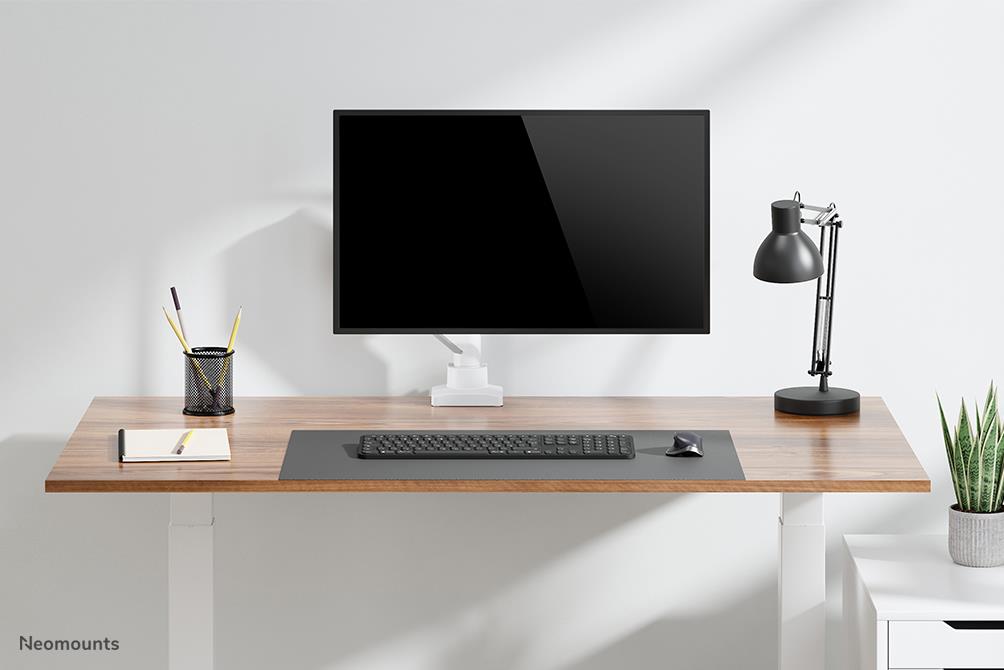

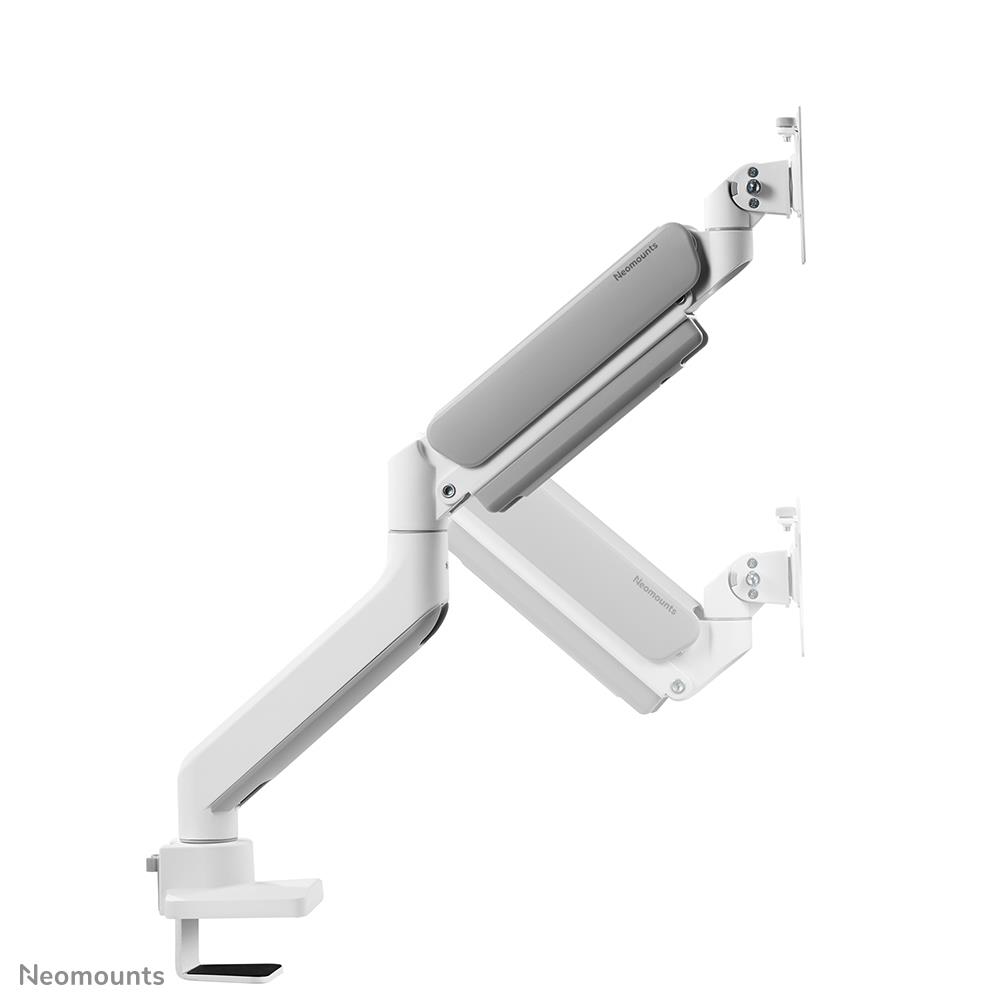

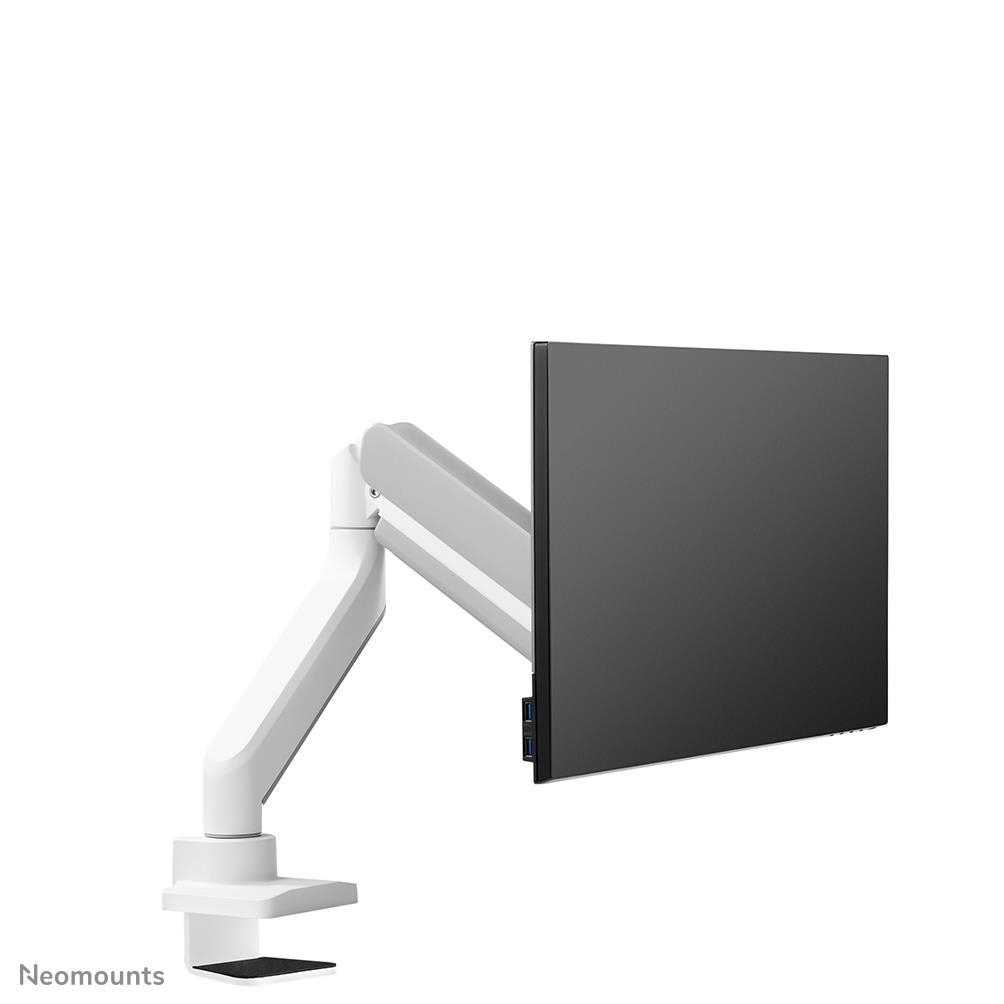

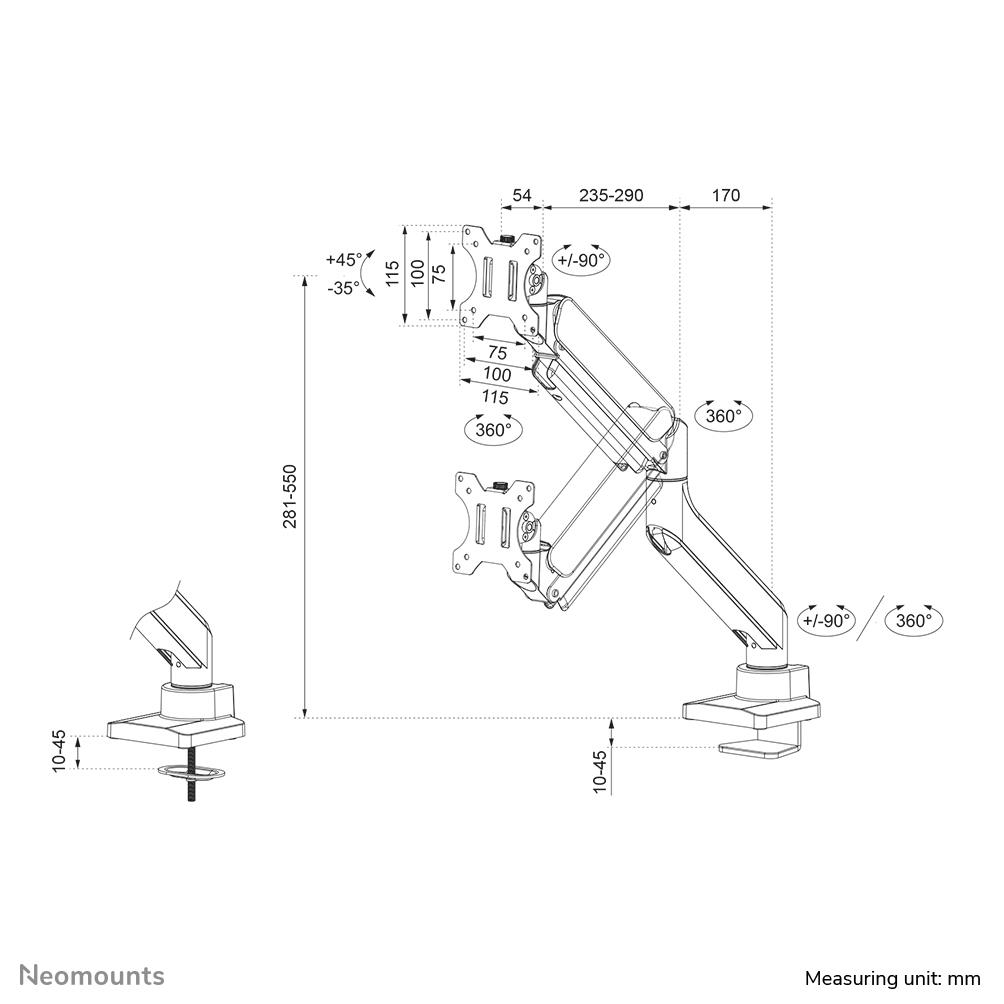

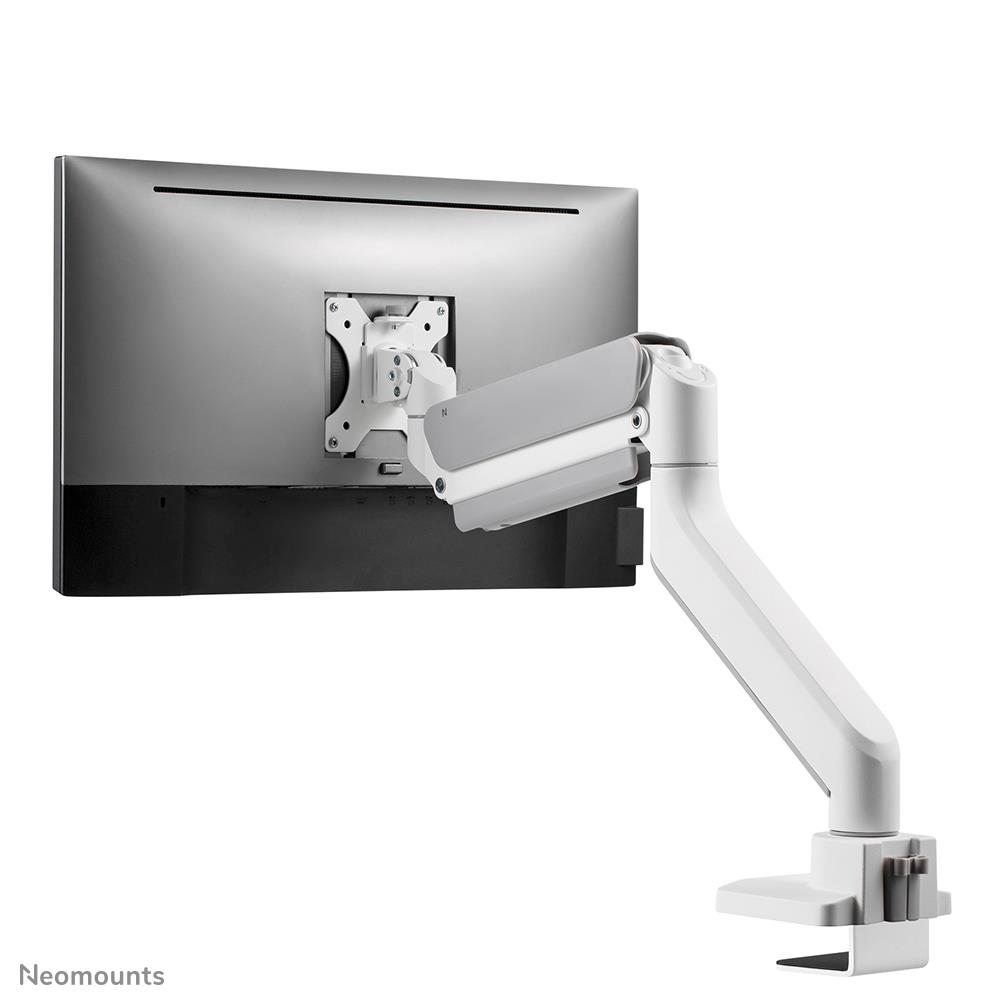

The Neomounts DS70-450WH1 NEXT Core is a full motion desk mount for one flat screen up to 42″ with a maximum weight capacity of 15 kg. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (26,1-55 cm) and depth adjustment (0-51,4 cm), to create the perfect working position.

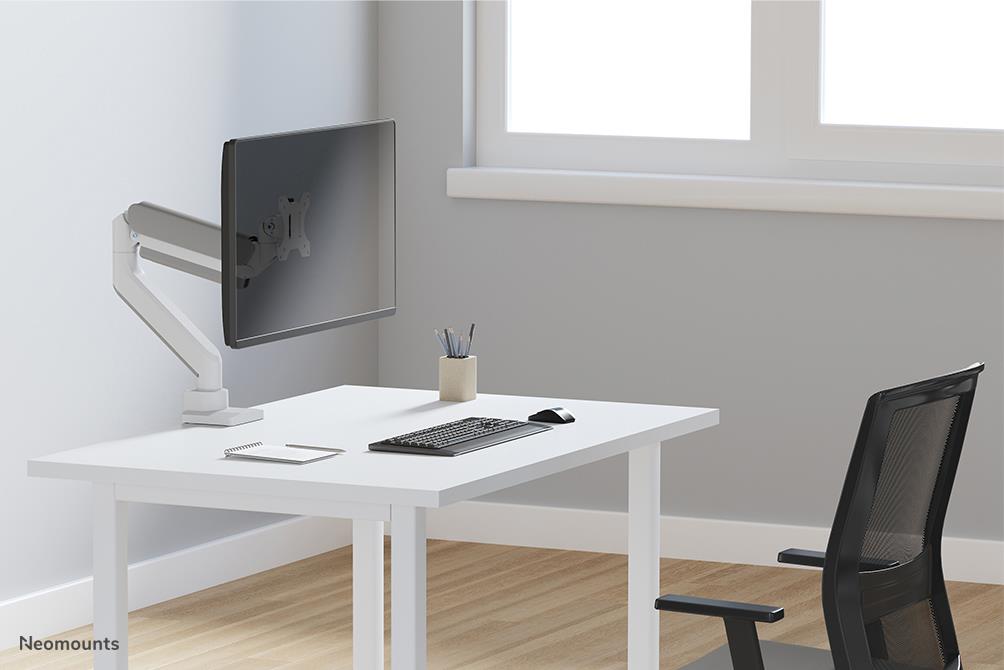

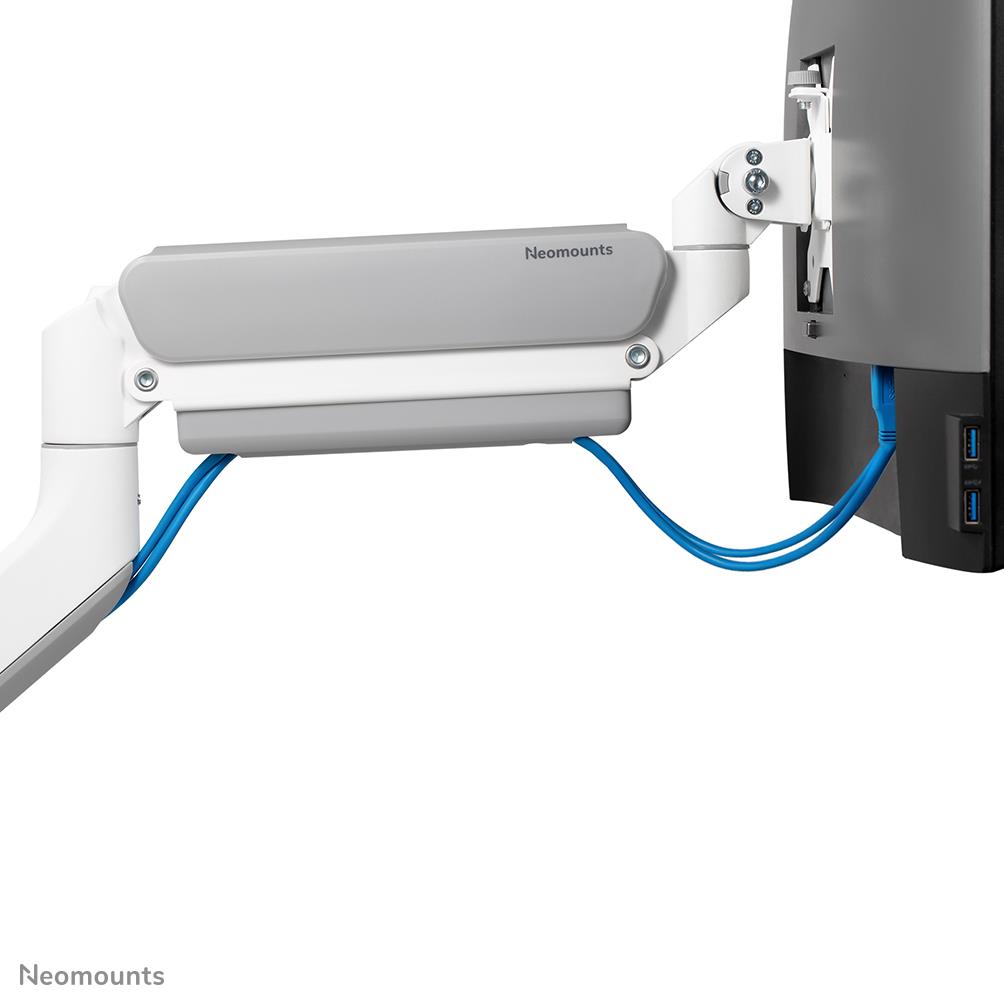

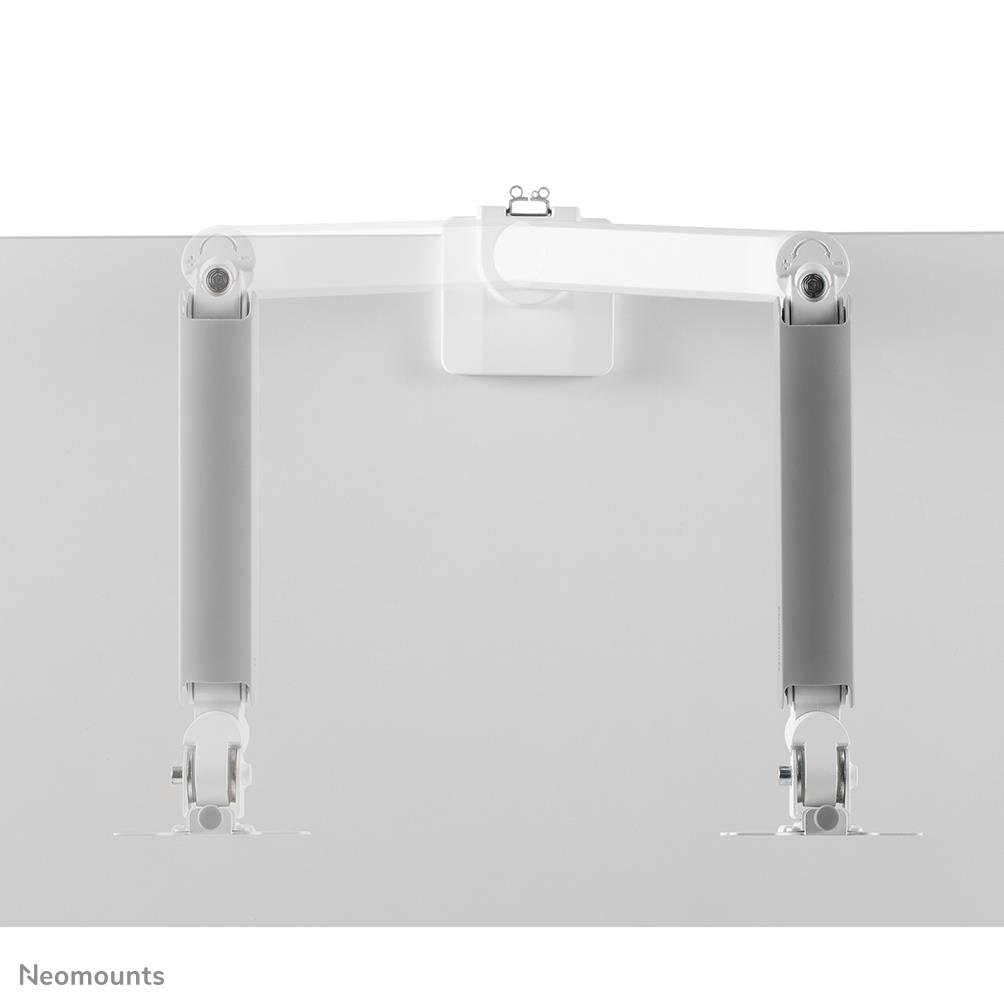

The DS70-450WH1 NEXT Core features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it’s placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.

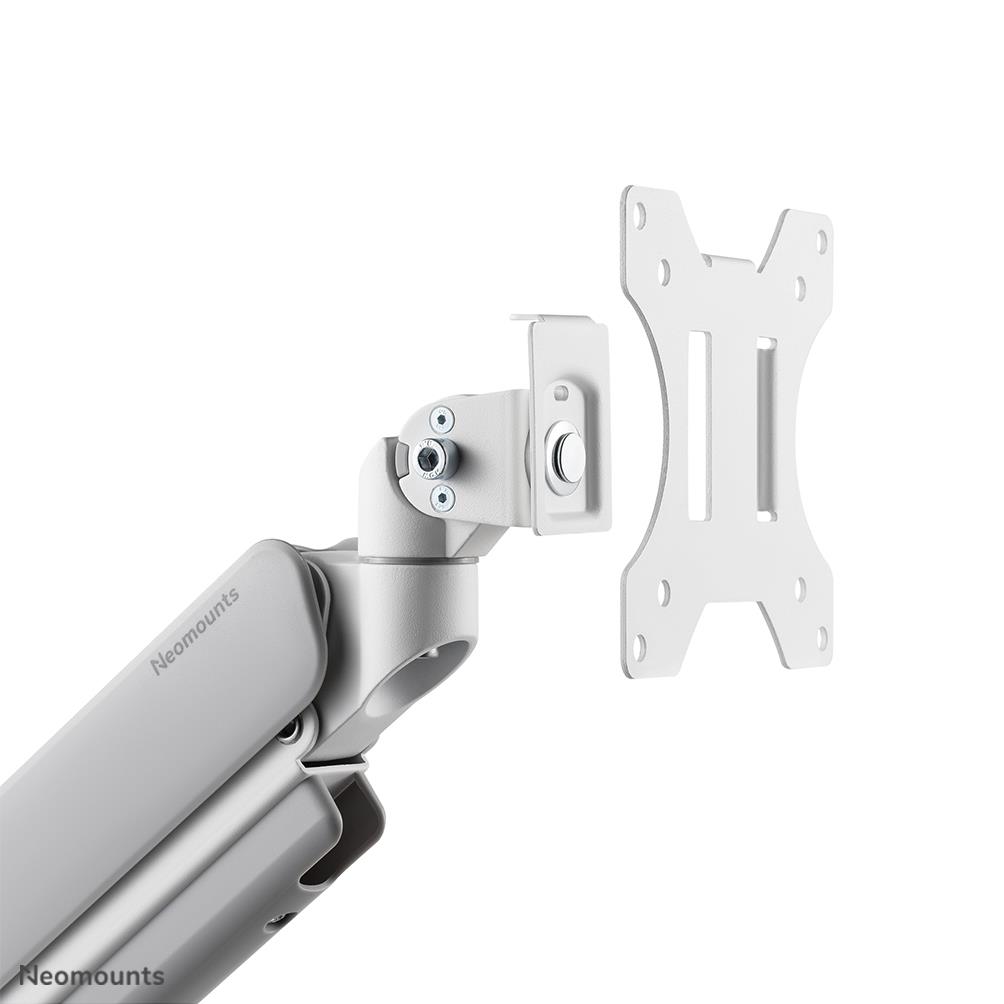

The DS70-450WH1 is suitable for screens that meet VESA hole pattern 75×75 or 100×100 mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.

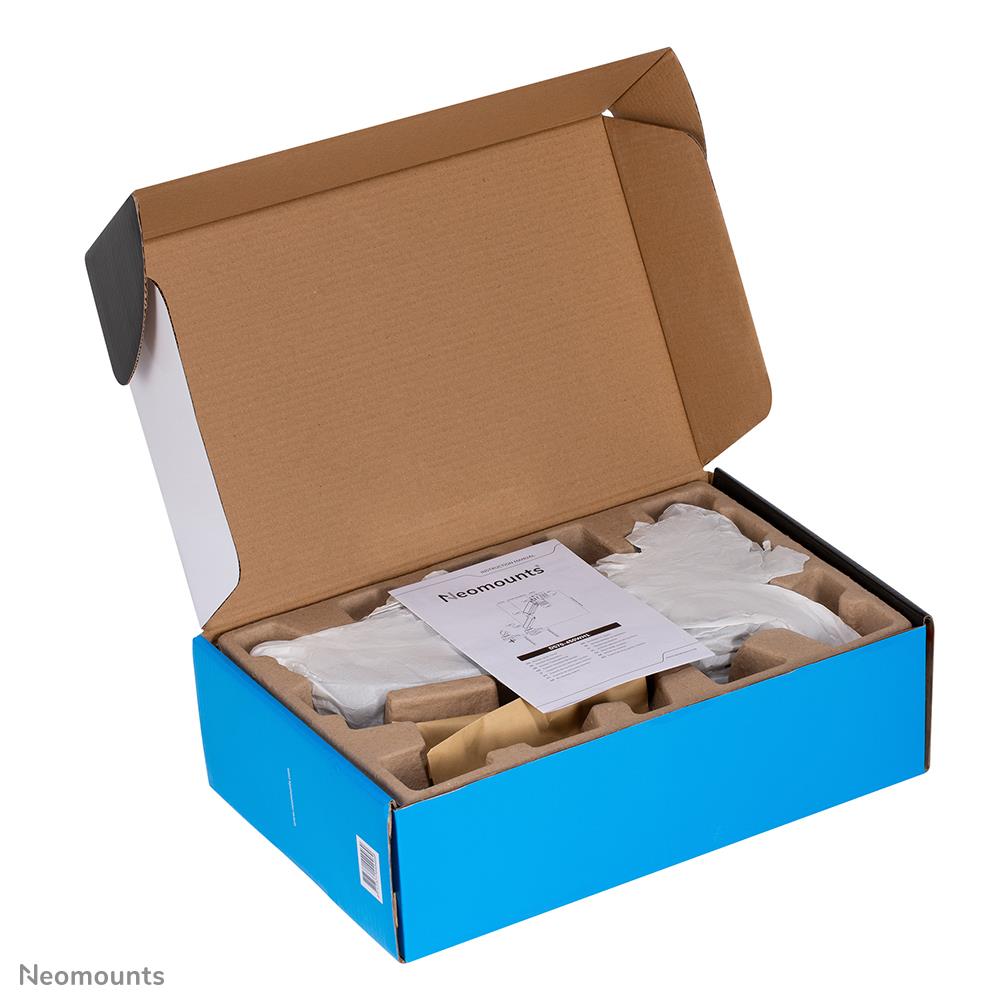

The inner packaging of the NEXT Core is plastic free and made from cardboard and paper.
For wall installation, the AWL75-450WH wall adapter is optionally available.
Specifikacijos
| Vendor Homepage | https://www.neomounts.com/default.asp?pageid=44&artdetail=DS70-450WH1 |
|---|---|
| Category Code | MAS |
| Unit Box Height | 0.285 |
| Unit Box Length | 0.45 |
| Unit Box Width | 0.125 |
| Desk thickness (max) | 45 mm |
| Desk thickness (min) | 10 mm |
| Distance to the wall (max) | 568 mm |
| Distance to the wall (min) | 108 mm |
| Maximum screen size | 42 " |
| Maximum VESA mount | 100 x 100 mm |
| Maximum weight capacity | 15 kg |
| Maximum weight capacity (per curved/ultra-wide display) | 11 kg |
| Maximum weight capacity (per display) | 15 kg |
| Minimum screen size | 17 " |
| Minimum VESA mount | 75 x 75 mm |
| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Number of displays supported | 1 |
| Panel mounting interface | 100 x 100/75 x 75 mm |
| Adjustable depth | Yes |
| Angle of rotation | 360 ° |
| Cable management | Yes |
| Depth adjustment range | 54 – 511 mm |
| Height adjustment | Yes |
| Height adjustment range | 261 – 555 mm |
| Height adjustment type | Gas spring |
| Pivot angle | -180 – 180 ° |
| Rotating | Yes |
| Swivel angle | 180 ° |
| Swivel angle range | -90 – 90 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -45 – 45 ° |
| Width adjustment | 920 mm |
| Housing material | Steel |
| Product colour | White |
| Depth | 568 mm |
| Height | 653 mm |
| Weight | 3980 g |
| Width | 120 mm |
| Package depth | 127 mm |
| Package height | 445 mm |
| Package net weight | 5100 g |
| Package weight | 5100 g |
| Package width | 280 mm |
| Mounting kit | Yes |
| Minimum weight | 1 kg |
| Warranty period | 5 year(s) |
| Width adjustment range | 0 – 920 mm |
| Country of origin | China |
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 20500 g |
| Master (outer) case height | 580 mm |
| Master (outer) case length | 275 mm |
| Master (outer) case net weight | 18400 g |
| Master (outer) case width | 460 mm |
| Products per master (outer) case | 4 pc(s) |
| Products per pallet (EU) | 64 pc(s) |
| Model | DS70-450WH1 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.01603 cubm |
| Unit Calculated Weight | 4.9 kg |
