MONITOR ACC DESK MOUNT 17-27”/DUAL DS60-425BL2 NEOMOUNTS
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $40
-
DHL Courier delivery
DHL courier will deliver to the specified address
1-2 Days
From $40
113.27 €
Liko 2
Liko 2
Description

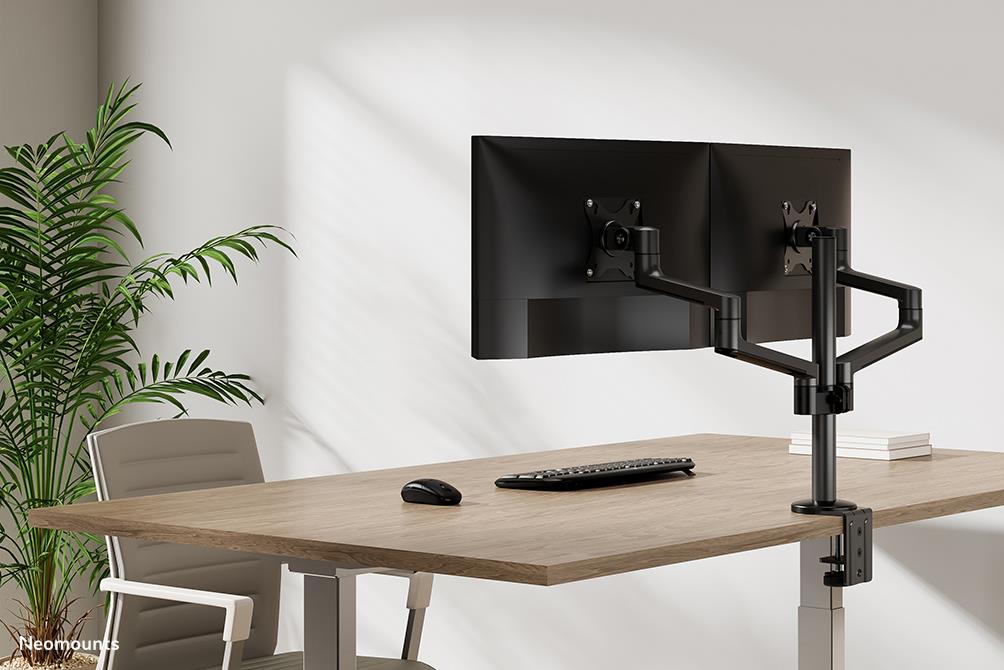

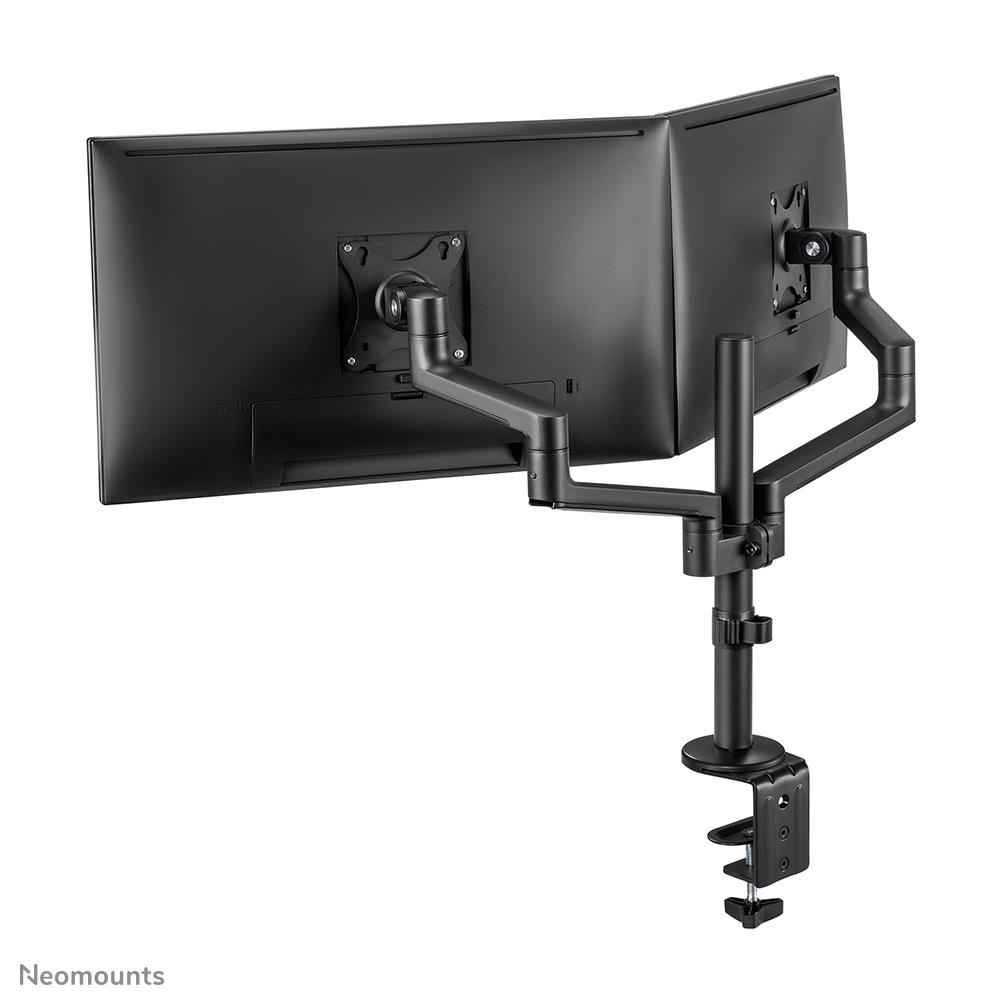

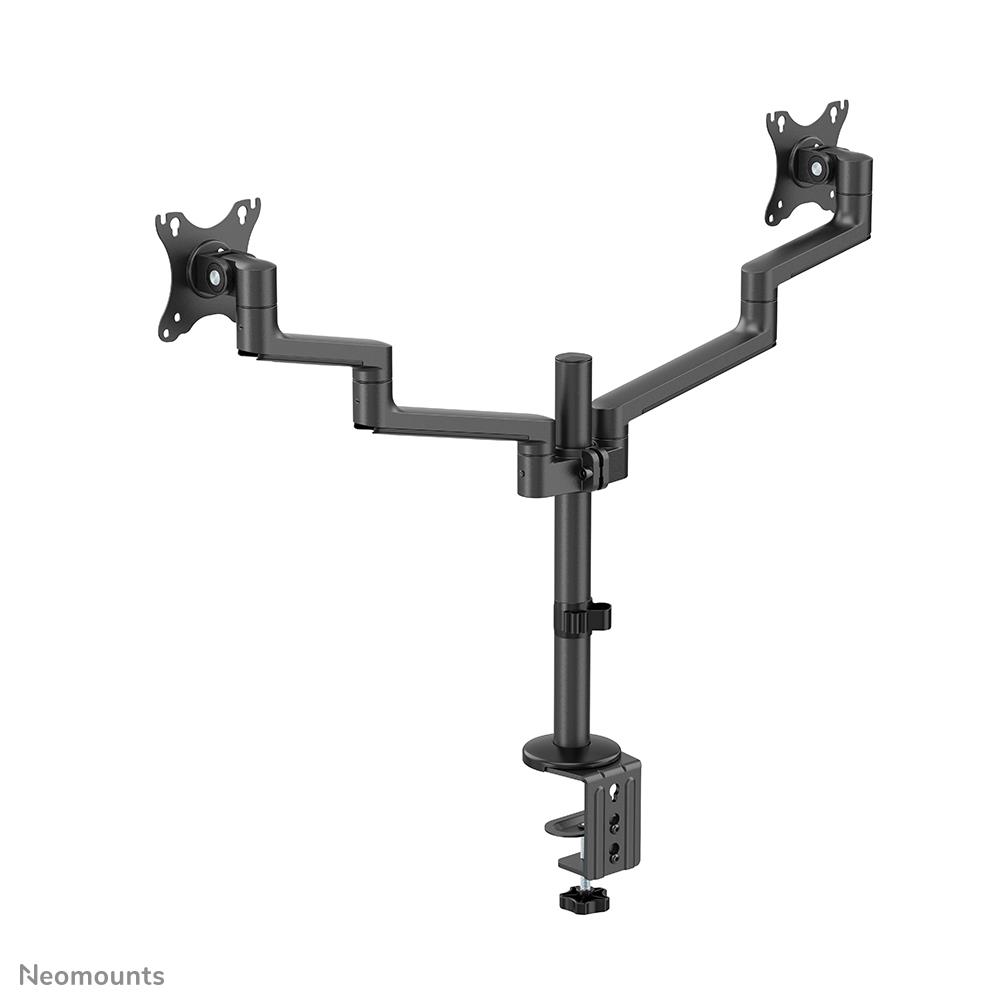

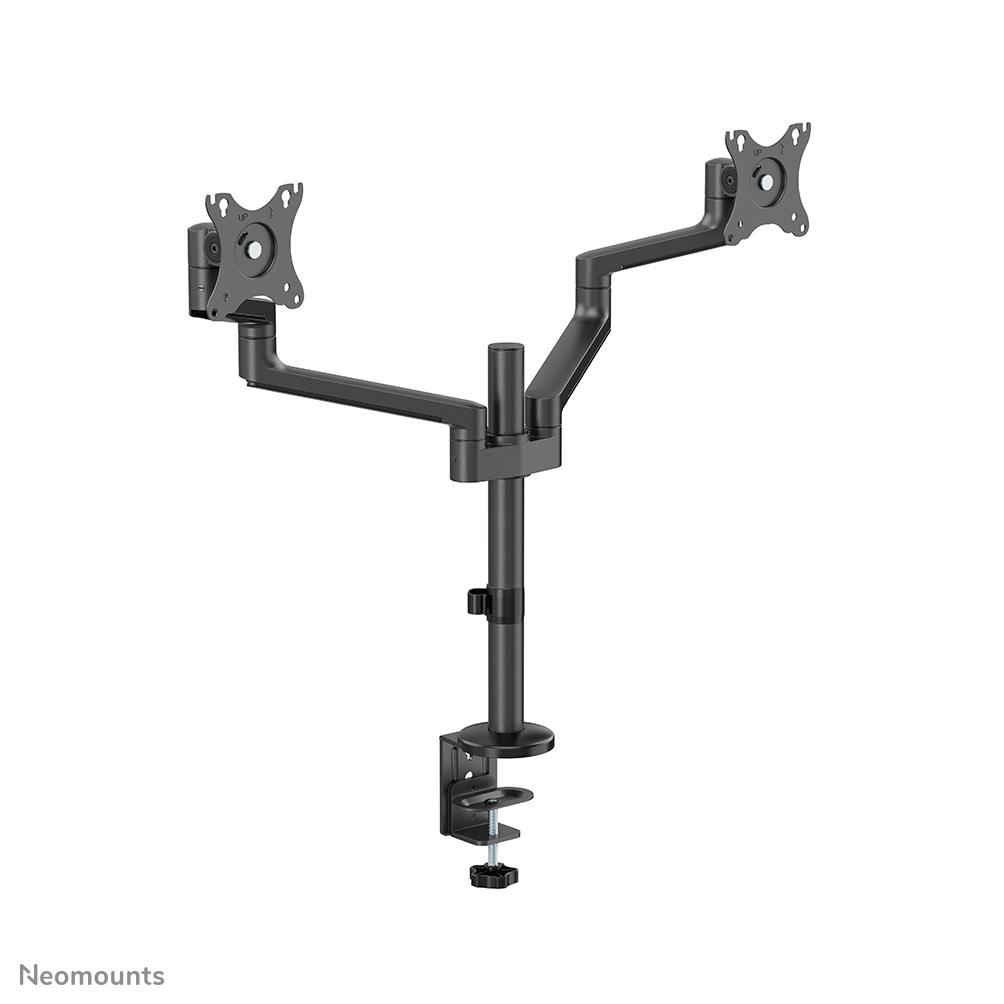

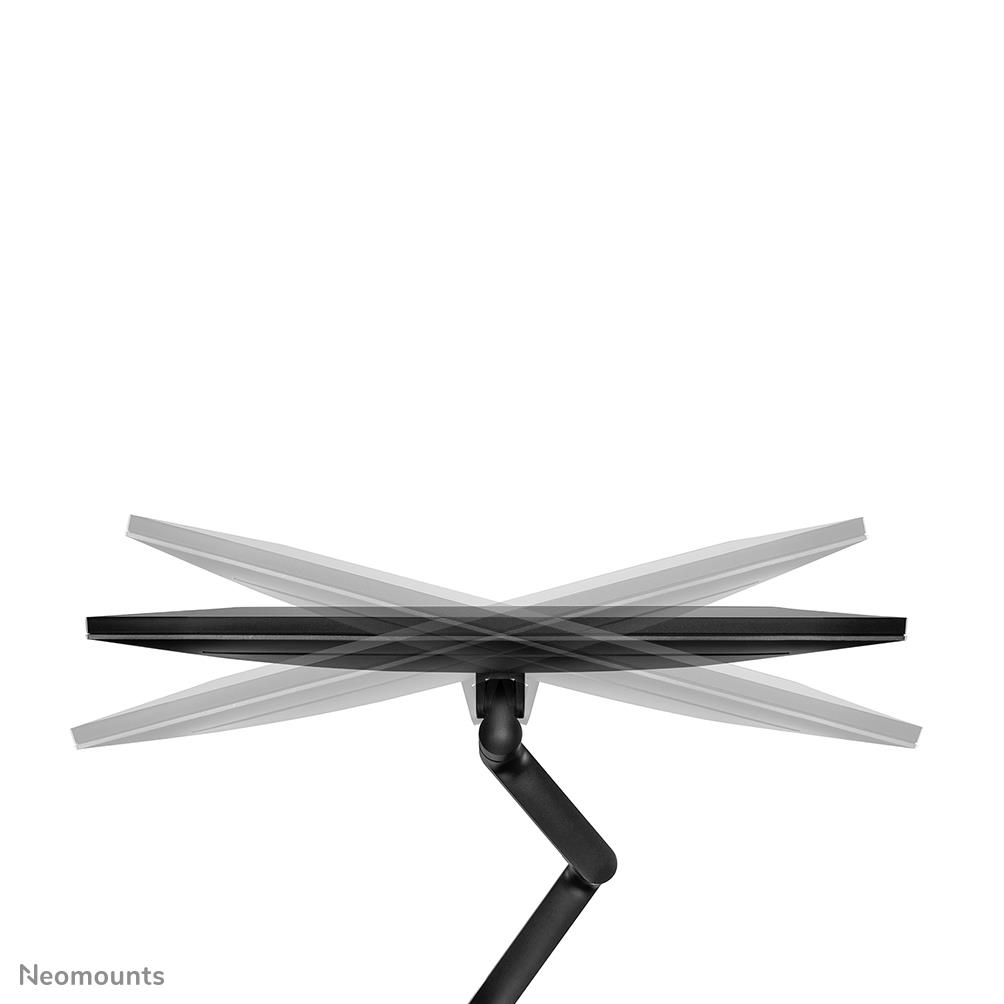

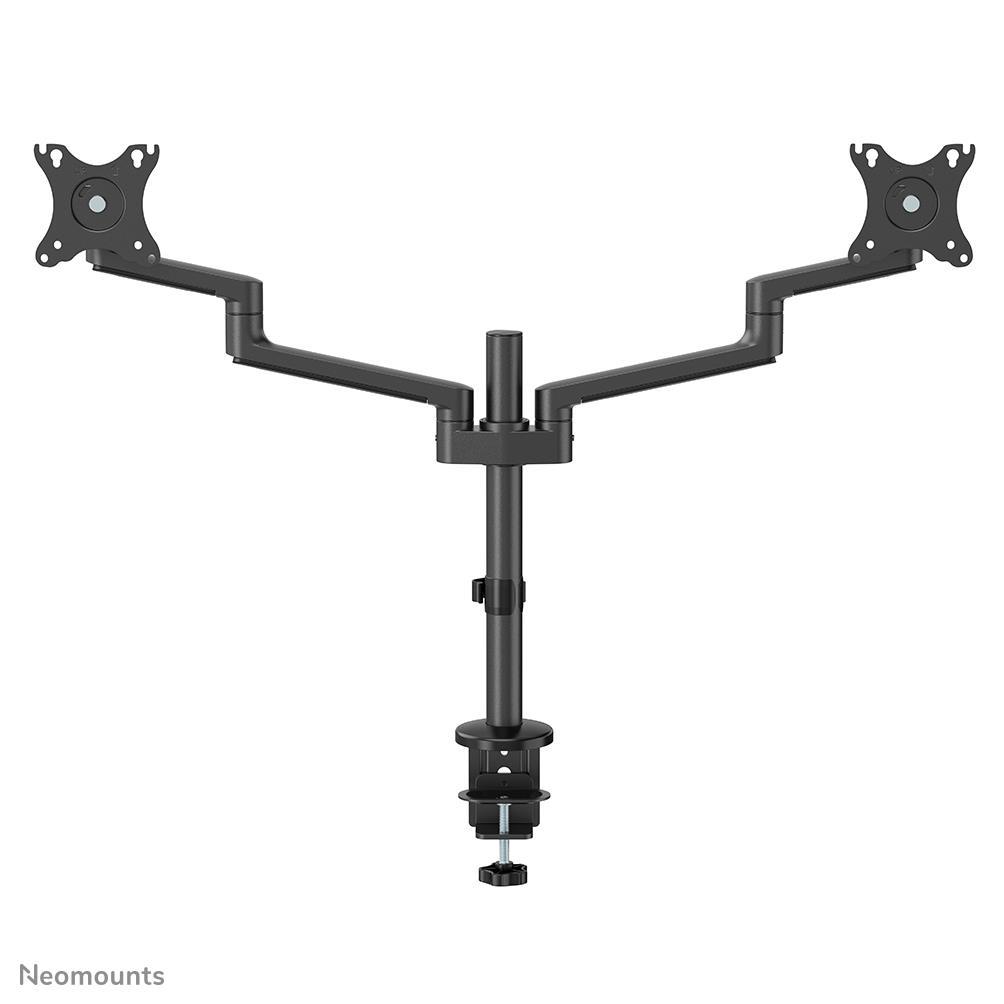

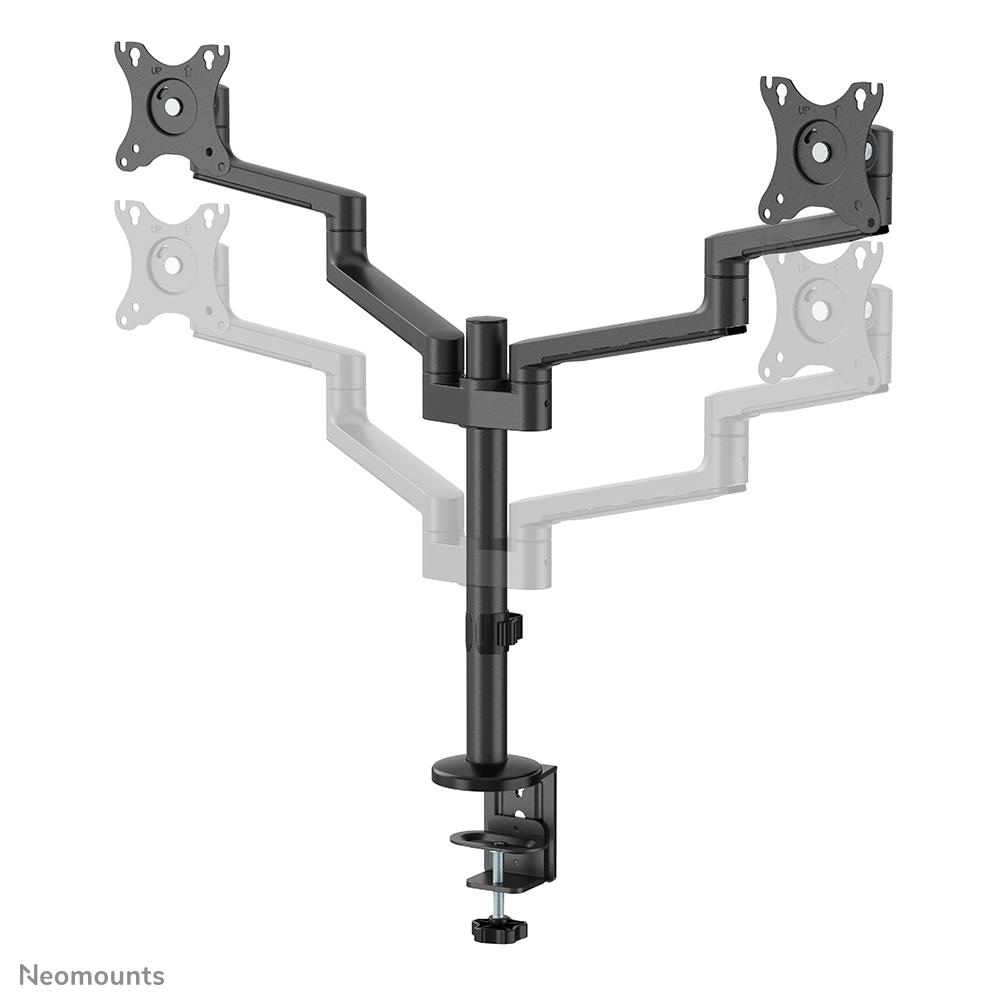

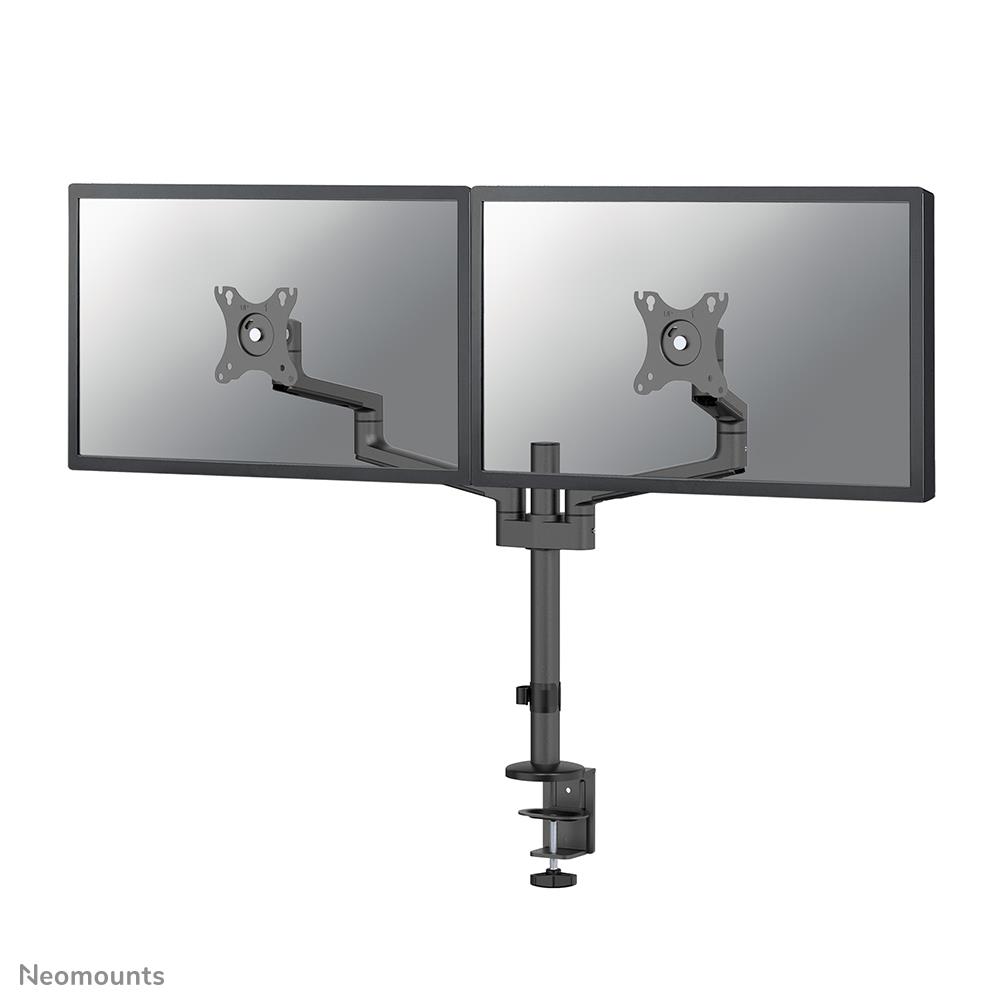

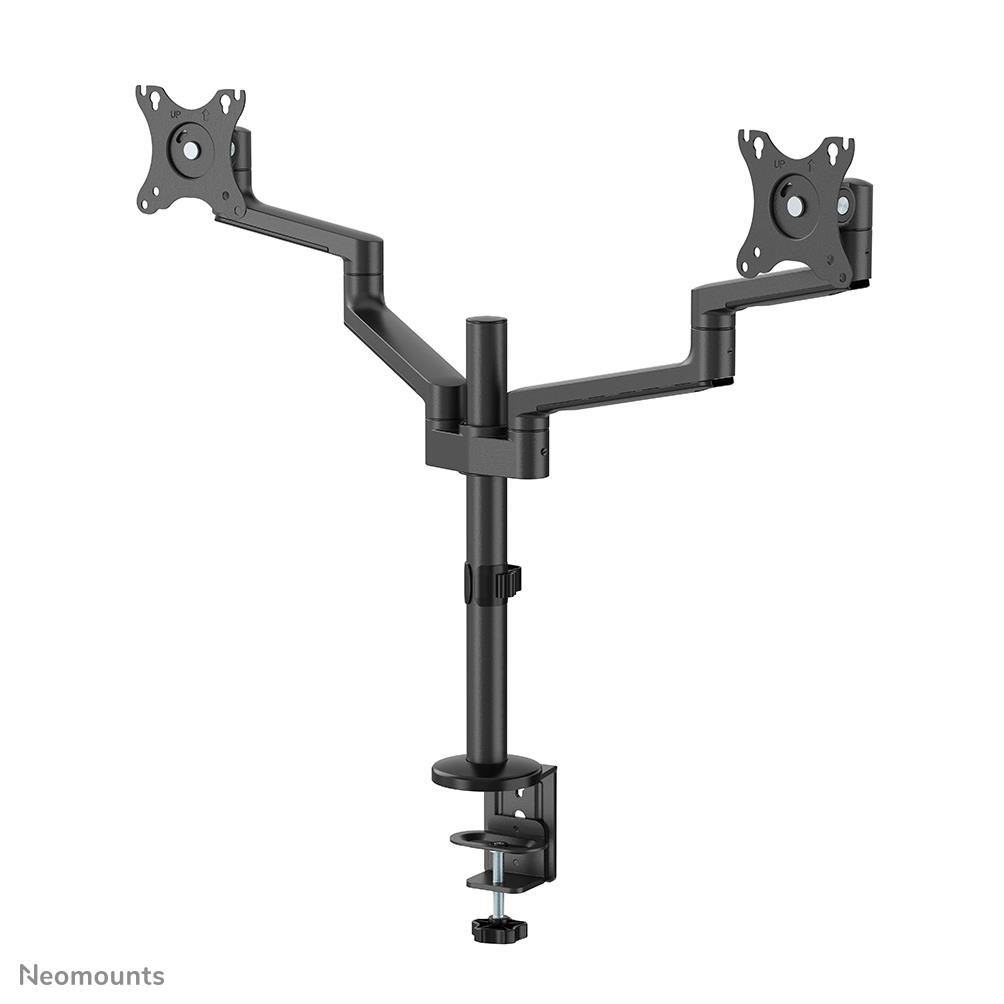

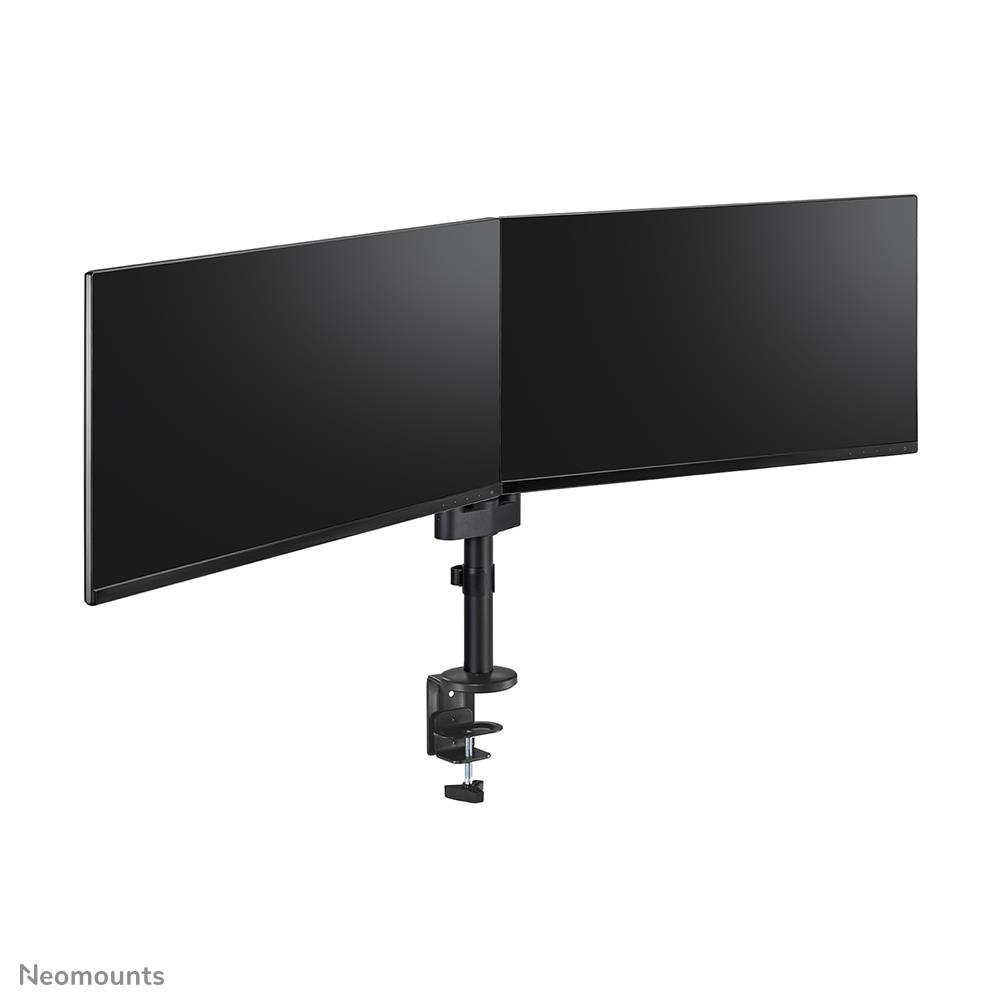

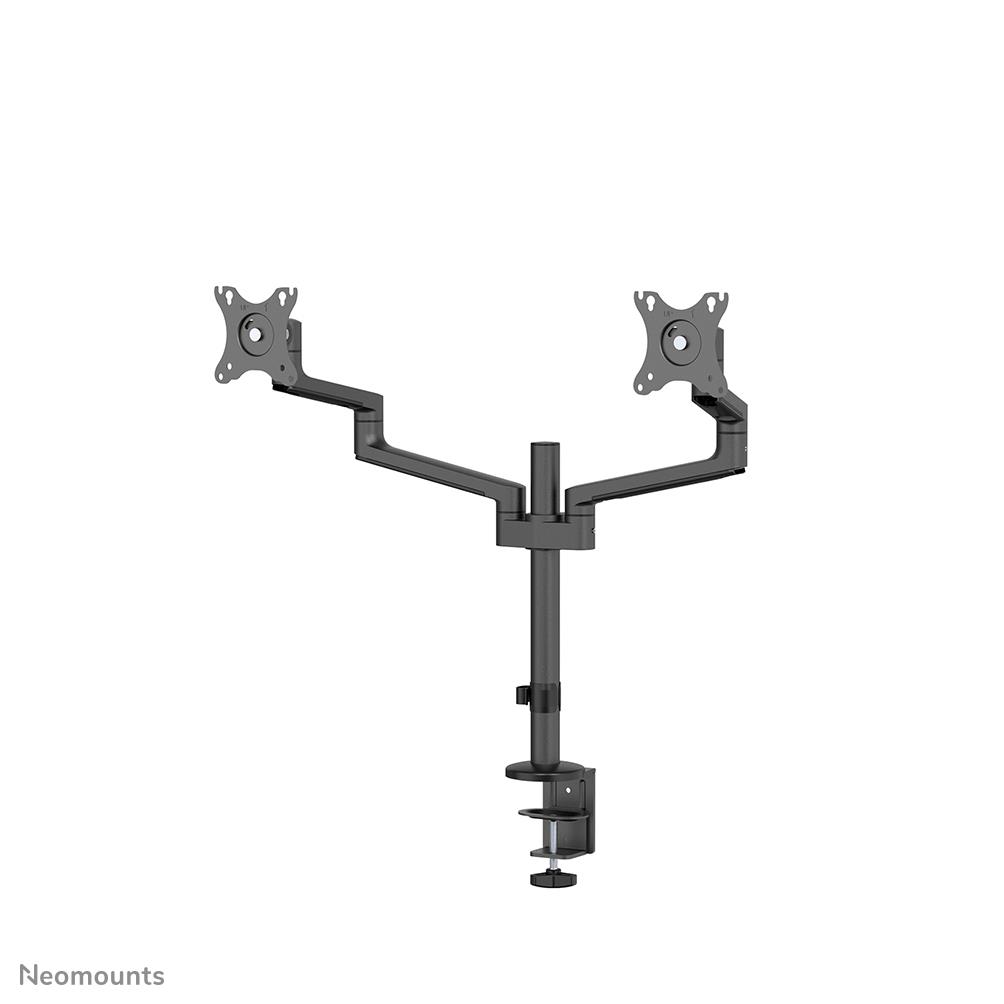

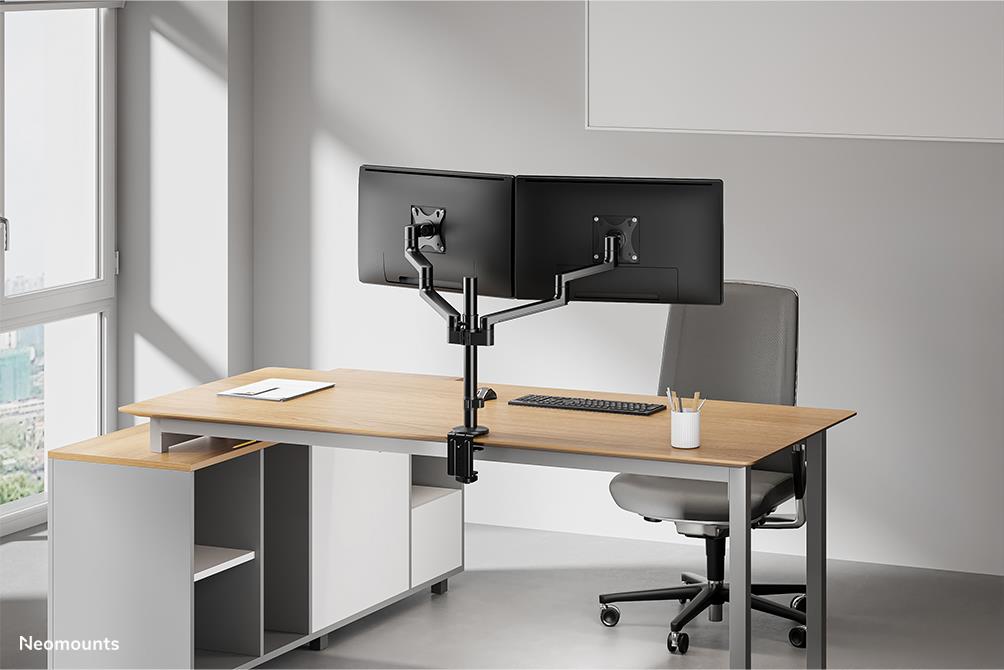

The Neomounts DS60-425BL2 NEXT Lite is a full motion desk mount for two screens up to 27″ with a maximum weight capacity of 8 kg per screen. The versatile tilt (120°), rotate (360°) and swivel (180°) technology allows you to adjust the mount to the optimal viewing angle for your screens. Additionally, the mount has manual height and depth adjustment to create the perfect working position.

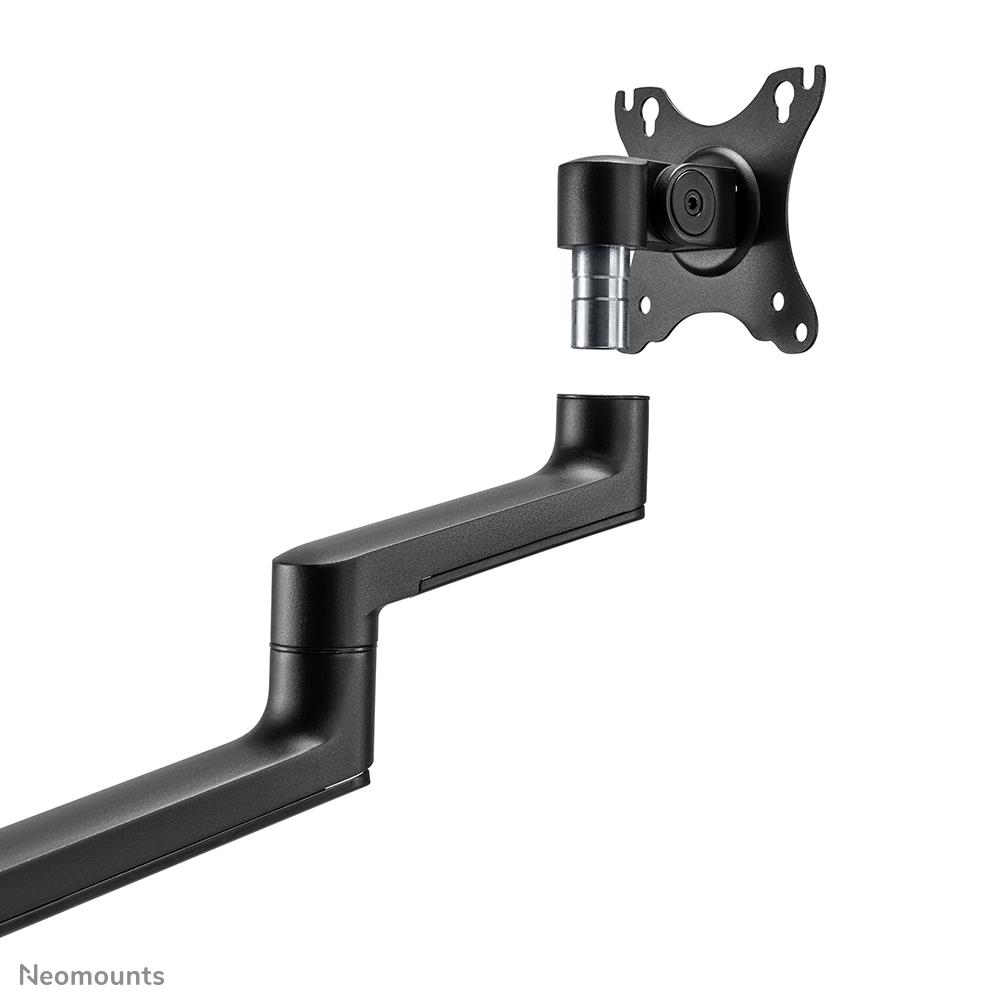

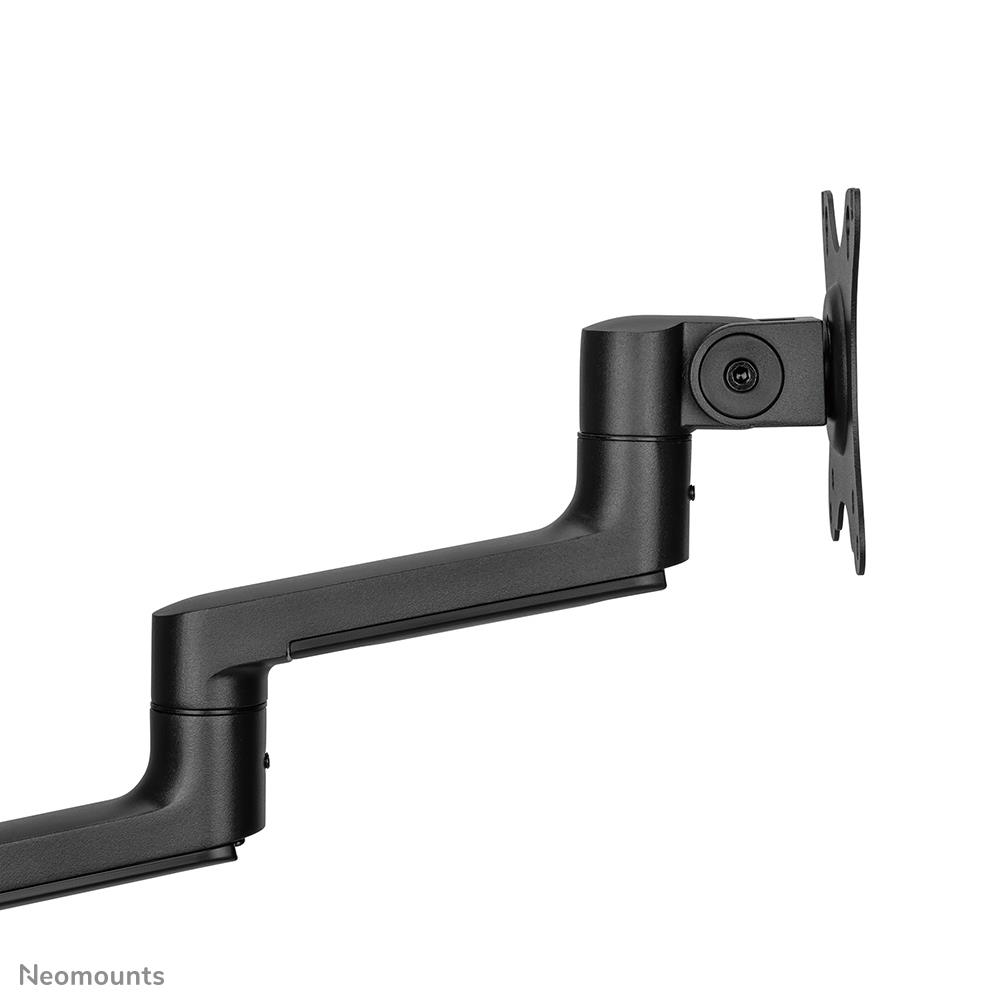

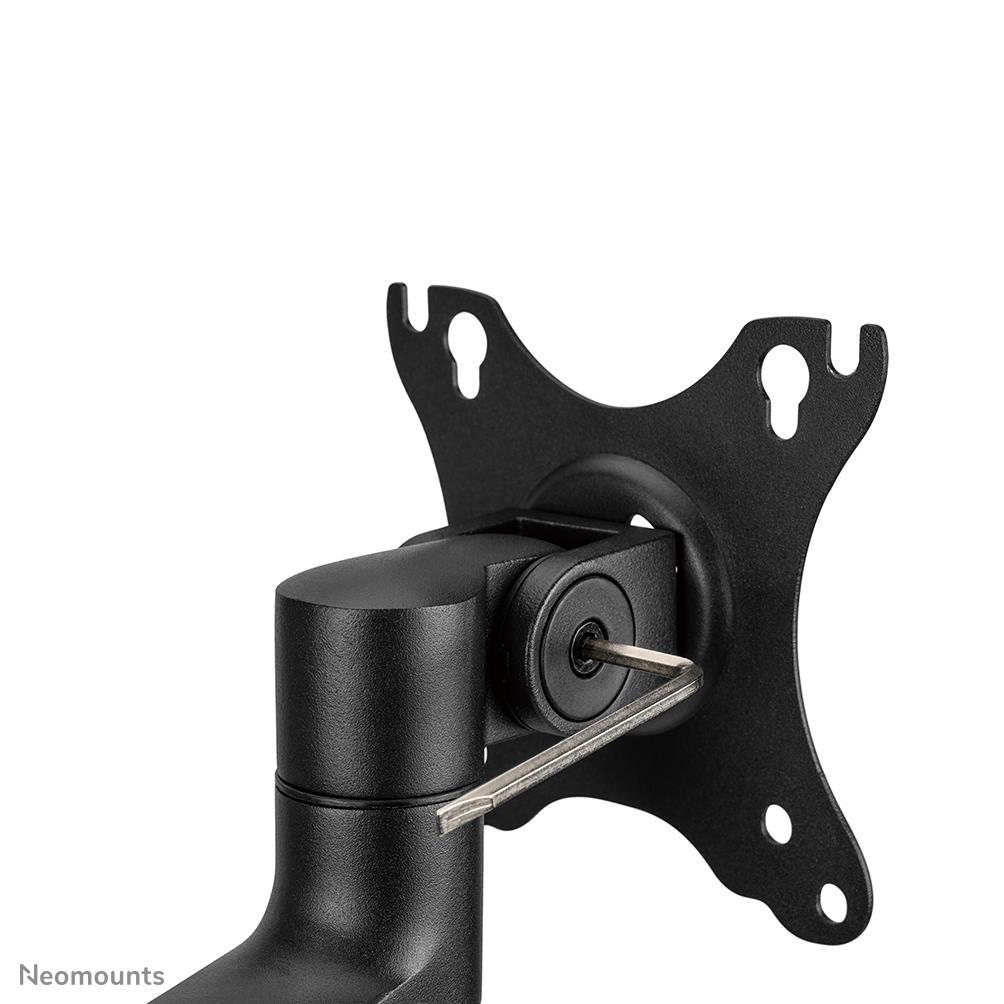

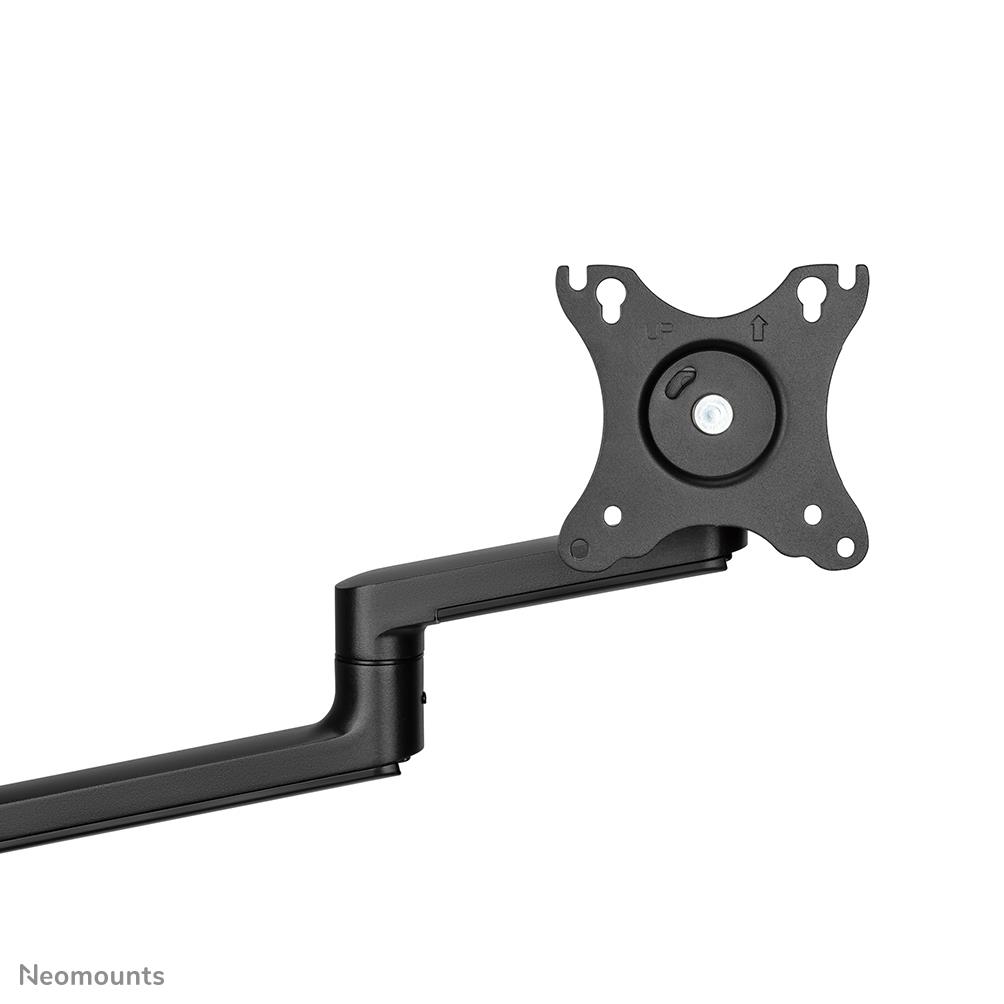

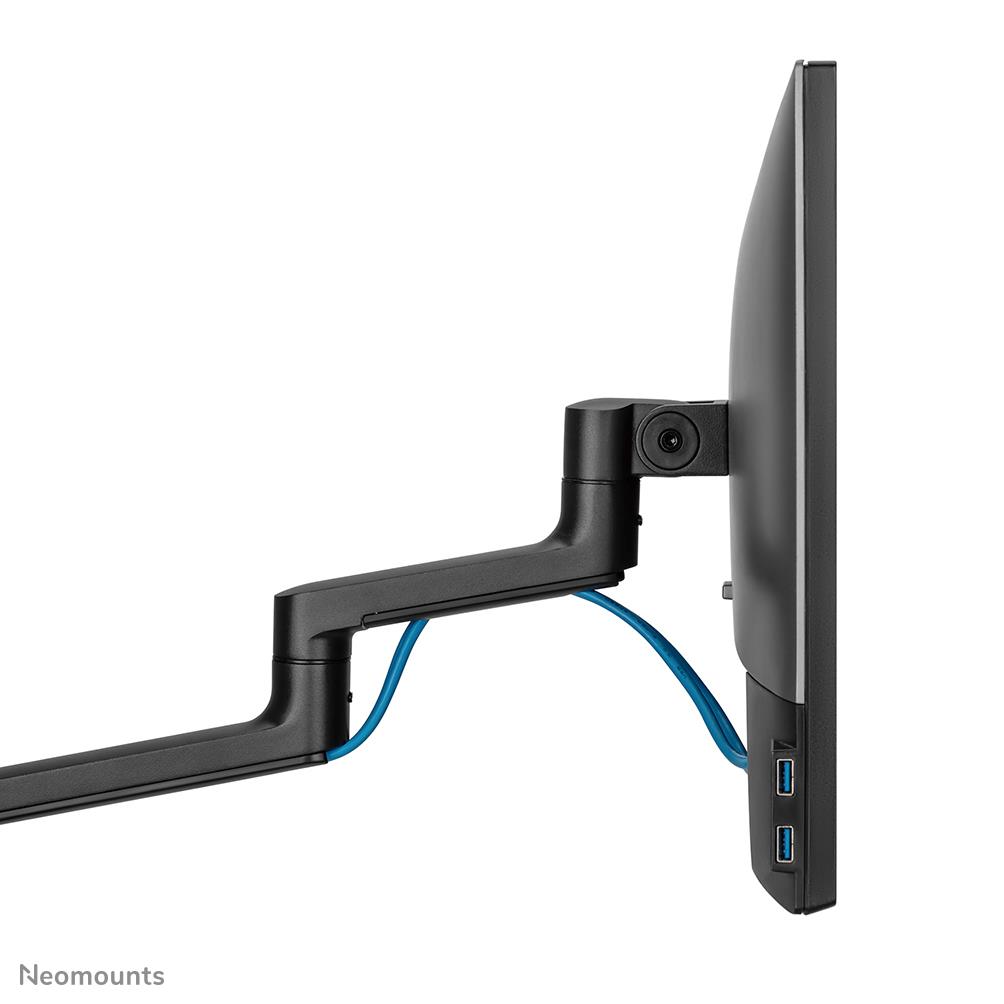

Due to the short T-Rex® upper arm of the NEXT Lite, only minimal depth is required when placed near a wall or separation panel. This allows the screens to be positioned further away from the user which is better for the eyes and also leaves more space for good ergonomic working posture. The smart internal cable management system ensures orderly routing of the cables. The DS60-425BL2 is suitable for screens that meet VESA hole pattern 75×75 or 100×100 mm. Neomounts offers various optional VESA adapter plates for deviating hole patterns. The DS60-425BL2 is equipped with an Easy-release VESA system for easy installation and comes with both desk clamp and grommet.
The packaging of the NEXT Lite is 100% plastic free and entirely made from cardboard and paper.
Specifikacijos
| Vendor Homepage | https://www.neomounts.com/default.asp?pageid=44&artdetail=DS60-425BL2 |
|---|---|
| Category Code | MAS |
| Unit Box Height | 0.105 |
| Unit Box Length | 0.44 |
| Unit Box Width | 0.21 |

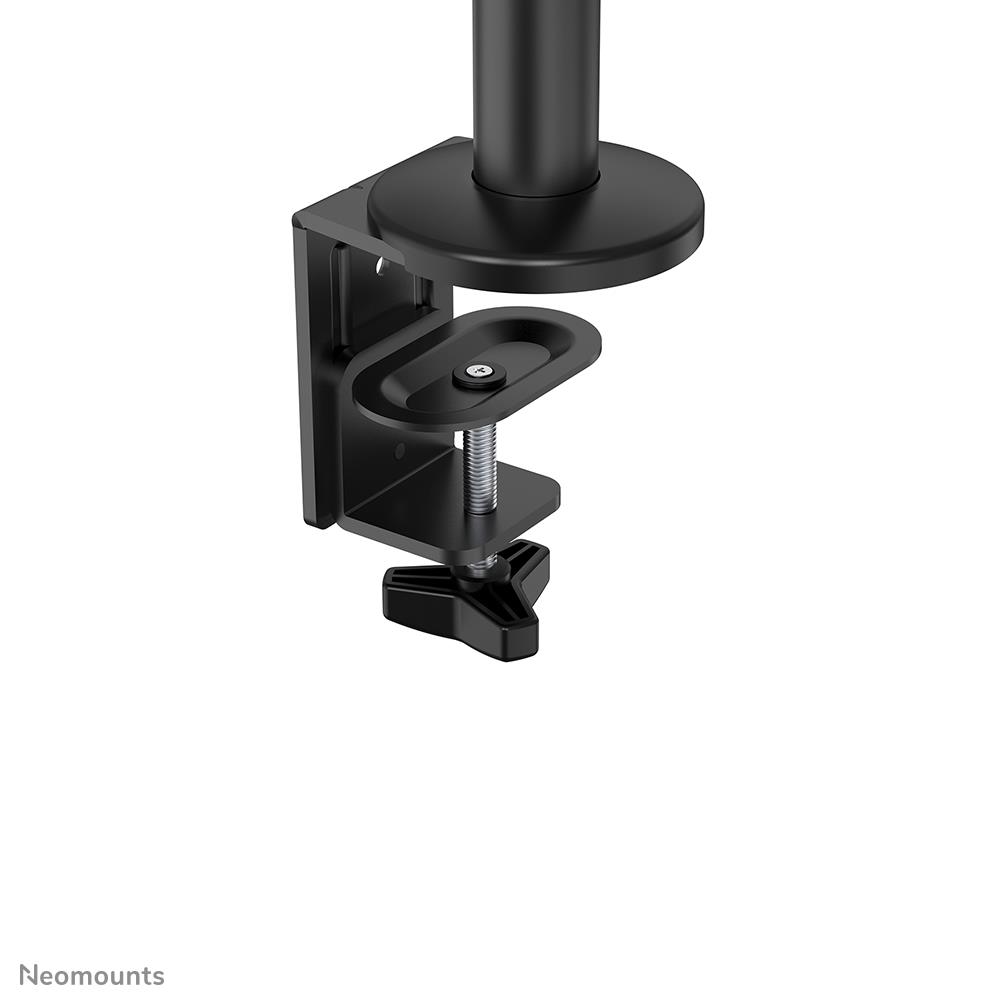

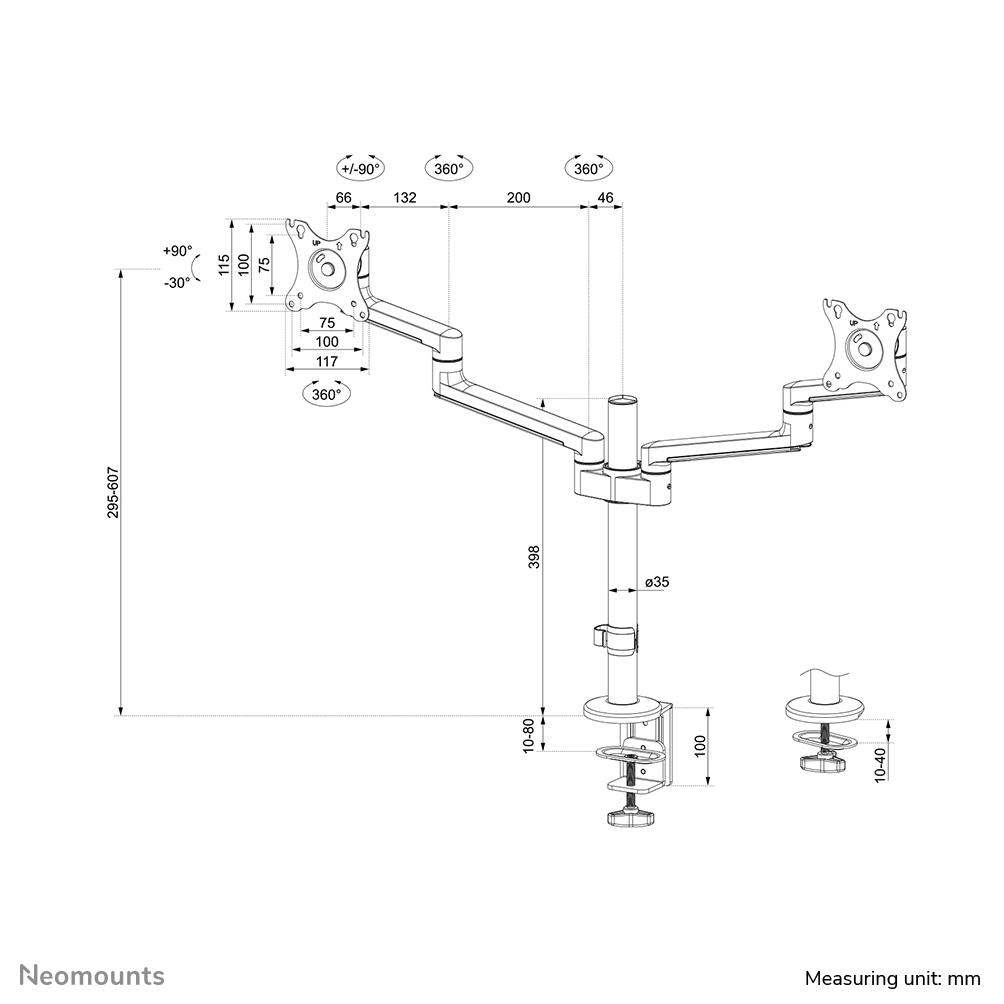

| Clamp mount desk thickness (max) | 80 mm |
| Desk thickness (max) | 80 mm |
| Desk thickness (min) | 10 mm |
| Distance to the wall (max) | 460 mm |
| Distance to the wall (min) | 128 mm |
| Grommet mount desk thickness (max) | 40 mm |
| Maximum screen size | 27 " |
| Maximum VESA mount | 100 x 100 mm |
| Maximum weight capacity | 8 kg |
| Maximum weight capacity (per display) | 8 kg |
| Minimum screen size | 17 " |
| Minimum VESA mount | 75 x 75 mm |
| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Number of displays supported | 2 |
| Panel mounting interface | 100 x 100/75 x 75 mm |
| Adjustable depth | Yes |
| Angle of rotation | 360 ° |
| Cable management | Yes |
| Depth adjustment range | 66 – 398 mm |
| Feet | Yes |
| Feet colour | Black |
| Height adjustment | Yes |
| Height adjustment range | 295 – 607 mm |
| Height adjustment type | Manual |
| Swivel angle range | -90 – 90 ° |
| Swivelling | Yes |
| Tilt angle range | -30 – 90 ° |
| Width adjustment | 332 mm |
| Accepts padlock | No |
| Housing material | Steel |

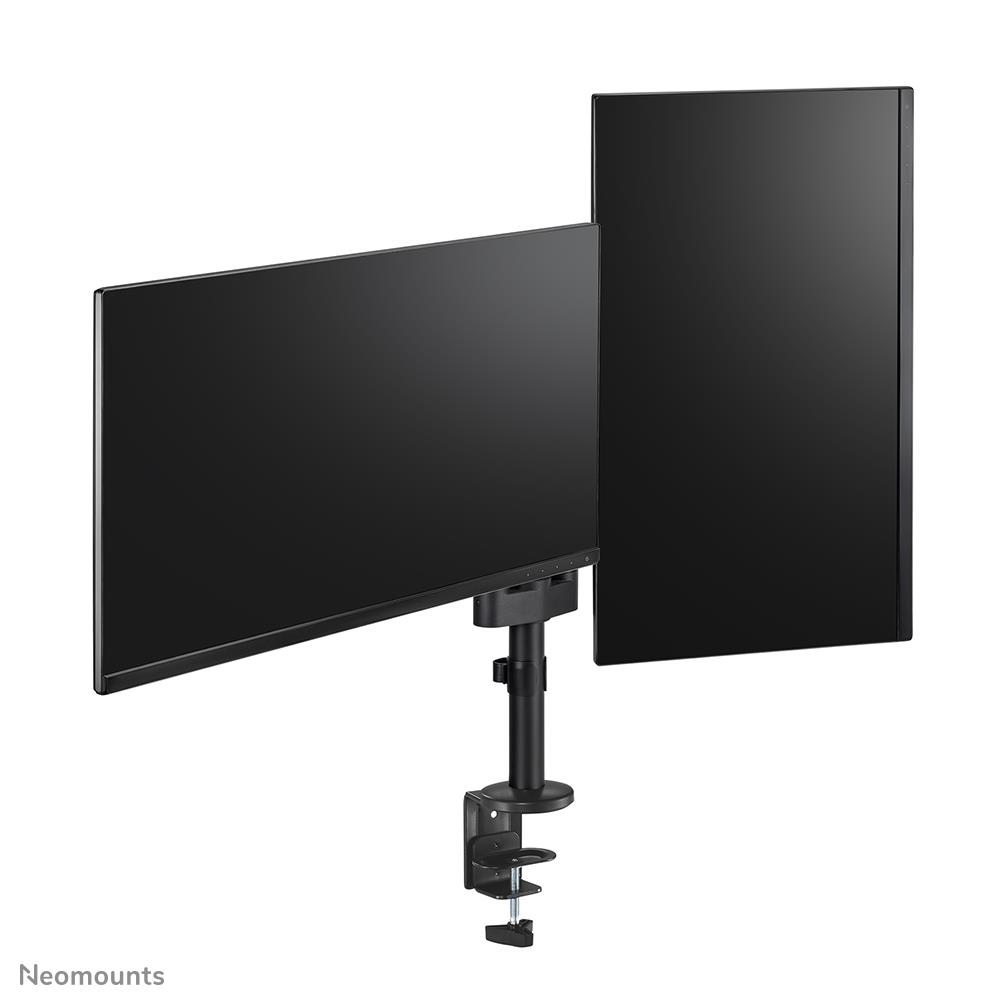

| Orientation | Landscape/Portrait |
| Product colour | Black |
| Depth | 460 mm |
| Height | 763 mm |
| Weight | 3780 g |
| Width | 888 mm |
| Package depth | 105 mm |
| Package height | 440 mm |
| Package net weight | 4600 g |
| Package weight | 4600 g |
| Package width | 210 mm |
| Quantity per pack | 1 pc(s) |
| Clamp included | Yes |
| VESA mount included | Yes |
| Width adjustment range | 0 – 332 mm |
| Country of origin | China |
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 18400 g |
| Master (outer) case height | 455 mm |
| Master (outer) case length | 435 mm |
| Master (outer) case net weight | 15100 g |
| Master (outer) case width | 220 mm |
| Products per master (outer) case | 4 pc(s) |
| Products per pallet (EU) | 84 pc(s) |
| Model | DS60-425BL2 |
| Units per Shipping Box | 4 |
| Unit Calculated Volume | 0.01139 cubm |
| Unit Calculated Weight | 4.58 kg |
