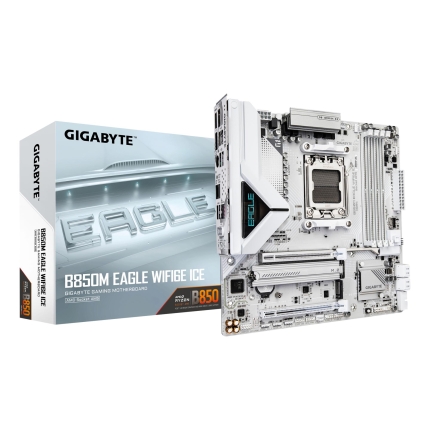

Mainboard GIGABYTE AMD B850 SAM5 Micro-ATX Memory DDR5 Memory slots 4 B850MEAGLEWF6EICE
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $40
-
DHL Courier delivery
DHL courier will deliver to the specified address
1-2 Days
From $40
152.18 €
Neturime
Neturime
Description
Compatible processor series
AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Wi-Fi standards
802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
Bundled software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
- X3D Turbo Mode: Unleash new era gaming performance
- DDR5 OC up to 8200MT/s, dual Channel DDR5
- AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
- Digital twin 8+2+2 phases VRM solution
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click: M.2 heatsinks with screwless design
- Ultra-Fast Storage: 2*M.2 slots, including PCIe 5.0 x4
- Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
- Fast Networking: 2.5 GbE LAN & Wi-Fi 6E with directional Ultra-high gain antenna
GIGABYTE B850M EAGLE WIFI6E ICE Motherboard – AMD Ryzen 9000 Series CPUs, 8+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, Wi-Fi 6E, 2.5 GbE LAN, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E…
Specifikacijos
| Vendor Homepage | https://www.gigabyte.com/ |
|---|---|
| Category Code | MBA |
| Unit Box Height | 0.07 |
| Unit Box Length | 0.275 |
| Unit Box Width | 0.269 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Cooling type | Passive |
| Motherboard chipset | AMD B850 |
| Motherboard chipset family | AMD |
| Motherboard form factor | micro ATX |
| PC health monitoring | Fan/Temperature/Voltage/Water cooling |
| Power source type | ATX |
| Product colour | White |
| Windows operating systems supported | Windows 10 x64/Windows 11 x64 |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 256 GB |
| Maximum internal memory per slot | 64 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 8200 MHz |
| Supported memory clock speeds | 4400/4800/5200/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200 MHz |
| Supported memory types | DDR5-SDRAM |
| Unbuffered memory | Yes |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| RAID levels | 0/1/10/5 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2,PCI Express 4.0,PCI Express 5.0,SATA III |
| Supported storage drive types | HDD & SSD |
| HDCP | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| On-board graphics card | No |
| Parallel processing technology support | Not supported |
| 12V power connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Number of chassis fan connectors | 2 |
| Number of CPU fan connectors | 2 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of RGB LED pin headers | 4 |
| Number of SATA III connectors | 4 |
| Number of water pump connectors | 2 |
| RGB LED pin header | Yes |
| TPM connector | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Microphone in | Yes |
| PS/2 ports quantity | 1 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| WiFi-AP antenna jack | 2 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| WLAN controller model | Realtek RTL8852CE |
| 1st M.2 highest PCI Express generation | 5.0 |
| 1st M.2 largest key size | 25110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 22110 |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| ACPI version | 5.0 |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Battery weight | 3 g |
| Country of origin | China |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Package weight | 1900 g |
| Products per shipping (inner) case | 1 pc(s) |
| Depth | 244 mm |
| Height | 35 mm |
| Width | 244 mm |
| Antenna included | Yes |
| Batteries included | Yes |
| Screws included | Yes |
| Warranty period | 3 year(s) |
| Weight | 1700 g |
| Model | B850M EAGLE WIFI6E ICE |
| Units per Shipping Box | 8 |
| Unit Calculated Volume | 0.007341 cubm |
| Unit Calculated Weight | 1.46 kg |
