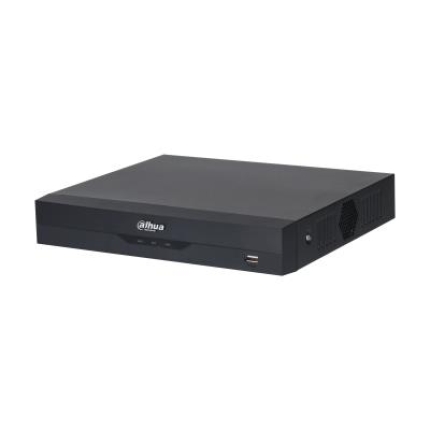

DVR 16CH HDCVI PENTABRID AI/XVR5116HS-I3 DAHUA
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $40
-
DHL Courier delivery
DHL courier will deliver to the specified address
1-2 Days
From $40
Original price was: 292.32 €.134.47 €Current price is: 134.47 €.
Liko 2
Liko 2
Description
Supported network protocols
HTTP, HTTPS, TCP / IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P
Certification
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN
50130, EN 55024
FCC: Part 15 Subpart B
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua’s advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
Dahua Technology, a world-leading video-centric smart IoT solution and service provider, debuted its new XVR series, XVR5000-I3 Series featuring max.full-channel SMD Plus to benefit customers from AI upgrade (The number of channels differs depending on the model. Please refer to the specifications below for information on the number of channels.). This series has been developed to reduce false-alarm rates and the cost of human surveillance, thus bringing great value to customers in search of products with accurate human/vehicle alarm to raise the security level of various indoor and outdoor facilities.
- H.265+/H.265 dual-stream video compression
- Supports Full-channel AI Coding
- Supports HDCVI/AHD/TVI/CVBS/IP video inputs
- Max 24 channels IP camera inputs, each channel up to 6MP; Max 128Mbps incoming bandwidth
- Up to 2 channels video stream (analog channel) Perimeter Protection
- Up to 16 channels video stream (analog channel) SMD Plus
- Up to 2 channels video stream (analog channel) human face recognition
- IoT & POS functionalities
Specifikacijos
| Vendor Homepage | https://www.dahuasecurity.com/products/All-Products/HDCVI-Recorders/WizSense-Series/I3-Series/5M-N/1080P-Series/XVR5116HS-I3 |
|---|---|
| Category Code | STD |
| Unit Box Height | 0.315 |
| Unit Box Length | 0.335 |
| Unit Box Width | 0.09 |
| Audio input | 1 RCA |
| Audio output | 1 RCA |
| BNC input ports | 16 |
| HDMI ports quantity | 1 |
| RS-485 ports | 1 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| Video in | HDCVI/AHD/TVI/CVBS/IP |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| HDD interface | SATA |
| Maximum HDD capacity | 16000 GB |
| Analog signal format system | NTSC/PAL |
| Audio formats supported | G.711 µ-law/G.711 A-law/PCM |
| Backup function | Yes |
| Bit rate | 32 Kbit/s |
| Channels quantity | 16 channels |
| Dual stream support | Yes |
| Maximum video resolution | 3840 x 2160 pixels |
| Operating system installed | Embedded LINUX |
| Product colour | Black |
| PTZ control | Yes |
| Rack capacity | 1U |
| Video capturing speed (NTSC) | 30 fps |
| Video capturing speed (PAL) | 25 fps |
| Video compression formats | H.264/H.264+/H.265/H.265+ |
| Video loss detection | Yes |
| Video motion detection | Yes |
| Video streaming | Yes |
| DC voltage | 12 V |
| Power supply type | DC |
| Depth | 237.4 mm |
| Height | 47.6 mm |
| Weight | 1170 g |
| Width | 260 mm |
| Package depth | 333 mm |
| Package height | 315 mm |
| Package width | 89 mm |
| Operating relative humidity (H-H) | 10 – 90 % |
| Operating temperature (T-T) | -10 – 55 °C |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.009497 cubm |
| Unit Calculated Weight | 1.54 kg |
