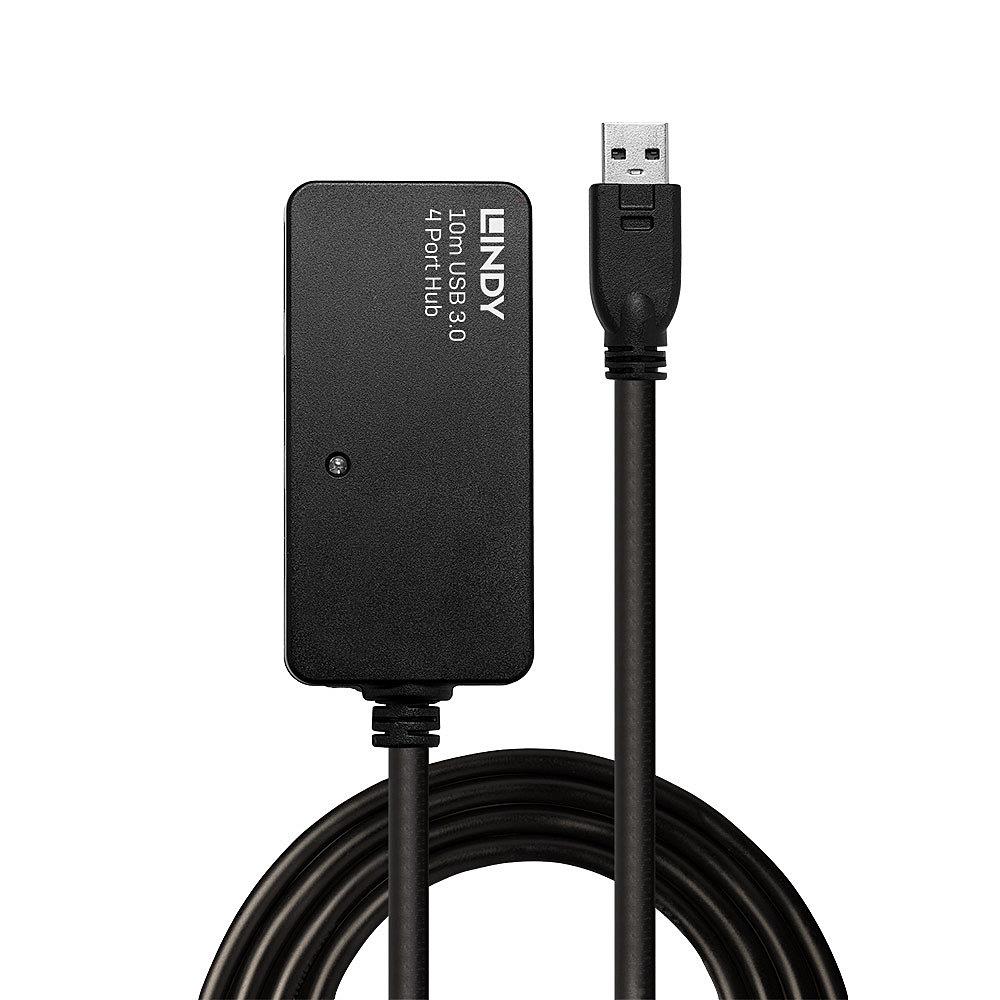

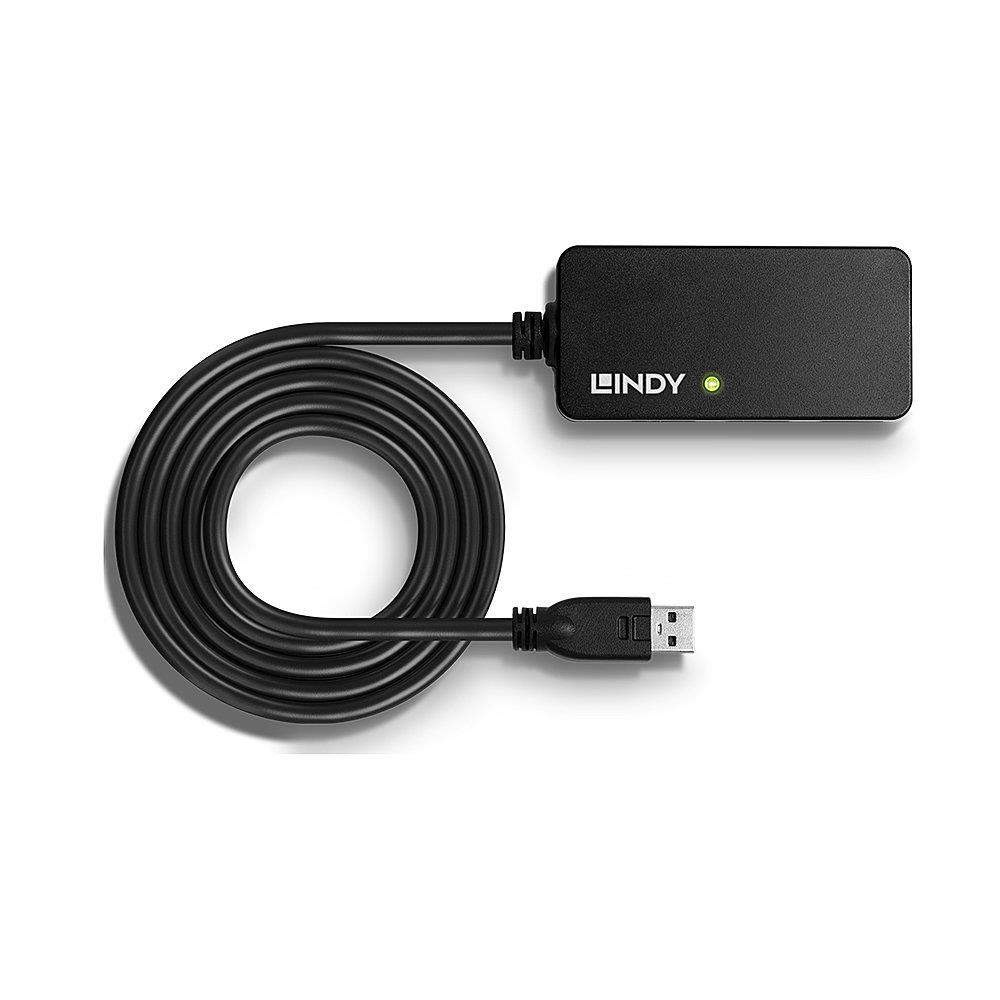

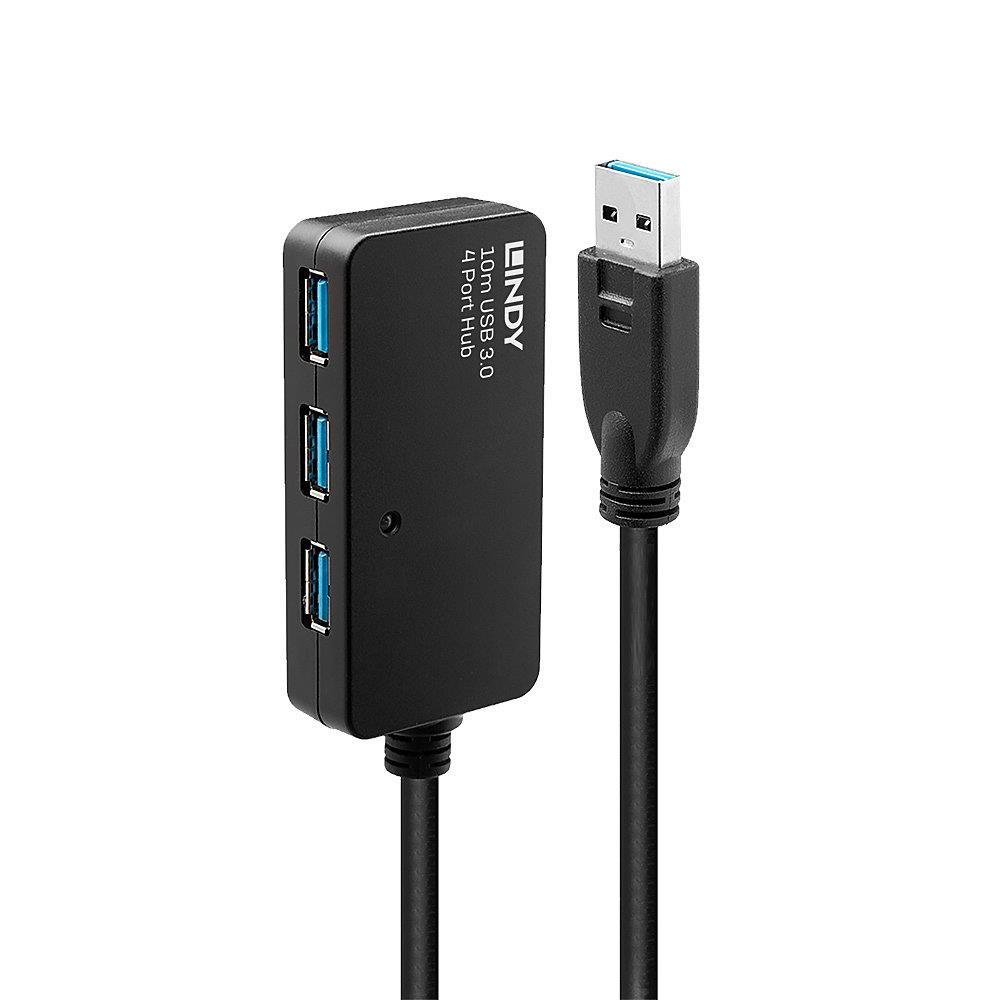

CABLE USB3 EXTENSION HUB 10M/ACTIVE 43159 LINDY

The Lindy USB Active Extension Hub Pro is a high-performance hub with active cable that allows access to four USB 3.0 SuperSpeed peripherals over long distances. With support for data transfer speeds of up to 5Gbps this extension hub is perfect for transferring large data volumes quickly and reliably.

This hub features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments.

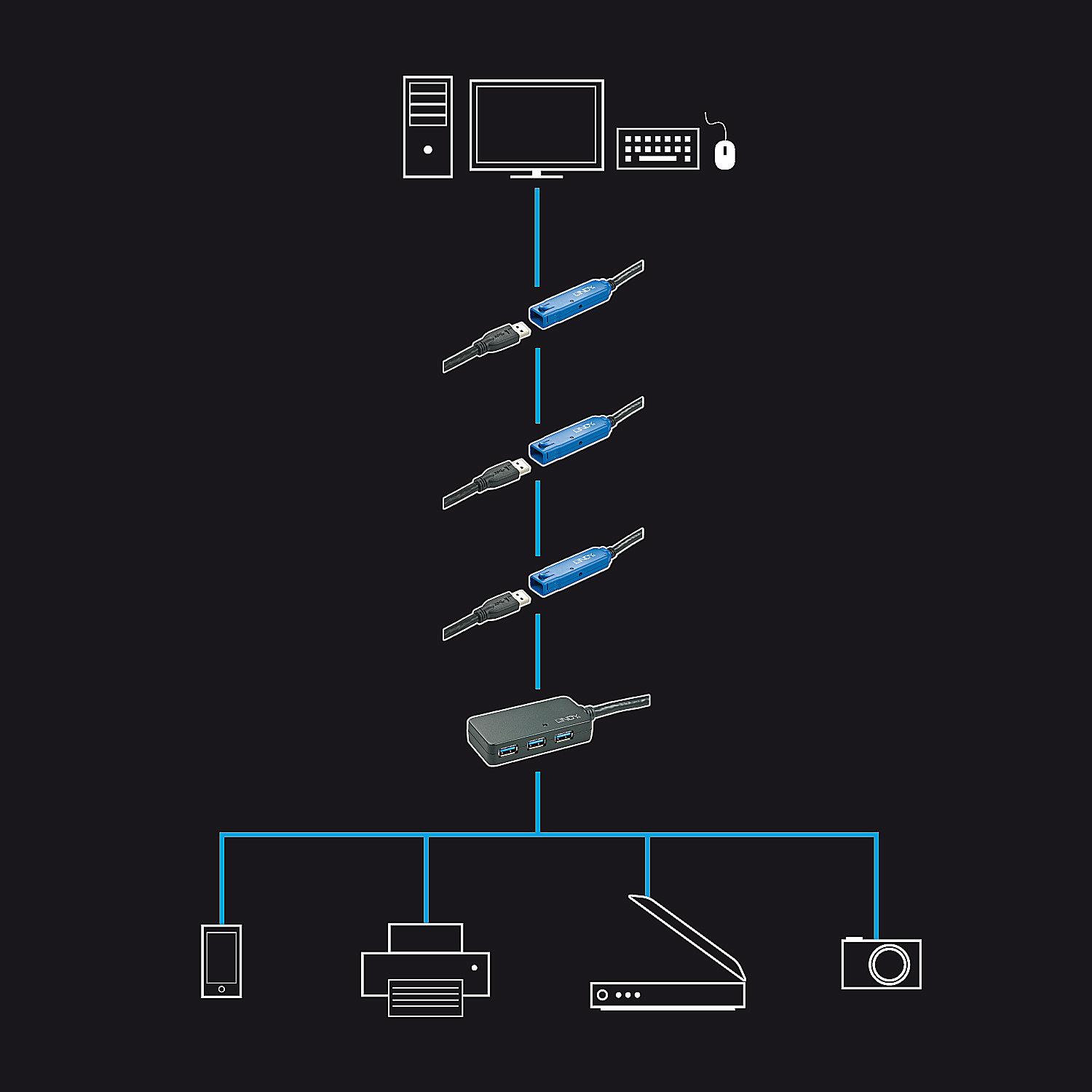

This 10m extension hub can be used on its own or as part of the Lindy USB 3.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and this Active Extension Pro hub. It enables the distribution of USB signals to up to 4 devices at distances of up to 40m (depending on the cable configurations used).

Using this hub as part of the USB 3.0 Active Extension System Pro

If you would like to use this hub as part of combined Lindy USB 3.0 Active Extension System Pro installation, please note the requirements below.

This Active Extension Hub Pro must be installed as the final part of the extension system.

The first unit connected to your computer must always be the USB 3.0 Active Extension Pro 8m (No. 43158) or 15m (No. 43229). Once the first cable is connected, you can cascade additional Extension System Pro cables to extend the distance up to a maximum of 40m.

The final part of the extension can be any cable or hub from the Extension System Pro range.

If you need to extend multiple devices or connect a USB device with high power requirements, you should use the 10m Hub Pro unit with its power supply as the final part of the extension.

Information about USB 3.0, 3.1 and 3.2

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

• High performance hub with active cable that provides an extended 10m connection between a computer and up to 4 USB 3.0 devices
• Can be used standalone or as part of the Lindy Active Extension System Pro to create bespoke extension systems of over 40m (depending on the cable configurations used)
• Supports the full USB 3.0 SuperSpeed bandwidth for speeds of 5Gbps
• Easy to use – connects to the deviceandrsquo;s existing USB cable (2m maximum)
• 2 year warranty

Lindy 10m USB 3.0 Active Extension Pro Hub. Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-A, Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A. Data transfer rate: 5000 Mbit/s, Product colour: Black, Housing material: Plastic. Power note: 3.5/1.35mm DC. Width: 80 mm, Depth: 38 mm, Height: 15 mm. Quantity per pack: 1 pc(s), Package width: 240 mm, Package depth: 200 mm
